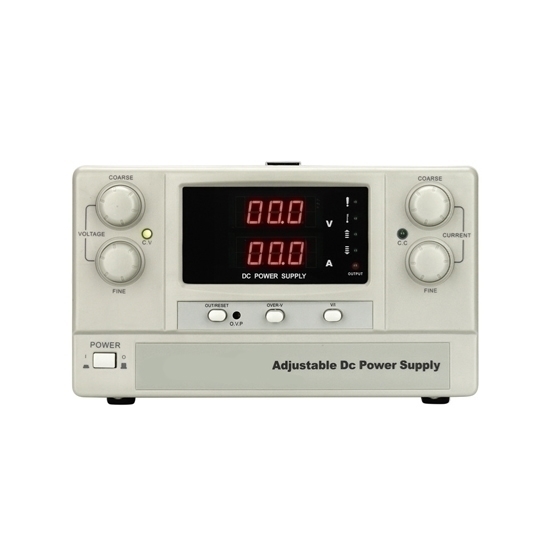

50A 100V 5000W Variable DC Power Supply

0 reviews • Write a review

from

$1,674.19

Ex Tax: $1,674.19

Stock: In Stock
Model: RDDLZ-VDCPS10050K
Weight: 1.00
SKU: RDDLZ-VDCPS10050K

Available Options

Short Description

Input Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

50A 100V variable DC power supply provides a reliable and adjustable power source for various applications. Whether in educational settings or professional labs, this variable DC power supply with adjustable voltage and current capabilities, coupled with digital control features, serves as a reliable and efficient power source for electronics experimentation and development.

Specification

Model	RDDLZ-JK10050K
Input Voltage	Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range	0-100V
Output Current Range	0-50A
Output Power	5000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-20℃ to + 70℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months

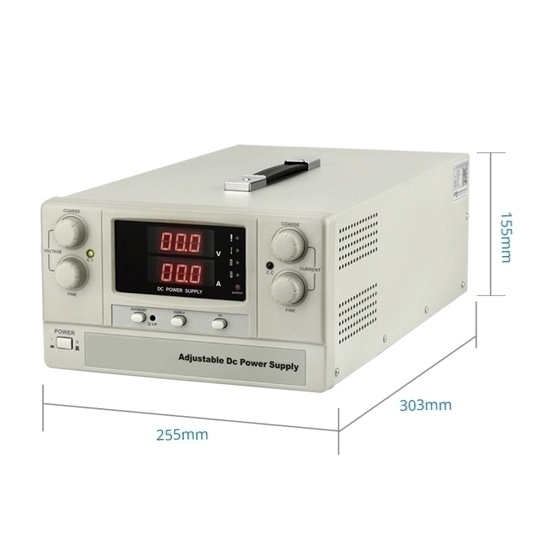

Size	303 (L) x 255 (W) x 155 (H) mm
Weight	13kg

Detail

Tips: What safety features should I look for in a variable DC power supply?

When selecting a variable DC power supply, prioritize safety features to ensure reliable operation and user protection. Look for overvoltage and overcurrent protection mechanisms to prevent damage to both the power supply and connected devices. Short circuit protection is crucial to avoid potential hazards. Ensure the power supply has a robust thermal management system, including overheating protection, to prevent accidents and component damage. A well-designed current-limiting feature adds an extra layer of protection. Additionally, opt for power supplies with clear and accurate voltage and current displays, enabling users to monitor and adjust settings with precision. Finally, certifications such as CE, UL, or equivalent ensure compliance with safety standards, assuring the product's overall quality and reliability. Always follow safety guidelines provided by the manufacturer for proper usage and maintenance.
