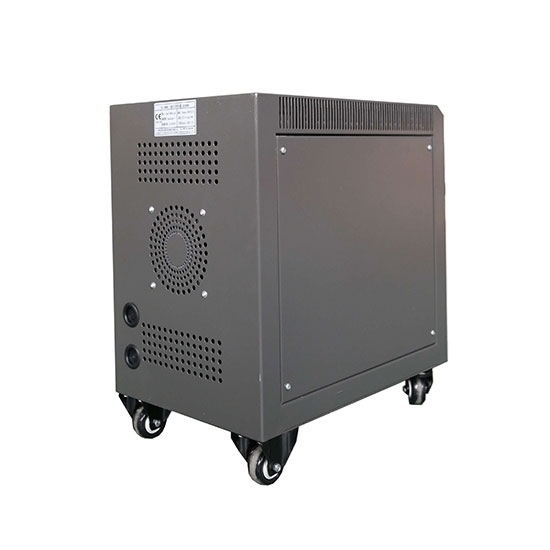

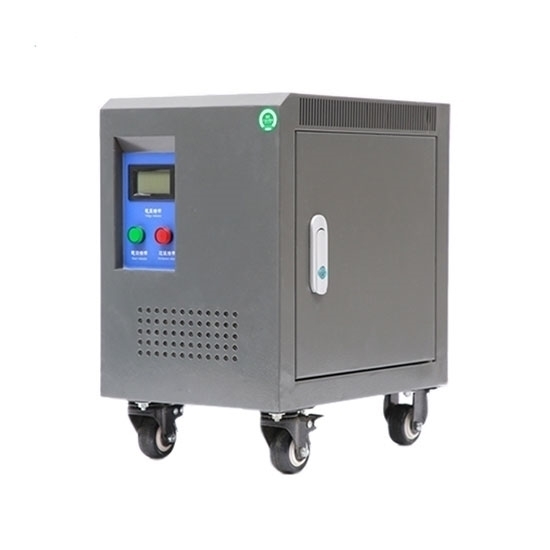

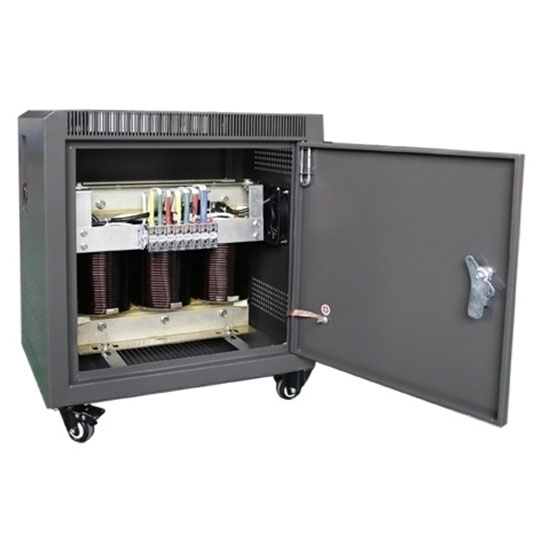

3kVA 220V To 120V/240V Split Phase Transformer

0 reviews • Write a review

from

$2,156.89

Ex Tax: $2,156.89

Stock: In Stock
Model: RDDLZ-T-DGS3kVA
Weight: 1.00
SKU: RDDLZ-T-DGS3kVA

Available Options

Winding Material

Primary Voltage (AC)

Transformer Type

With Movable Wheels

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low-cost transformer has a capacity of 3kVA, single phase 220V to split phase 120V/240V, used for for 50/ 60Hz AC circuit. IP20 protection grade enclosure makes the device suitable for indoor and outdoor applications.

3 kVA Single Phase to Split Phase Transformer Specifications

Model	RDDLZ-DGS3kVA
Phase	Single phase to split phase
Capacity	3 kVA
Primary Voltage	1 Phase / 2 phase 110, 120, 208, 220, 230, 240, 380, 415, 440, 460, 480,
Secondary Voltage	120V/240V AC（L1, L2, N, L+L=240V, L+N=120V）
Frequency	50/60Hz
Winding Material	Aluminum/Copper wire (Optional)
Work Efficiency	≥95%
Insulation Resistance	≥50 MΩ
Electrical Strength	2000V AC/1 min
Noise	≤35dB (1 meter)
Insulation Grade	Grade B (130℃), Grade F (155℃), Grade H (180℃)
Cooling Method	Natural or air cooling
Overload Capacity	Allow more than 1.2 times rated load to work for up to 1 hour
Induced Overvoltage Withstand Test	125Hz/800V/min
Transformation Ratio	<3%
Air Carrying Current	<6%
Impedance Voltage	About 6%
Total Losses	10%
Certification	CE, ISO
Temperature	-15℃~+45℃
Humidity	≤90%RH, without condensation
Altitude	<2000m, non corrosive gas and conductive dust
Enclosure Protection Grade	IP20
Warranty	12 months
Weight of Aluminium Wire Transformer	Open type: 45kg Protected type: 63kg
Weight of Copper Wire Transformer	Open type: 48kg Protected type: 68kg

Single Phase to Split Phase Transformer Schematic Diagram

3 kVA Split Isolation Transformer Dimension (Unit: mm)

Aluminium Wire Transformer Size	Copper Wire Transformer Size
Open type: abc=240240260mm	Open type: abc=240230260mm
Mouting size: DE=180170mm (aperture: 20*10mm)	Mouting size: 180160mm (aperture: 2010mm)
Protected type: ABC=300440500mm	Protected type: ABC=380530560mm

Details

Tips: Working principle of rectifier transformer

The windings are composed of two independent wires of primary and secondary and share an iron core. The primary winding is connected to the AC power supply, and the alternating current flows in to generate magnetic potential. The magnetic flux flows in the closed iron core. Alternating current of the same frequency is induced in the secondary winding.

At the beginning of the transformer, the turns ratio of the secondary winding is equal to the voltage ratio. In order to obtain multiple output voltages, some transformers can have multiple secondary windings and taps.
