20kVA 440V To 120V/240V Split Phase Transformer

20kVA 440V To 120V/240V Split Phase Transformer
20kVA 440V To 120V/240V Split Phase Transformer
20kVA 440V To 120V/240V Split Phase Transformer
Free Shipping
20kVA 440V To 120V/240V Split Phase Transformer
20kVA 440V To 120V/240V Split Phase Transformer
20kVA 440V To 120V/240V Split Phase Transformer
20kVA 440V To 120V/240V Split Phase Transformer
0 reviews • Write a review
from
$6,298.76
Ex Tax: $6,298.76
  • Stock: In Stock
  • Model: RDDLZ-T-DGS20kVA
  • Weight: 1.00
  • SKU: RDDLZ-T-DGS20kVA

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

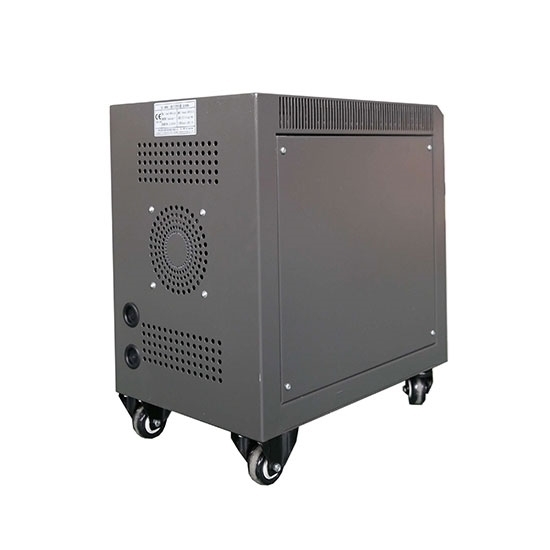

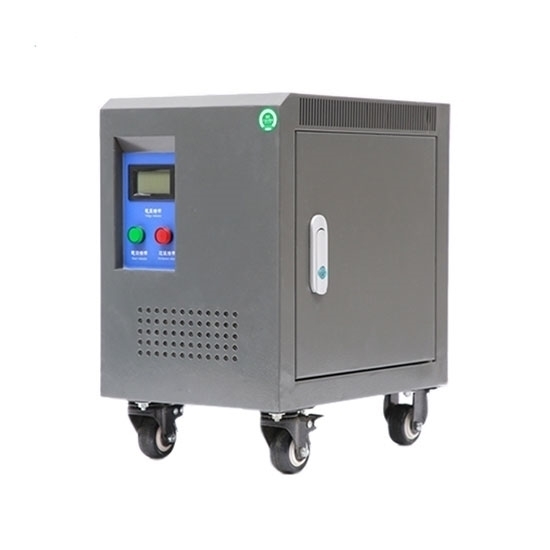

20kVA single phase to split phase transformer with wheels, frequency 50/60Hz, step down 440V input voltage to 120V/240V output voltage, frequency 50/60Hz, work efficiency up to 95%.

20 kVA Single Phase to Split Phase Transformer Specifications

ModelRDDLZ-DGS20kVA
PhaseSingle phase to split phase
Capacity20 kVA
Primary Voltage1 Phase / 2 phase 110, 120, 208, 220, 230, 240, 380, 415, 440, 460, 480,
Secondary Voltage120V/240V AC（L1, L2, N, L+L=240V, L+N=120V）
Frequency50/60Hz
Winding MaterialAluminum/Copper wire (Optional)
Work Efficiency≥95%
Insulation Resistance≥50 MΩ
Electrical Strength2000V AC/1 min
Noise≤35dB (1 meter)
Insulation GradeGrade B (130℃), Grade F (155℃), Grade H (180℃)
Cooling MethodNatural or air cooling
Overload CapacityAllow more than 1.2 times rated load to work for up to 1 hour
Induced Overvoltage Withstand Test125Hz/800V/min
Transformation Ratio<3%
Air Carrying Current<6%
Impedance VoltageAbout 6%
Total Losses10%
CertificationCE, ISO
Temperature-15℃~+45℃
Humidity≤90%RH, without condensation
Altitude<2000m, non corrosive gas and conductive dust
Enclosure Protection GradeIP20
Warranty12 months
Weight of Aluminium Wire TransformerOpen type: 145kg
Protected type: 180kg
Weight of Copper Wire TransformerOpen type: 150kg
Protected type: 185kg

20 kVA Single Phase to Split Phase Transformer Schematic Diagram

20 kVA Single Phase to Split Transformer Dimension (Unit: mm)

Aluminium Wire Transformer SizeCopper Wire Transformer Size
Open type: a*b*c=370*380*520mmOpen type: a*b*c=330*340*470mm
Mouting size: D*E=190*220mm (aperture: 20*10mm)Mouting size: 280*185mm (aperture: 20*10mm)
Protected type: A*B*C=455*660*710mmProtected type: A*B*C=420*610*610mm



Details

Tips: The difference between no-load and load transformer

The main difference between no-load operation and load operation of the transformer is mainly reflected in the secondary line state. The secondary line of the transformer load operation is connected to the load, and the generated power is large.

The transformer uses the principle of electromagnetic induction to change the AC voltage. The main components are the primary coil, the secondary coil and the iron core (magnetic core). In electrical equipment and wireless circuits, it is often used for voltage rise and fall, impedance matching, and safety isolation. When the transformer is running at no load; only no-load loss, that is, iron loss and stray, is consumed, which is 6% of the total capacity, and when the load is running, it is no-load loss + load loss, that is, copper loss, which is the total consumption of the transformer.
