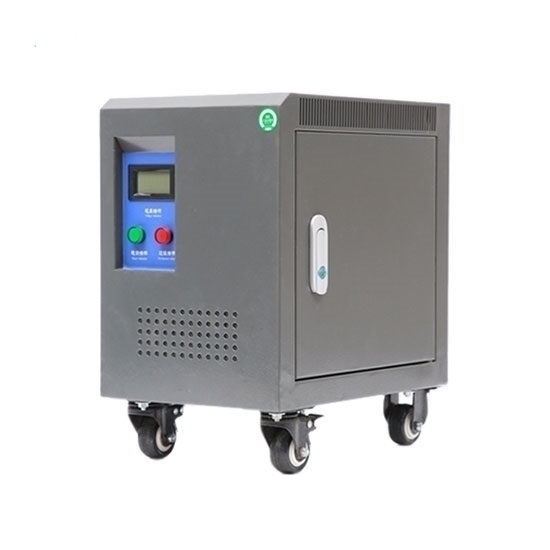

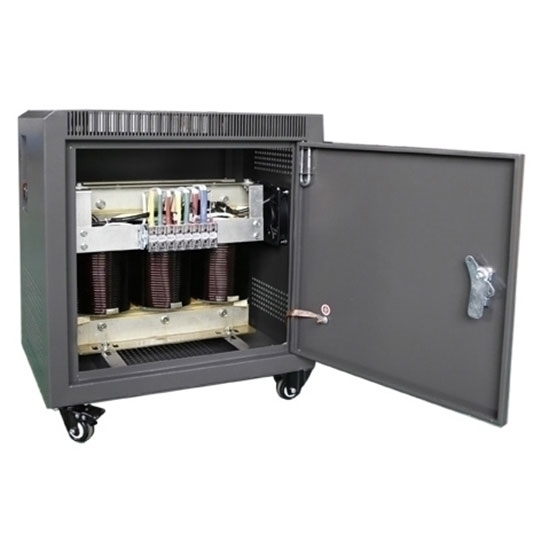

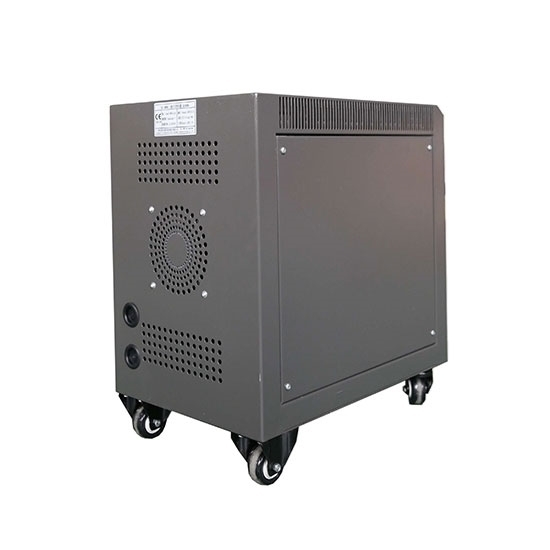

Affordable price 10kVA 1 phase to split phase transformer with wheels, convert 380V to 120V/240V, aluminum and copper wire are optional, warranty 12 months.

10 kVA Single Phase to Split Phase Transformer Specifications

10 kVA Single Phase to Split Phase Transformer Schematic Diagram

10 kVA Single Phase to Split Transformer Dimension (Unit: mm)

Details

Tips: What are the factors that affect the life of the transformer?

In the whole process of transformer production, transformer manufacturers strictly control the moisture of products. General transformers need to go through the whole process of dewatering of gasoline liquid phase, vacuum pump, oil pump, and hot oil circulation, but there will still be a certain amount of moisture. The moisture in the transformer is accumulated in the insulating cardboard and transformer oil, which will reduce the electrical performance of the transformer oil and the insulating cardboard, and reduce the electrical compressive strength. The penetration compressive strength will drop sharply with the increase of moisture content. In the middle and late stages of operation, especially during the maintenance of the hanging cover, it is inevitable to invade a part of the moisture, and the transformer oil will also dissolve the moisture after thermal aging. The moisture in the body will continue to react with the insulating layer material and accelerate the aging of the insulating layer material.

Transformer oil aging will affect the life of the transformer
Transformer oil can slowly age under the effects of electricity, heat and oxygen. After the aging of the transformer oil, the level of vapor digestion, absorption and convergence of the transformer oil will increase, resulting in an increase in vapor and viscosity in the oil. The increase in vapor will reduce the breakdown field strength of the oil insulation layer, and the increase in operating viscosity will affect The heat convection and heat conduction capabilities of the transformer's circulating system cannot be integrated into the transformer's operating standards, resulting in a bad cycle, which will seriously affect the operating life of the transformer, and even lead to safety accidents of machinery and equipment.

Transformer oil aging will affect the life of the transformer
Wind, heavy rain, snow, hail, earthquake disasters and other external factors will also affect the service life of the transformer. It should be prevented in many ways according to the specific situation, and the power will be cut off when necessary.
