2 Hp AC Servo Motor, 10 Nm/25 Nm, 1500 Rpm

0 reviews • Write a review

from

$708.56

Ex Tax: $708.56

Stock: In Stock
Model: ATO130ST-M10015
Weight: 1.00
SKU: ATO130ST-M10015

Available Options

Short Description

With Matched Controller

Absolute Encoder

Motor Cable & Encoder Cable

Motor Encoder Type

With Brake

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

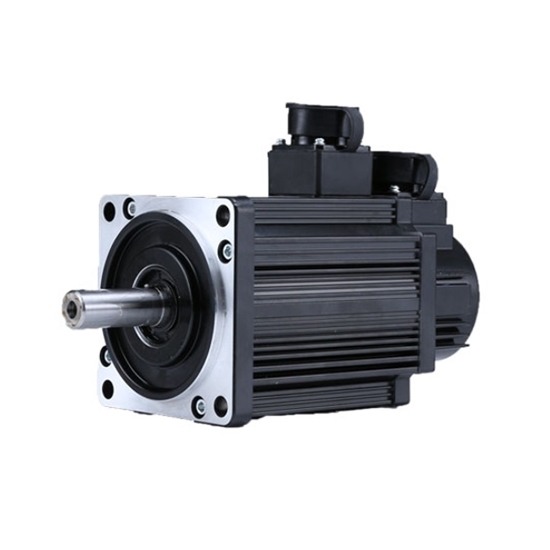

1500 watt AC servo motor, brushless design, 6 amps, 10 Nm rated torque, 1500 rpm low speed control. Powerful industrial servo motor is 130mm square flange size, with brakes options available.

Note: For 2 hp (1.5 kW) 10 Nm AC Servo Motor, RDDLZ Provides upgraded models with more powerful features. Please go to the page https://www.ato.com/1-5-kw-ac-servo-motor.

Specification

Basics	Model	RDDLZ130ST-M10015
	Matched Drive Model	RDDLZMG-1000 (Click it to the product page)
	Square Flange Size	130 mm
	Rated Power	2 hp
	Rated Voltage	three phase 220V AC
	Rated Current	6 A
	Rated Speed	1500 rpm
	Rated Torque	10 Nm
	Peak Torque	25 Nm
	Weight	10 Kg
	Length	213 mm
Technical Parameters	Voltage Constant	103 V/ 1000r/ min
	Torque Coefficient	1.67 N.m/ A
	Torque Inertia	1.94 x 10^-3 Kg.M²
	Line-Line Resistance	1.5 Ω
	Line-Line Inductance	4.37 mH
	Electrical Time-Constant	2.91 ms
	Encoder Line Number	2500 PPR
	Absolute Encoder	17 bit, 23 bit (Tamagawa brand)
	Insulation Class	Class B
	Safety Class	IP65
Environment	Temperature	-20℃ ~ +40℃
Environment	Humidity	<90%RH, (no dewing)

Dimension (unit: mm)

L (without brake): 213mm, L (with brake): 283mm

Details

Winding and Encoder Connection

1. For servo motor winding

Motor Winding Plug	Winding Lead	U	V	W	PE
Motor Winding Plug	Socket Number	2	3	4	1

2. For incremental encoder

Incremental Encoder Socket (15 Pin)	Signal Definition	5V	0V	B	Z-	U	Z	U-	A	V	W	V-	A-	B-	W-	PE
Incremental Encoder Socket (15 Pin)	Socket Number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1

3. For absolute encoder

Absolute Encoder Socket (7 Pin)	Signal Definition	E-	E+	SD-	0V	SD+	5V	PE
Absolute Encoder Socket (7 Pin)	Socket Number	2	3	4	5	6	7	1
