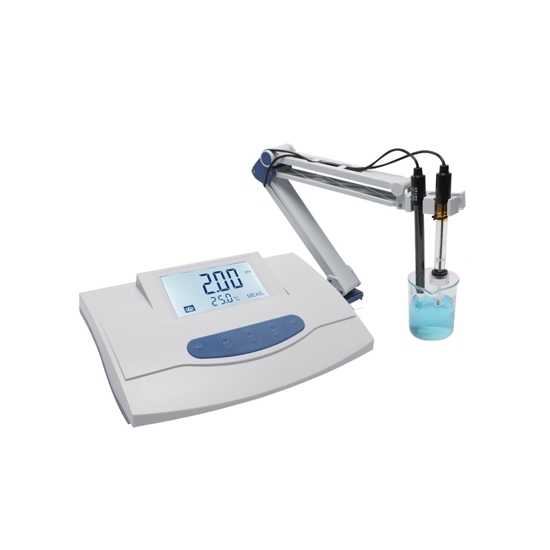

Benchtop Sodium Ion Meter

0 reviews • Write a review

from

$1,016.19

Ex Tax: $1,016.19

Stock: In Stock
Model: RDDLZ-PHION-DWS51
Weight: 1.00
SKU: RDDLZ-PHION-DWS51

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

When the ISE generates a voltage proportional to the sodium ion concentration, the ion meter then converts this voltage into a concentration reading, providing accurate and reliable results. Benchtop sodium ion meters are widely used in various scientific and industrial applications, including environmental monitoring, food and beverage analysis, and medical research.

Specification

Model	RDDLZ-ION-DWS-51
Level	0.05
Measuring Range	pNa: (0.00~9.00) pNa
Measuring Range	Na⁺:(2.3x10^-2~2.3x10⁷)μg/L
Temperature of Test Solution	(0~50)°C
Electronic Unit Accuracy	pNa: 0.02 pNa
Electronic Unit Accuracy	Conversion error of pNa and Na⁺: +3% reading
Accuracy of Meter	≤+0.05pNa
Input Current of Electronic Unit	≤5x10^-12A
Input Impedance of Electronic Unit	≥5x10¹¹Ω
Error of Temperature Compensation	±0.03 pNa
Repeatability Error of Electronic Unit	≤0.01 pNa
Repeatability Error of Meter	≤0.03 pH
Repeatability of Electronic Unit	≤0.02 pNa/3h
Power Supply	AC (220±22)V, (50±1) Hz
Dimension	290x210x95mm
Weight	1.5kg
Normal Working Conditions	a) Ambient temperature: (0~40)°C b) Relative humidity:≤85% c) Power supply: DC power adapter (9V DC) d) There is no vibration which affects performance nearby e) There is no corrosive gas nearby f) There is no magnetic interference except field
Standard Electrode	RDDLZ-6801-01 Sodium ISE
Standard Electrode	RDDLZ-6802-01 Reference Electrode
Standard Electrode Measurement Range	pNa: (0.00~9.00) pNa
Standard Electrode Measurement Range	Na⁺:(2.3x10^-2~2.3x10⁷)μg/L
Other Standard Accessories	Universal Power Cord, 1 Piece
	REX-3 Electrode Holder, 1 Piece
	Fuse φ 5*20 0.25A, 2 Pieces
	Dust Cover (Medium), 1 Piece
	Product Certificate, 1 Piece
	Product Instruction Manual, 1 Piece

Details

Application

Tips: Can benchtop sodium ion meter be only used for sodium ISE?

A benchtop sodium ion meter is primarily designed for measuring sodium ion concentrations using an ion-selective electrode (ISE). While it is optimized for accurate and precise sodium ion measurements, its functionality may extend to other ions depending on the specific meter model and available ion-selective electrodes. Some benchtop meters support interchangeable ion-selective electrodes, allowing users to measure concentrations of different ions by swapping electrodes. However, the accuracy and reliability of measurements for ions other than sodium may vary, and it is crucial to use the appropriate calibration standards and electrodes. In summary, while a benchtop sodium ion meter is specialized for sodium measurements, its versatility can be enhanced with compatible ion-selective electrodes, broadening its application to other ions within its technical specifications. Users should consult the instrument's documentation for guidance on ion compatibility and electrode interchangeability.
