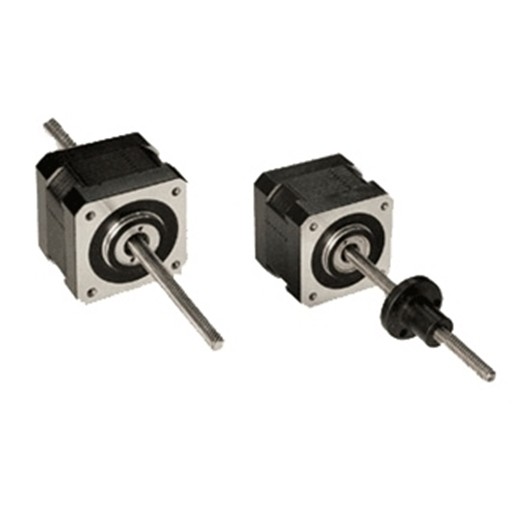

Nema 17 Stepper Motor Linear Actuator, 2 Phase, 2.8V, 1.33A

0 reviews • Write a review

from

$132.23

Ex Tax: $132.23

Stock: In Stock
Model: RDDLZ-STEPL-28133
Weight: 1.00
SKU: RDDLZ-STEPL-28133

Available Options

Short Description

Motor Type

Motor Screw Lead

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This 2.8V 1.33A 2-phase Nema 17 stepper motor linear actuators is ideal for applications requiring a combination of precise positioning, rapid motion and long life. Typical applications include X-Y tables, medical equipment, semiconductor handling, telecommunications equipment, valve control, and numerous other uses.

Stepper Motor Linear Actuator Specification

Model Type	External Shaft	Non-Captive Shaft
	42H33-1334AST	42H33-1334GTS
Weight	4 kg
Length	33 mm
Phase	2 phase
Step Angle	1.8°
Rated Voltage	2.8 V
Rated Current	1.33 A
Resistance	2.1 Ω
Holding Torque	30 Oz-in
Number of Leads	4
Rotor Inertia	35 g-cm²

Select Leadscrew

Choose your stepper motor linear actuator screw from one of the available options:

Screw Diameter		Lead		Travel Per 1.8 Step
(in)	(mm)	(in/rev)	(mm/rev)	(in/step)	(mm/step)
0.315	8	0.079	2	0.00039	0.01
0.315	8	0.157	4	0.00079	0.02
0.315	8	0.315	8	0.00157	0.04
Note: Screw of 8mm diameter is made of copper.

Stepper Motor Linear Actuator Dimension (Unit=mm)

1. Non-captive shaft style

L=33mm

2. External shaft style

L=33mm

Details

Tips: Linear screw stepper motor VS Ball screw rotating servo motor

Precision: Linear screw stepper motor reduces the problem of interpolation lagging because of simple transmission gear structure. The positioning accuracy, accuracy reappearance, absolute accuracy are higher than the ball screw rotary servo motor through position detection feedback control and it is easy to achieved. The positioning precision of the linear screw stepper motor can reach 0.1μm while the precision of ball screw rotating servo motor can reach a maximum of 2~5μm.
Speed: The speed of the linear stepper motor can reach 300m/min and the accelerated speed can reach 10g. The ball screw speed is 120m/min and the accelerated speed is 1.5g. Linear screw stepper motor has considerable advantages from the contrast of speed and the accelerated speed. The speed of linear screw stepper motor will be further improved after solving the heating problem successfully.
Service Life: There is installation clearance between the moving parts and the fixed parts and they have no contact. The linear screw stepper motor will not be worn out due to high speed reciprocating motion of the active cell. The motion positioning accuracy will keep unchanged for long-term use and it is suitable for high precision occasions. The ball screw rotating servo motor cannot guarantee the accuracy in high speed reciprocating motion because high speed friction will cause wear of the screw nut and affect the precision requirement for movement. That is the demand for high precision it cannot be met.
