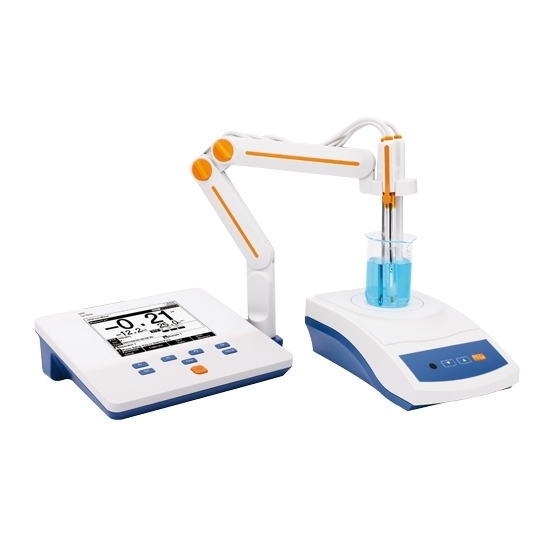

Benchtop pH/ion meter features a digital display, electrode input, and a user interface for easy calibration and data recording. It employs ion-selective electrodes (ISEs) for measuring specific ions such as fluoride, chloride, sodium, and more.

Specification

Model		RDDLZ-PHION-I300F
Parameters		pH/ISE/Temp.(mV/pX)
pH	Range	-2.00 to 20.00pH
	Resolution	0.1, 0.01pH
	Accuracy	±0.01 pH
	Calibration Points	Up to 5
	Standard Customization	Yes
	Standard Recognition	NIST, GB and DIN Buffers
	Slope Limit	Yes
mV/ORP	Range	-2000.00 to 2000.00mV
	Resolution	0.1, 0.01mV
	Accuracy	±0.1mV or ± 0.03% of Reading Whichever is Greater
pX	Range	-2.00 to 20.00pX
	Resolution	0.1, 0.01pX
	Accuracy	±0.01 pX
	Calibration Points	Up to 5
ISE	Range	1.000E to 9.999E+9
	Units	mol/L, mmol/L, g/L, mg/L, μg/L, ppb
	Resolution	Up to 4 Significant Digits
	Accuracy	±0.3%
	Calibration Points	Up to 5
Temperature	Range	-5 to 110ºC, 23 to 230 ºF
	Unit	ºC, ºF
	Resolution	0.1
	Relative Accuracy	±0.2
Measurement	Reading Mode	Auto Read (Fast, Medium, Slow), Timed, Continuous
	Reading Prompts	Reading, Stable, Locked
	Temp. Compensation	ATC, MTC
Data Management	Data Storage	500 Results Each
Data Management	GLP Features	Yes
Inputs	Conductivity with Temp. Probe	BNC(Q9)
Inputs	Temp. Probe	4-pin Aviation Connector
Outputs	USB	PC
Outputs	RS232	Printer
Display Options	Backlight	Yes
	Auto Shutdown	1~60 min, Off
	IP Rating	IP54
	Date and Time	Yes
General	Power	AC Adapter, 100-240V AC Input, DC9V Output
	Dimension	24219568mm
	Weight	0.9kg

Feature

The benchtop pH/Ion/ meter comes with a 5.7-inch color high contrast LCD touchscreen.
Multi-reading function allows auto-read, timed-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold function senses and locks the measurement endpoint.
Data Storage 500 sets for each parameter (GLP-compliant).
Support for USB or RS232 communication.
Reset function automatically resumes all settings back to factory default options.
IP54 waterproof.

1-5 points calibration with standard recognition.
Selectable pH buffer groups, including NIST, DIN, GB, USA.
Automatic electrode diagnosis with pH slope and offset display.

Ion

1-5 points calibration.
Selectable measurement units, including μg/L, mg/L, g/L, mmol/L, pX, ppm, etc.
Multi-measurement modes are supported, including Direct Reading mode.
Over 10 methods are built-in, including F^-, Cl^-, Br^-, I^-, NO₃^-, BF₄^-, NH₄⁺, K⁺, Na⁺, Ca²⁺, Cu²⁺, Pb²⁺, Ag⁺ and etc., user-defined method is supported.

Details

Application

Tips: Difference between portable and benchtop ion/pH meters

Portable ion/pH meters are handheld devices designed for on-the-go use, offering flexibility and mobility. They are compact, lightweight, and battery-operated, making them suitable for field measurements. Portable meters are ideal for situations where samples cannot be brought to a laboratory.

On the other hand, benchtop ion/pH meters are larger, stationary instruments designed for laboratory settings. They typically offer higher precision and advanced features, making them suitable for detailed analysis and research. Benchtop meters are often equipped with a larger display, more extensive data storage capabilities, and can be connected to other laboratory equipment.

While portable meters prioritize convenience and portability, benchtop meters prioritize accuracy and functionality for more controlled laboratory environments. The choice between them depends on the specific needs of the user, considering factors such as the intended application, sample volume, and required level of precision.
