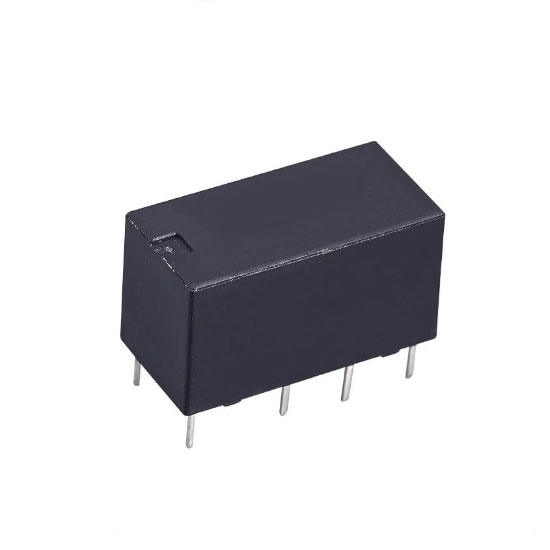

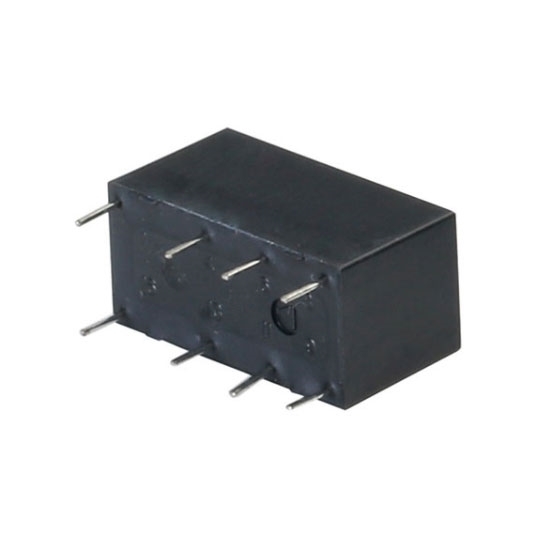

6V DC Signal Relay, DPDT, 2A

0 reviews • Write a review

from

$18.28

Ex Tax: $18.28

Stock: In Stock
Model: RDDLZ-SR-W32DC6V
Weight: 1.00
SKU: RDDLZ-SR-W32DC6V

Available Options

Short Description

Coil Power

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Signal relay adopts copper coil and silver alloy contacts, strong conductivity and longer life span.

Features

2A contact switching capability.
High sensitive type, coil power is 150mW/200 mW.
Standard DIP construction terminal.
Ultra – small type, gold – plated contacts.
Suit for complete machine wave soldering and integral cleaning process.
Main applications: Electric power protection, automation, communication.

Specification

Model			RDDLZ-SR-FH32DC6V
Type			Standard Type	Sensitive Type
Coil Parameters (23℃)	Nominal Voltage		DC 6V
	Nominal Power		200mW	150mW
	Pick-up Voltage		≤4.50VDC	≤3.75VDC
	Drop-out Voltage		≥0.30VDC	≥0.25VDC
	Rated Current		33.3mA	25mA
	Coil Resistance		180Ω	240Ω
	Max Voltage		DC 7.8V	DC 7.8V
Contact Parameters	Contact Form		DPDT (2C)
	Contact Resistance (Initial)		≤100mΩ (6VDC 1A)
	Contact Material		AgNi + Gold Plating
Rated Value	Rated Load (Resistance Load)		1A 125VAC
			2A 30VDC
	Max. Switching Voltage		250VAC30VDC
	Max. Switching Current		2A
	Max. Switching Capacity		125VA/60W
	Min. Allowing Load		10mV 10μA
Electrical Performance	Insulation Resistance (Initial)		1000mΩ (500VDC)
	Dielectric Strength (Initial)	Between Open Contacts	750VAC, 1 min
		Between Coil & Contacts	1500VAC, 1 min
	Operate Time		≤5ms
	Release Time		≤5ms
Mechanical Performance	Shock Resistance	Functional	98m/s²(10g)
		Destructive	980m/s²(100g)
	Vibration Resistance		10Hz ~ 55Hz 1.5mm DA
Endurance	Mechanical		1 x 10⁷ops
	Electrical		1A 125VAC 1 x 10⁵ops (ON/OFF=1s/9s)
			2A 30VDC 1 x 10⁵ops (ON/OFF=1s/9s)
Operate Condition	Ambient Temperature		-40℃ ~ 85℃
	Humidity		5% to 90%
Termination			PCB (DIP Encapsulation)
Unit Weight			5g
Construction			Plastic Sealed

Note: In order to maintain the initial performance parameters of the signal relay, please be careful not to drop it.

Dimension

Units: mm

Performance curves

Tips: What is the function of the signal relay coil?

The function of the signal relay is that as long as a certain voltage is applied to both ends of the coil, a certain current will flow through it, thus producing electromagnetic effect. The armature will overcome the tension of the return spring and attract to the iron core under the action of electromagnetic force attraction, driving the moving contact of the armature and the static contact (normally open contact) to attract. However, the function of the coil is to make the coil charged through the input voltage to adsorb or bounce off the relevant contact point, in order to achieve mechanical opening or breaking another set of circuits, so as to achieve the desired output. Therefore the coil is the main component of the signal relay and plays an important role of electric energy into mechanical energy to achieve control. Since little current passes through the coil, the current or voltage controlled by the contacts is high, this will achieve the purpose of controlling large current and high voltage with small current or small voltage. When the signal relay coil is power off, the electromagnetic suction will disappear, and the armature will return to the original position in the spring reaction force, so that the moving contact and the original static contact (normally closed contact) attract. In this way, with suction and release, it will achieve the purpose of conducting and cutting in the circuit.
