Explosion-proof Temperature And Humidity Sensor, 4-20mA/RS485

0 reviews • Write a review

from

$476.52

Ex Tax: $476.52

Stock: In Stock
Model: RDDLZ-TAHS-EP
Weight: 1.00
SKU: RDDLZ-TAHS-EP

Available Options

Short Description

Output Signal

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

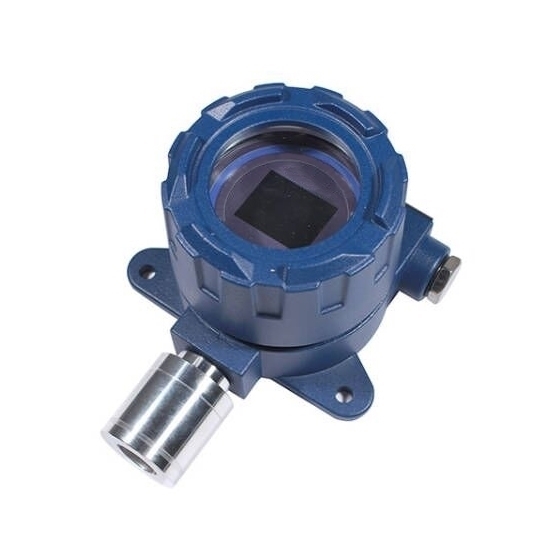

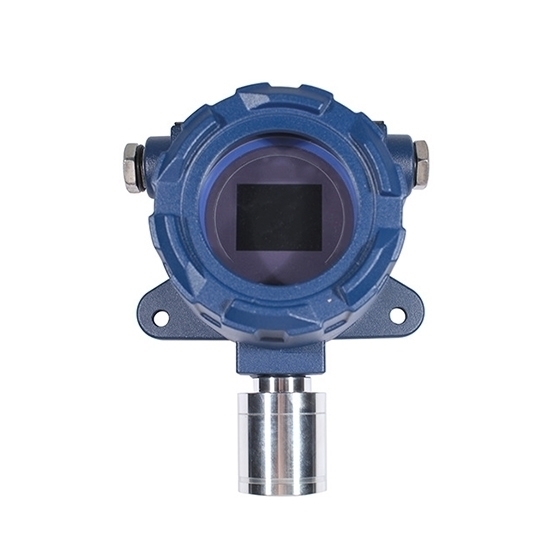

High precision explosion-proof temperature and humidity sensor has the advantages of anti-impact and anti-aging. The external mounting hole is easy to install, which makes the response speed of the temperature and humidity sensor fast.

Specifications

Model	RDDLZ-ME-WS-GB
Power Supply	10-30V DC
Resolution	Temperature: 0.1℃; Humidity: 0.1%RH
Accuracy	Temperature: ±0.2℃ (at 20℃)
Accuracy	Humidity: ±2%RH (10%RH-80%RH); ±3%RH (0%RH～10%RH; 80%RH～100%RH) (at 20℃)
Measurement Range	Temperature: -40℃～80℃; -20℃～60℃ (with Display)
Measurement Range	Humidity: 0%RH～100%RH
Response Time	<200mA
LCD Refresh Rate	<1.2s
Output Mode	4-20mA (Included Two Signal: Humidity+Temp, 5 Wire); RS485
Installation Method	Wall-mounted, Fixed on the Wall
Enclosure/Protection Level	Cast aluminum, IP66 (Without Probe)
Explosion-Proof Mark	Exd IIC T6 GB
Electromagnetic Compatibility Standard	EN 61000-6-1; EN 61000-6-3; EN 61000-3-2; EN 61000-3-3

Dimension （Unit: mm)

Wiring

Tips: Precautions For Explosion-proof Temperature and Humidity Sensor Use

To turn the screw on the top cover, press the screw with a screwdriver and then turn the screw.
When connecting terminals, do not strip the cables too long, and do not expose the copper wires directly inside the product to avoid short-circuit risks.
Disconnect the power supply before connecting the circuit.
Do not touch internal components directly with hands or metal objects.
After the installation is complete, check the screws on the cover and whether the waterproof connector is locked. The wire diameter must be 4-8mm.
5 minutes after switching on the power supply, the calibration operation will be carried out. Otherwise, the data output will not be accurate.
