Duct Temperature Humidity Sensor/Transmitter With Display, 4-20mA

0 reviews • Write a review

from

$153.25

Ex Tax: $153.25

Stock: In Stock
Model: RDDLZ-TAHT-AF3020A
Weight: 1.00
SKU: RDDLZ-TAHT-AF3020A

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

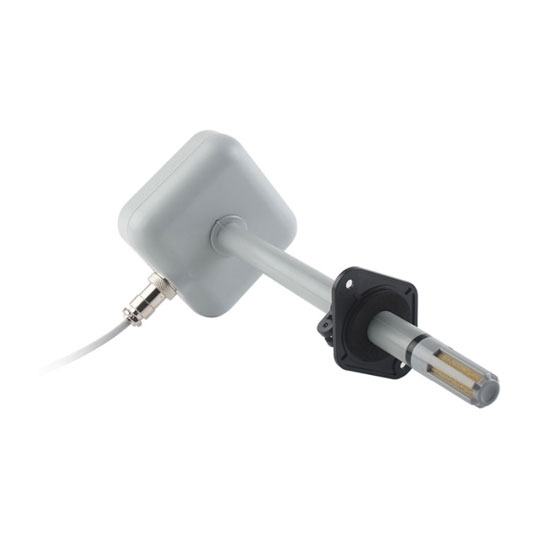

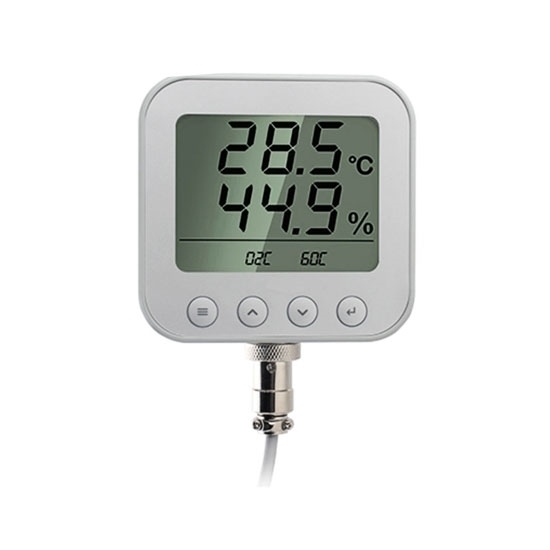

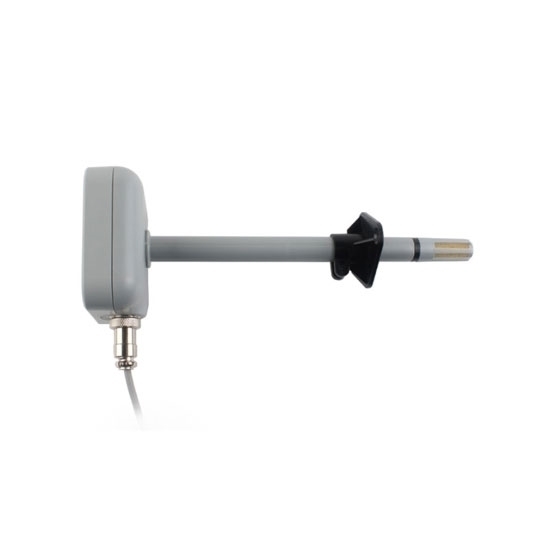

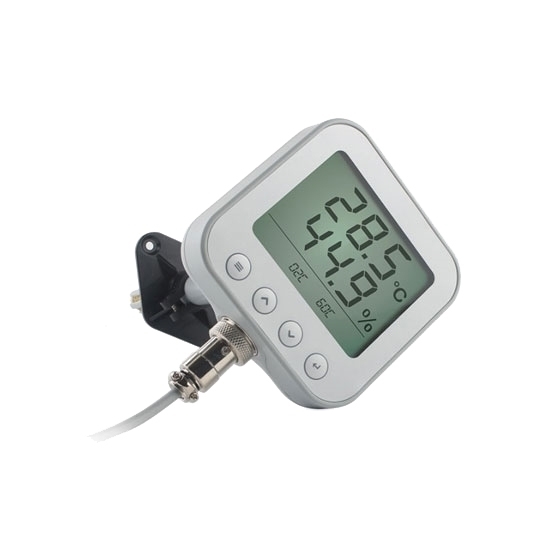

Temperature and humidity transmitter with LCD display adopts digital temp and humidity sensor AM2305, and mounts in duct without air leakage.

Application: Temperature and humidity transmitter is widely used in meteorology, tobacco, chemicals, medical and health, food industry and other occasions that need air temperature and humidity measurement and control.

Specification

Model	RDDLZ-TAHT-AF3020A
Weight	130g
Dimension (LWH)	2458533mm
Output signal	4-20mA
Supply voltage	DC 20-36V
Measuring range of relative humidity	0~99.9%RH
Measuring range of temperature	-40~+100℃
Accuracy of humidity	±2%RH
Accuracy of temperature	±0.3℃
Resolution	0.1℃/0.1%RH
Long-term stability	＜0.5%RH/year, ＜0.1℃/year
Power consumption	＜50mA
Response time	8s
Power-on time	3s
Housing material	PC
Working environment	Temperature: -40~80℃, humidity: 0~99.9% no condensation
Storage environment	Temperature: 0~60℃, humidity: ＜90%RH
Product packing list	1RDDLZ-TAHT-AF3020A with 50cm four-core shield wire, 1flange (duct mounted), 2*mounting screw
Wiring	Red: V+, black: GND, yellow: RH (humidity output 4-20mA), white: T (temperature output 4-20mA)

Dimensional drawing (unit: mm)

Details

Tips: Advantages of temperature and humidity sensor/transmitter

Temperature and humidity sensor/transmitter is extremely accurate, which can achieve accurate measurement and control of temperature and humidity, so as to ensure product quality, improve production efficiency, save energy, production safety and play other roles.
It can automatically alarm. When the measured value exceeds the upper limit alarm value, the temp and humidity monitoring machine will automatically alarm. In addition, you can also use the mobile phone remote real-time query temperature and humidity values, which is easy to achieve unattended.
Its shell is waterproof and anti-condensation, which can work normally in bad environment.
