150mm Displacement Measurement Sensor For Crusher

0 reviews • Write a review

from

$1,218.89

Ex Tax: $1,218.89

Stock: In Stock
Model: RDDLZ-MSR-A0150
Weight: 1.00
SKU: RDDLZ-MSR-A0150

Available Options

Output Signal

(1pc, 99 new)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

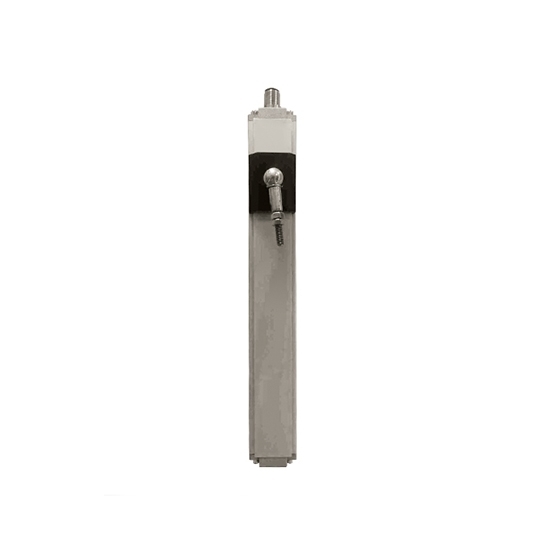

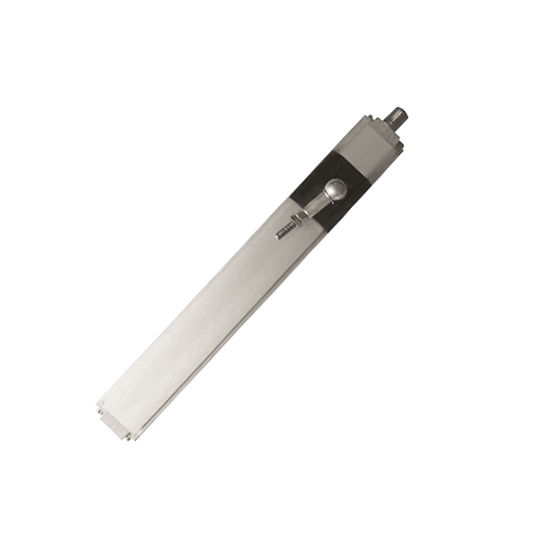

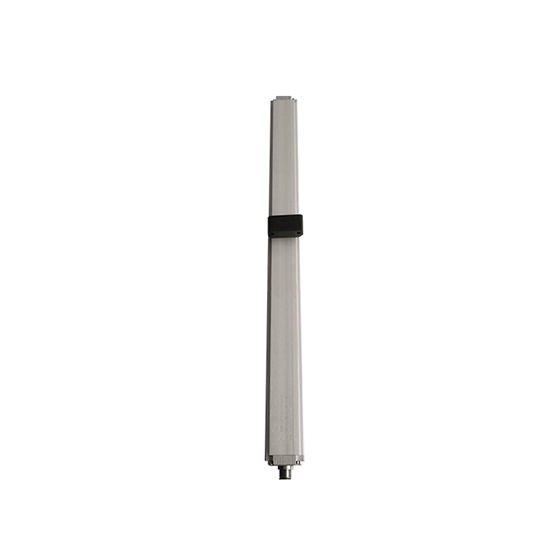

Non contact linear displacement sensor with measuring range 150mm has a aluminum alloy rail. Its electronic head parts are all built into aluminum alloy shell. Magnetostrictive displacement sensors have effective travel 50mm~35000mm, can bewidely used in all kinds of CNC machinery that always working in large vibration.

Specification:

Model	RDDLZ-CTH-A-150
Measuring Range	150mm
Output Signal	0~5V/ 0~10V/ 0~20mA/ 4~20mA (Optional)
Linearity	≤±0.05%FS
Repeatability	≤±0.005%FS
Resolution	Infinite resolution (depending on controller AD and power supply ripple)
Hysteresis	≤0.001%FS
Temperature Drift	≤0.001%FS
Operating Voltage	24VDC
Current Draw	5~16mA
Vibration	5g/10-2000Hz/IEC Standard IEC Standard 68-2-6
Temperature	-40°C~+85°C
Load Characteristics	Voltage output load resistance ≥3KΩ
Load Characteristics	Current output load resistance ≤1KΩ
Connection Type	Slide type or magnetic levitation type
Protection Class	IP65

Dimensional drawing (unit: mm):

Installation diagram:

Tips: Wiring of magnetostrictive sensor
Three lines of the linear displacement sensor cannot connected in a wrong way. Meanwhile, the power and output lines can't be exchanged. If connected incorrectly, large linear error will be caused. However, it is very difficult to control it. Further, the control accuracy will be poor. In addition, situations including jumping phenomenon of the display will emerge easily. If the display data jumps regularly or there is no display data, the technician should check whether the insulation of connecting wire is broken, and judge whether the short circuit of earthing is caused for it contacts the shell of the machine regularly.
