50 KVA 3 Phase Variac Transformer

0 reviews • Write a review

from

$5,462.78

Ex Tax: $5,462.78

Stock: In Stock
Model: RDDLZ-VVR-TH50
Weight: 1.00
SKU: RDDLZ-VVR-TH50

Available Options

Output Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy 3 phase variac transformer for laboratory, 50 kW, rated current 65A, input voltage 380V, output voltage 430V, it has the characteristics of strong electrical conductivity, low resistivity and strong thermal conductivity.

Specification

Model: RDDLZ-VVR-TH50
Rated Power: 50 kVA
Input Voltage: 380V
Output Voltage: 0~430V, 0~500V
Frequency: 50/60 Hz
Rated Full Offset Current: 65A
Insulation Resistance: ≥5 MΩ
Pressure Resistance: 2000 V/1min
Weight: 220 kg
Dimension: 345mm x 450mm x 1100mm
Certificate: CE

Wiring method

Installation and use of three-phase variac transformer should be noted: the wiring must be firmly pressed, there can be no loose.

Three-phase variac transformer is a three-phase four-wire system, the input side should be connected to the zero line, when using the regulator to adjust the voltage should be adjusted from 0V to high voltage, the output voltage is different corresponding to the load power is different.

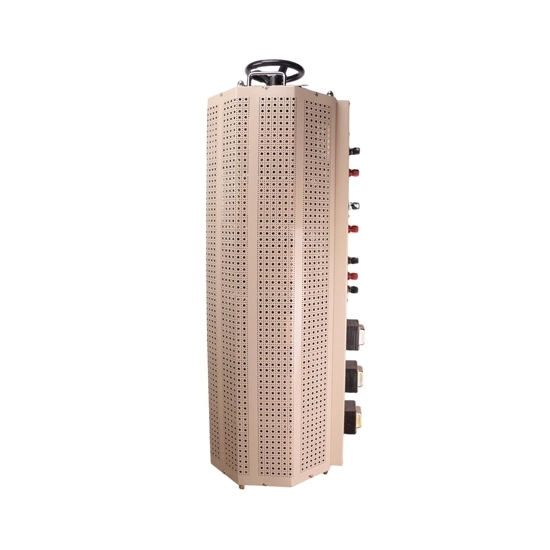

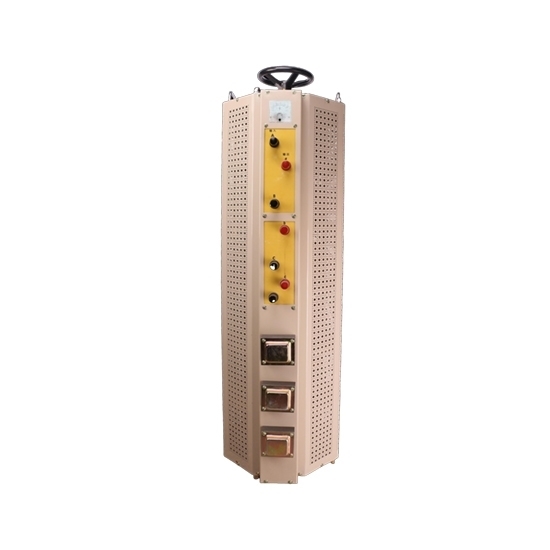

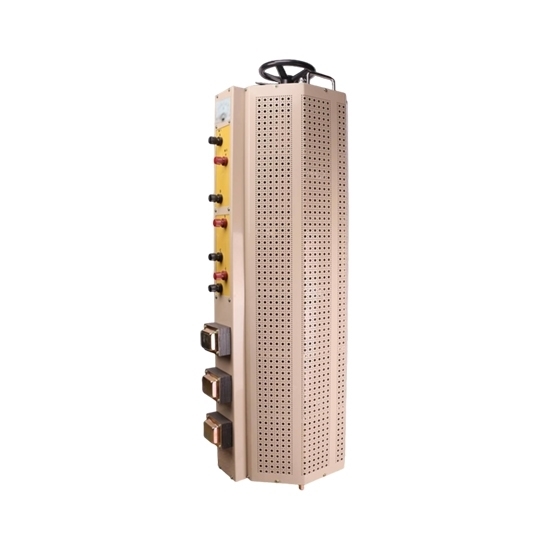

3 Phase 50 kVA Variable Voltage Transformer Details

Tips: 3 Phase variac transformer application fields

Electric furnace industry: annealing furnace, drying furnace, quenching furnace, sintering furnace, crucible furnace, tunnel furnace, melting furnace, box-type electric furnace, well-type electric furnace, melting electric furnace, rolling electric furnace, vacuum electric furnace, trolley electric furnace, quenching electric furnace, Aging electric furnace, bell type electric furnace, atmosphere electric furnace, oven experimental electric furnace, heat treatment, resistance furnace, vacuum furnace, mesh belt furnace, high temperature furnace, kiln, electric furnace.
Mechanical equipment: packaging machinery, injection molding machinery, heat shrinking machinery, extrusion machinery, food machinery, tempering equipment, plastic processing, infrared heating.
Glass industry: glass fiber, glass forming, glass melting, glass printing, float glass production line, annealing tank.
Automobile industry: spray drying, thermoforming.
Energy-saving lighting: tunnel lighting, street lighting, photography lighting, stage lighting.
Chemical industry: distillation evaporation, preheating system, pipeline heating, petrochemical industry, temperature compensation.
