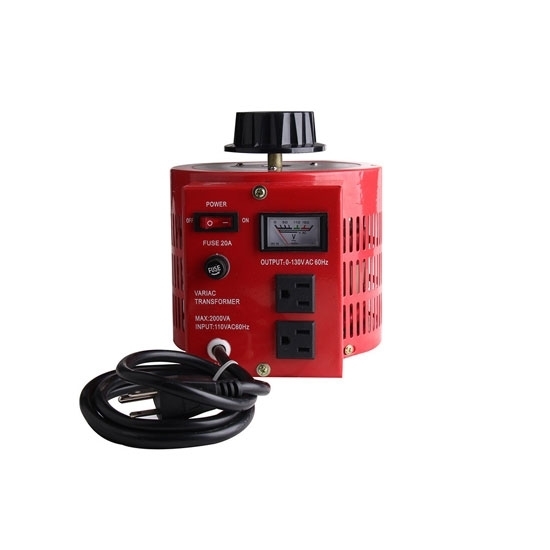

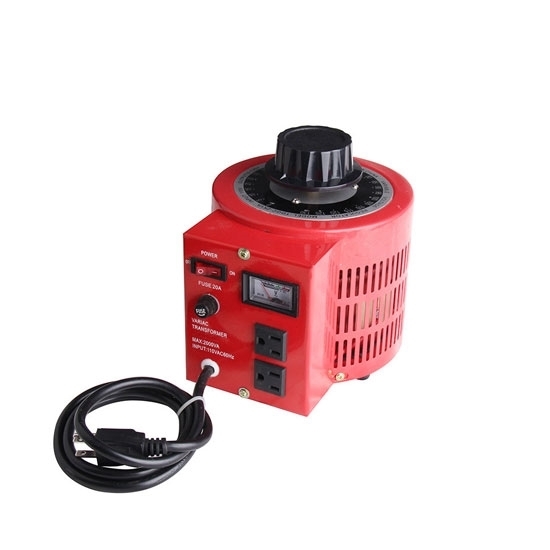

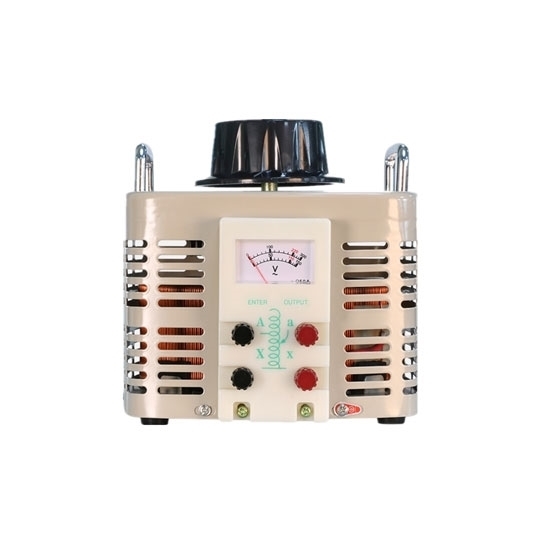

Variac transformer for sale, 0.5 kVA, single phase variac voltage regulator, input voltage 110V and 220V are available.

Note: Support the split phase (L1,L2+N,G), Please contact us.

0.5 kVA Single Phase Variac Voltage Regulator Features

500VA light weight and high efficiency variac voltage regulator, 1.6A rated output current, 50 Hz or 60Hz working frequency, it is really an ideal AC voltage regulating power supply.

0.5 kVA Single Phase Variac Voltage Regulator Specifications

Model	RDDLZ-TDGC2-0.5K
Phase No	1
Frequency	50Hz	60Hz
Rated Input Voltage	220V	110V
Rated Output Voltage	0~250V	0~130V
Rated Capacity	0.5 kVA	0.5 kVA
Max Output Current	1.6A	3.0A
Usage	SVC
Current Type	AC
Actual Output Current	(actual output voltage * rated current) / maximum output voltage
Type	Contact Type Regulators
Weight	3.1kg
Dimension	150125130mm

0.5 kVA Single Phase Variac Voltage Regulator Detail

Tips:

Before use, it must be ascertained that the grid voltage is the same as the input voltage terminal, and the input output should not be reversed.
Before energizing, the pointer should be slowly turned to the required voltage at zero position, and should not be less than 5 seconds from zero to maximum.
The regulator should be kept clean and protected from moisture and should be ventilated during use.
Do not use the handwheel when handling the regulator, but lift the entire product.
After the regulator is used, the hand should be turned to zero position and the power should be cut off.
