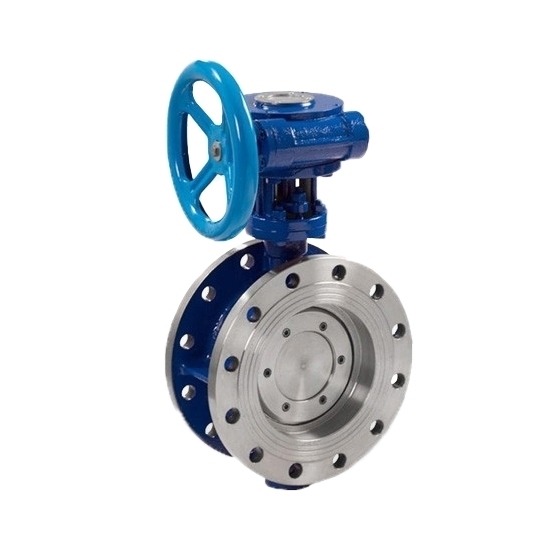

3 Inch Triple Offset Butterfly Valve

0 reviews • Write a review

from

$396.92

Ex Tax: $396.92

Stock: In Stock
Model: RDDLZ-TOBV-DN80
Weight: 1.00
SKU: RDDLZ-TOBV-DN80

Available Options

Short Description

Body Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This butterfly valve cannot be used for drinking water.

RDDLZ 3 inch triple offset butterfly valve for sales. The triple eccentric butterfly valve adopts the design of the three-dimensional eccentric principle so that the spatial trajectory of the sealing surface can be idealized, and there is no friction and no interference between the sealing surfaces.

Features

The triple eccentric butterfly valve has small opening torque, flexible and convenient, labor-saving and energy-saving.
The three-dimensional braided core structure makes the butterfly plate tighter and tighter, and its sealing performance is reliable to achieve no leakage.
Flange triple eccentric butterfly valve is resistant to high pressure, corrosion resistance, wear resistance, long service life, etc.

Specification

Model: RDDLZ-D343H-16C-DN80
Port Size: 3 inch (DN80)
Nominal pressure: PN16
Connection Type: Flanged Type
Body Material: Cast steel WCB/ Stainless Steel
Disc Material: Cast steel WCB/ Stainless Steel
Media: Water, weak acid base, air, steam, oil, etc.
Working Temperature: Cast steel: -29℃～425℃, Stainless steel -40℃～600℃

Dimension

Model	Length (mm)		Dimension (mm)			Connection Size (mm)
Model	H	L	H1	A1	B1	D	D1	Z-d
RDDLZ-TOBV-DN80	120	114/180	380	180	200	200	160	8-18

Application

Tips: What is the difference between triple offset and double offset butterfly valves?

The Double Offset Butterfly Valve is better suited for bubble-tight sealing, while the triple offset butterfly valve is better suited for high temperatures, high pressure, and abrasive media. In addition, the triple offset butterfly valve has a high sealing surface and requires less maintenance.
