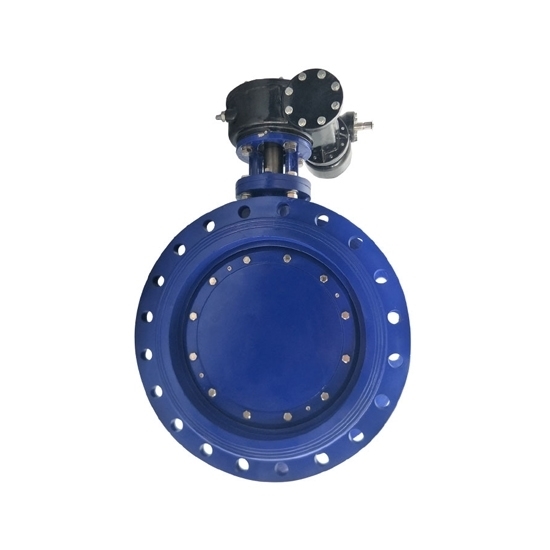

Double Offset Butterfly Valve, 4 Inch/5 Inch/6 Inch/8 Inch

0 reviews • Write a review

from

$563.84

Ex Tax: $563.84

Stock: In Stock
Model: RDDLZ-DOBV-D342X
Weight: 1.00
SKU: RDDLZ-DOBV-D342X

Available Options

Short Description

Size

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

4 inch/5 inch/6 inch/8 inch double offset butterfly valve for sale online. Flanged double eccentric butterfly valve comes with a turbine head, ductile iron material, and rubber soft seal, can be used for water, weak acid-base, air, steam, oil, etc.

Specifications

Model: RDDLZ-D342X/H-16Q
Size: 4 inch (DN100), 5 inch (DN125), 6 inch (DN150), 8 inch (DN200)
Type: Double Eccentric Butterfly Valve with a Turbine Head
Sealing Material: Rubber Soft Seal
Material: Ductile Iron
Connection Method: Flange
Pressure: PN16
Applicable Temperature: 0~80℃
Suitable Medium: Water, Weak Acid Base, Air, Steam, Oil, etc.
Applications: Food, Medicine, Chemical Industry, Environmental Protection, Water Treatment, Water Supply and Drainage

Dimension (Unit: mm)

DN	INCH	D2	H1	H2	N-φd
DN100	4"	180	380	130	8-19
DN125	5"	210	410	145	8-19
DN150	6"	240	445	165	8-22
DN200	8"	295	497	204	12-22

Applications

Tips: What is double offset butterfly valve?

A double offset butterfly valve, also known as a double eccentric valve, features a disc that is offset in two ways: from the centerline of the valve body and from the centerline of the pipe. This design reduces friction between the disc and the seat during operation, leading to less wear and tear, a longer lifespan, and easier operation. The valve provides a tight seal, often achieving a bubble-tight shutoff, which is crucial for applications like gas and chemical processing. Additionally, it is versatile and suitable for high-pressure and high-temperature environments, making it a preferred choice in industries such as water treatment, oil and gas, and power generation.
