Split Core Current Transformer, 300/5A

0 reviews • Write a review

from

$32.89

Ex Tax: $32.89

Stock: In Stock
Model: RDDLZ-SCT-CTKD-300
Weight: 1.00
SKU: RDDLZ-SCT-CTKD-300

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

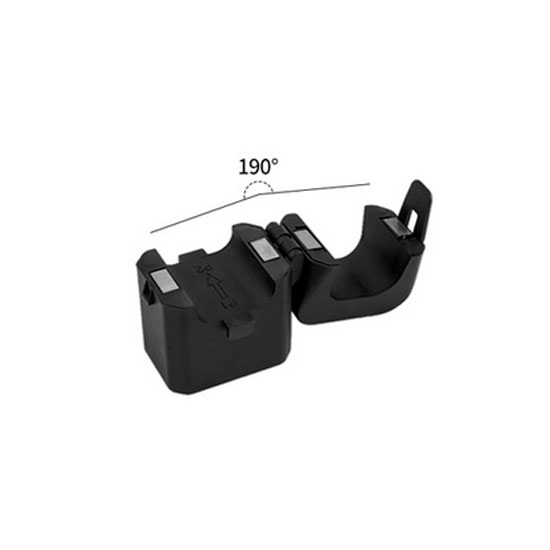

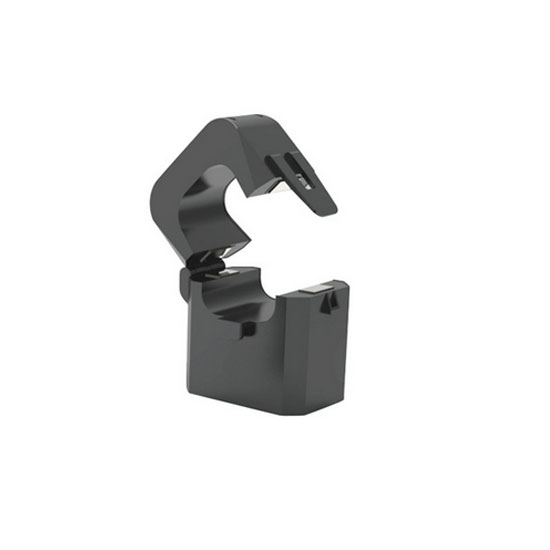

300A/5A Split core current transformer on sale at low price, 0.5 grade accuracy class, easy to install, simply snap these current transformers around the wire being read.

Specification

Model: RDDLZ-SCT-CTKD36-300
Current Ratio: 300/5A
Accuracy Class: 0.5
Working Frequency: 50/60Hz
Measuring Range: 10%ln- 130%ln
Rated Output: 0.333V(AC) or 0-500mA
Ratio Difference: ≤±1.0%
Phase Difference: ≤ soil 10 points
Dielectric Strength: 2.5kV/1mA/1min
Insulation Resistance: DC500V/1000mΩ/min
Shell: ABS, Flame retardant grade 94-V0
Skeleton: PBT
Iron Core: Silicon steel
Internal Structure: Buckle
Construction Plan: Cable ties fixed
Operating Temperature: -25°C~75°C
Ambient Humidity: ≤85%
Wiring: 1.5m Red and black wire

300A Split Core Current Transformer Dimension

φ	A	B	C
36	60	89	43

Tips: The role of current transformer

The role of current transformer (Current transformer, CT) is to convert the larger value of the primary side of the current through a certain ratio to a smaller value of the second side of the current, used for protection, measurement and other purposes. For example, a current transformer with a ratio of 100/5 can convert the actual 100A current into 5A current.
