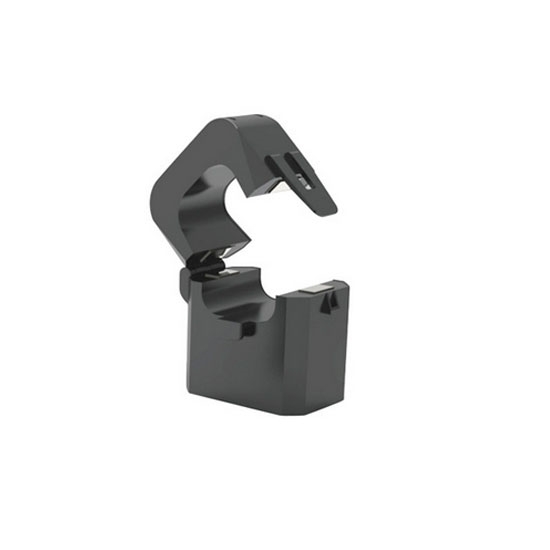

Split Core Current Transformer, 400/5A

0 reviews • Write a review

from

$32.89

Ex Tax: $32.89

Stock: In Stock
Model: RDDLZ-SCT-CTKD-400
Weight: 1.00
SKU: RDDLZ-SCT-CTKD-400

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

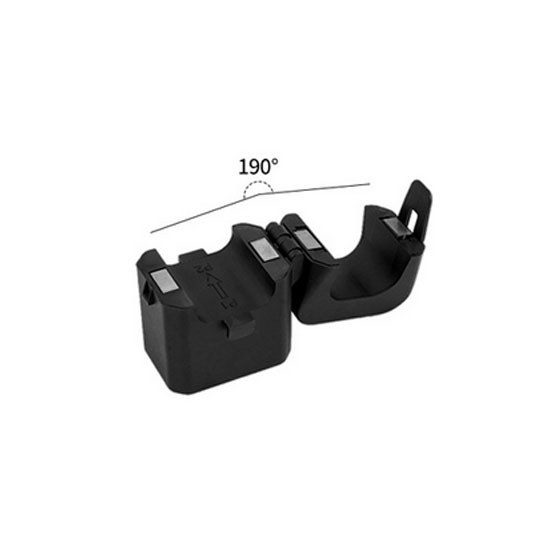

400/5A Split core current transformers with snap design, accuracy is 0.5 grade, using snap joint structure, small size, it can be fixed to the cable directly through nylon ties.

Specification

Model: RDDLZ-SCT-CTKD36-400
Current Ratio: 400/5A
Accuracy Class: 0.5
Working Frequency: 50/60Hz
Measuring Range: 10%ln- 130%ln
Rated Output: 0.333V(AC) or 0-500mA
Ratio Difference: ≤±1.0%
Phase Difference: ≤ soil 10 points
Dielectric Strength: 2.5kV/1mA/1min
Insulation Resistance: DC500V/1000mΩ/min
Shell: ABS, Flame retardant grade 94-V0
Skeleton: PBT
Iron Core: Silicon steel
Internal Structure: Buckle
Construction Plan: Cable ties fixed
Operating Temperature: -25°C~75°C
Ambient Humidity: ≤85%
Wiring: 1.5m Red and black wire

400A Split Core Current Transformer Dimension

φ	A	B	C
36	60	89	43

Tips: What is the rated current of Split core current transformer?

Primary rated current: the load current allowed through the primary winding of the current transformer. The primary rated current of current transformer used in power system is 5～25000A, and the precision current transformer used in test equipment is 0.1～50000A. Current transformer can run under primary rated current for a long time, when the load current exceeds the rated current value, it is called overload, and the long-term overload operation of current transformer will burn out the winding or reduce the service life.
