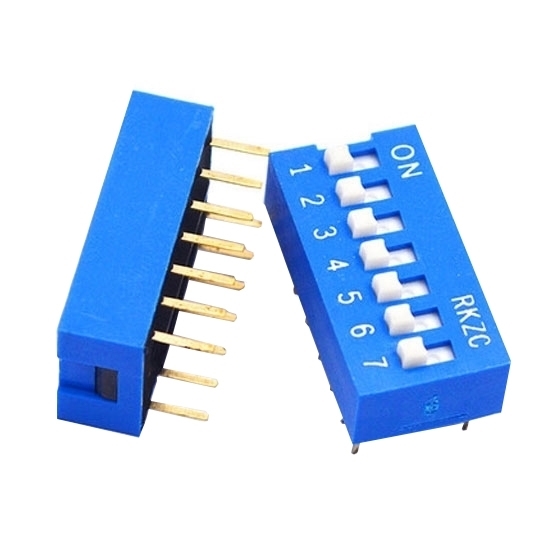

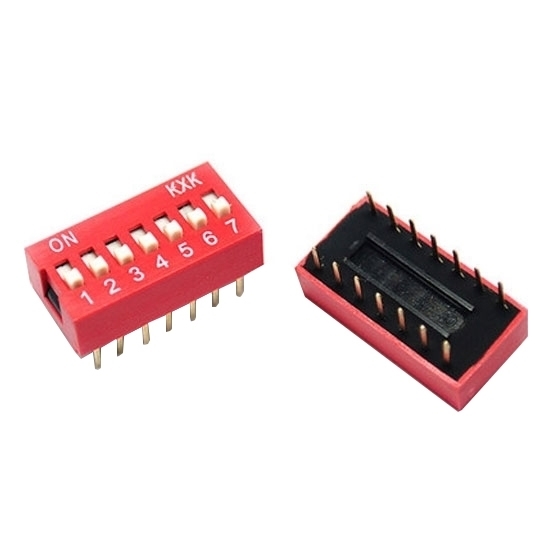

7 Position DIP Switch, 14 Pin, SPST

0 reviews • Write a review

from

$9.79

Ex Tax: $9.79

Stock: In Stock
Model: RDDLZ-DIP-7P
Weight: 1.00
SKU: RDDLZ-DIP-7P

Available Options

Short Description

Color

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

DIP switch is a dual inline package switch that is used for holding configurations and selecting the interrupt request for motherboards or breadboard. This small DIP switch with 7 push buttons also can be used to activate or deactivate different electronic circuits.

Specification

Model		RDDLZ-DIP-7P
Spacing		2.54mm
Number of Switch		7
Number of Pin		14
Maximum Operating Force		8N
Push Button Stroke		2mm
Operating Temperature		-20℃~+70℃
Storage Temperature		-40℃~+85℃
Contact Resistance		Initial Value: 50MΩ, After Test: 100MΩ
Insulation Resistance		100MΩ, 500VDC
Compressive Strength		500VAC/1min
Interpolar Capacitance		5pF
Loop		SPST (Single Pole Single Throw)
Electrical Life		Tested under voltage 24V DC and current 25mA, it can be dialed back and forth about 2000 times
Rated Current	Does not Switch Frequently	10mA, Withstand Voltage 50V DC
	Switch Frequently	25mA, Withstand Voltage 24V DC
Weight		0.1kg

Dimensions (Unit: mm)

Tips: Why is the stability of the DIP switch important?

The main function of the DIP switch is to realize the selection, option and location of the coding function through the on-off of the control circuit. The stability of the DIP switch is directly related to the stable operation of the system, so it is necessary to use a high-quality DIP switch.
