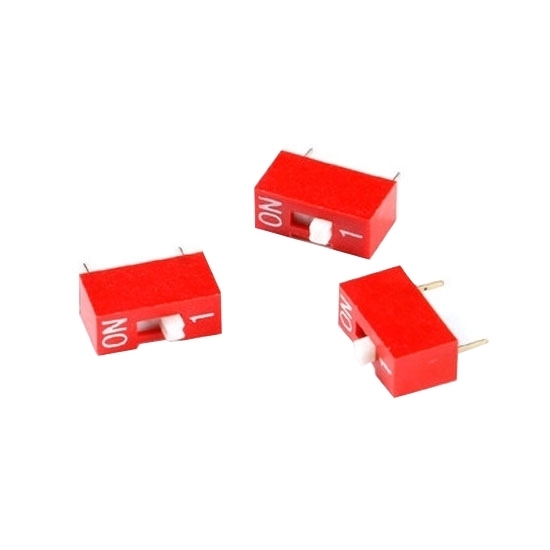

1 Position DIP Switch, 2 Pin, SPST

0 reviews • Write a review

from

$9.09

Ex Tax: $9.09

Stock: In Stock
Model: RDDLZ-DIP-1P
Weight: 1.00
SKU: RDDLZ-DIP-1P

Available Options

Short Description

Color

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Single position 2 bit electronic DIP switch is a simple and small component which can be mounted directly on a circuit board. You can use the tip of a pencil to open or close the circuit.

Specification

Model		RDDLZ-DIP-1P
Number of Switch		1
Number of Pin		2
Maximum Operating Force		8N
Push Button Stroke		2mm
Operating Temperature		-20℃~+70℃
Storage Temperature		-40℃~+85℃
Contact Resistance		Initial Value: 50MΩ, After Test: 100MΩ
Insulation Resistance		100MΩ, 500VDC
Compressive Strength		500VAC/1min
Interpolar Capacitance		5pF
Loop		SPST (Single Pole Single Throw)
Electrical Life		Tested under voltage 24V DC and current 25mA, it can be dialed back and forth about 2000 times
Rated Current	Does not Switch Frequently	10mA, Withstand Voltage 50V DC
	Switch Frequently	25mA, Withstand Voltage 24V DC
Weight		0.1kg

Dimensions (Unit: mm)

Tips: What is a DIP switch?

As a kind of micro switch that needs to be operated manually, the DIP switch is widely used in communication, security and other equipment products. Most of the DIP switches adopt direct plug-in (DIP), which can switch between two states, and then form different states of 2 to the Nth power according to different bits to realize different functions.
