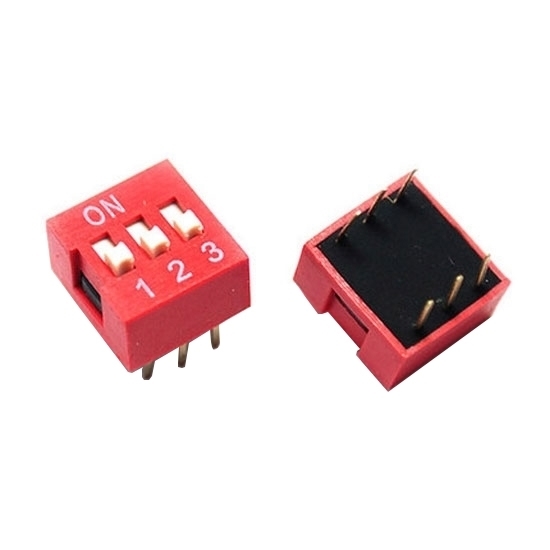

3 Position DIP Switch, 6 Pin, SPST

0 reviews • Write a review

from

$9.09

Ex Tax: $9.09

Stock: In Stock
Model: RDDLZ-DIP-3P
Weight: 1.00
SKU: RDDLZ-DIP-3P

Available Options

Short Description

Color

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Wholesale price 3 position 3 way electronic DIP switch is a dual in-line package switch that can be mounted directly on a circuit board to activate or deactivate different electronic circuits.

Specification

Model		RDDLZ-DIP-3P
Spacing		2.54mm
Number of Switch		3
Number of Pin		6
Maximum Operating Force		8N
Push Button Stroke		2mm
Operating Temperature		-20℃~+70℃
Storage Temperature		-40℃~+85℃
Contact Resistance		Initial Value: 50MΩ, After Test: 100MΩ
Insulation Resistance		100MΩ, 500VDC
Compressive Strength		500VAC/1min
Interpolar Capacitance		5pF
Loop		SPST (Single Pole Single Throw)
Electrical Life		Tested under voltage 24V DC and current 25mA, it can be dialed back and forth about 2000 times
Rated Current	Does not Switch Frequently	10mA, Withstand Voltage 50V DC
	Switch Frequently	25mA, Withstand Voltage 24V DC
Weight		0.1kg

Dimensions (Unit: mm)

Tips: How to use the DIP switch?

The DIP switch cannot directly control the stepper motor, it needs a stepper driver. The principle of the DIP switch is like the parallel connection of resistors. The number 8421 corresponds to the resistance value of 1/8, 1/4, 1/2, 1 in turn, which can also be measured with a multimeter. The DIP switch is equivalent to a switch value. When it is turned ON, it means it is connected, and when it is OFF it means it is disconnected. In digital circuits, 0 and 1 are usually used for binary output.
