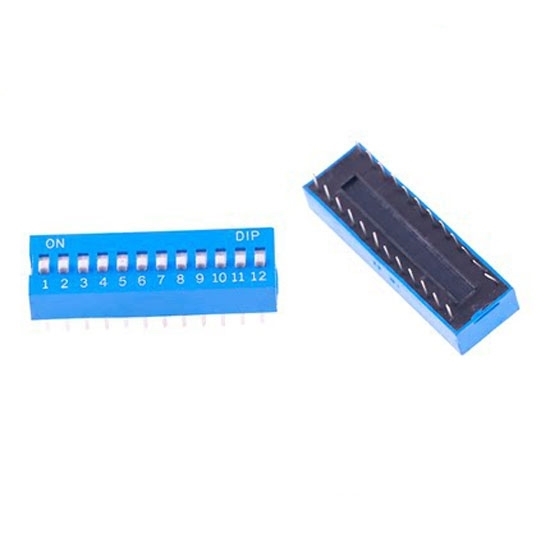

12 Position DIP Switch, 24 Pin, SPST

0 reviews • Write a review

from

$10.49

Ex Tax: $10.49

Stock: In Stock
Model: RDDLZ-DIP-12P
Weight: 1.00
SKU: RDDLZ-DIP-12P

Available Options

Short Description

Color

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Dual inline package switch (DIP switch) is designed to hold configurations and select the interrupt request for motherboards or breadboard. This small DIP switch with 12 push buttons also can be used to activate or deactivate different electronic circuits.

Specification

Model		RDDLZ-DIP-12P
Spacing		2.54mm
Number of Switch		12
Number of Pin		24
Maximum Operating Force		8N
Push Button Stroke		2mm
Operating Temperature		-20℃~+70℃
Storage Temperature		-40℃~+85℃
Contact Resistance		Initial Value: 50MΩ, After Test: 100MΩ
Insulation Resistance		100MΩ, 500VDC
Compressive Strength		500VAC/1min
Interpolar Capacitance		5pF
Loop		SPST (Single Pole Single Throw)
Electrical Life		Tested under voltage 24V DC and current 25mA, it can be dialed back and forth about 2000 times
Rated Current	Does not Switch Frequently	10mA, Withstand Voltage 50V DC
	Switch Frequently	25mA, Withstand Voltage 24V DC
Weight		0.1kg

Dimensions (Unit: mm)

Tips:

Each position of the DIP switch has two pins on the top and bottom of the back. When it is turned to the ON side, the two pins on the bottom are connected. Otherwise, it is disconnected. Each position is independent and not related to each other. This components are mostly used for binary coding.
