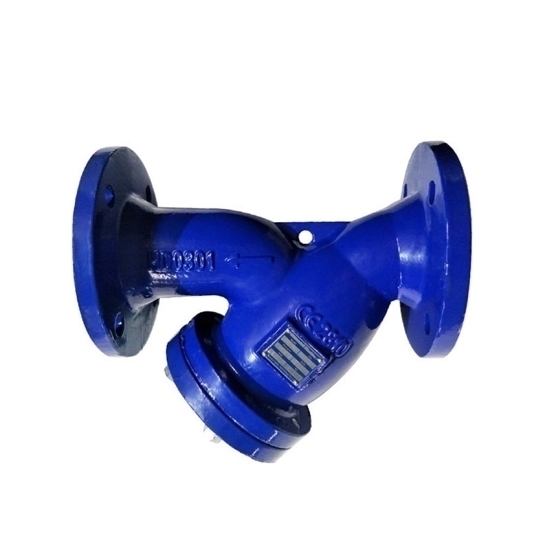

5 Inch Cast Iron Y Strainer

5 Inch Cast Iron Y Strainer
5 Inch Cast Iron Y Strainer
0 reviews • Write a review
from
$530.38
Ex Tax: $530.38
  • Stock: In Stock
  • Model: RDDLZ-YTS-125
  • Weight: 1.00
  • SKU: RDDLZ-YTS-125

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This Y type strainer cannot be used for drinking water.

Good price 5 inch ductile iron Y type strainer with DN125 nominal diameter, flange connection, working pressure PN16, commonly used in water supply systems to effectively filter out sand, rust, sediment and other debris.

Specifications

  • Model: RDDLZ-GL41H-16Q
  • Type: Y Type Strainer
  • Size: 5 inch (DN125, 125mm)
  • Connection Method: Flange Connection
  • Material: Ductile Cast Iron
  • Pressure: PN16
  • Applicable Temperature: -10~200℃
  • Suitable Medium: Water, oil etc.
  • Design and Manufacture: GB/T 14382
  • Pressure Test: GB/T 14382
  • Applications: Food, medicine, chemical industry, environmental protection, water treatment, water supply and drainage.

Dimension (Unit: mm)

DNINCHLφAφBφC
DN1255400245210185


Applications

Y-type strainers can remove impurities, debris, and solid particles from fluid or gas pipelines in industrial and commercial applications. They are typically used in applications where a high flow rate is required, and where there is a risk of damage to equipment or processes from the presence of solid particles.

Tips: Material Types of Y Strainers

  • Brass: Offers good corrosion resistance and is used in plumbing and low-pressure systems. It is also non-sparking and has a nice appearance but is less strong.
  • Stainless Steel: Highly resistant to corrosion and high temperatures, making it suitable for aggressive fluids and high-pressure applications. It is durable and has a long service life.
  • Ductile Iron: Known for its high strength and durability, it is used in high-pressure and heavy-duty industrial applications. It may require coating for corrosion resistance.
  • Carbon Steel: Cost-effective and strong, used in general industrial applications. It may need protective coating to prevent corrosion, especially in harsh environments.
  • Plastic (e.g., PVC, CPVC): Lightweight, resistant to corrosion, and suitable for non-metallic fluid applications. Ideal for less aggressive or lower-pressure systems.
