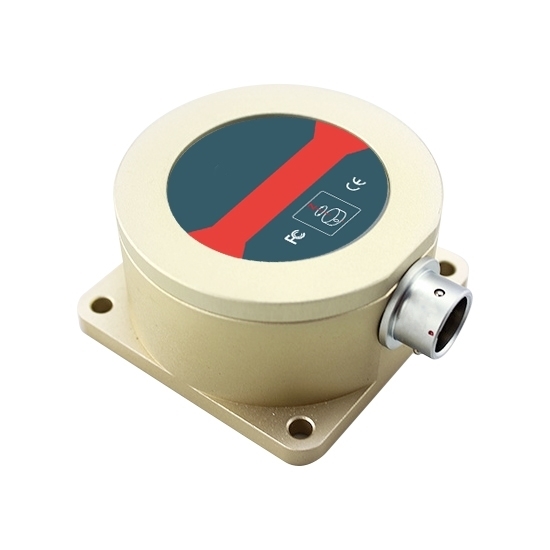

Current (Voltage) Output Gyroscope Sensor, ±50°/ ±150°/ ±300°

0 reviews • Write a review

from

$559.68

Ex Tax: $559.68

Stock: In Stock
Model: RDDLZ-GS-TL610D
Weight: 1.00
SKU: RDDLZ-GS-TL610D

Available Options

Short Description

Output Signal

Measuring Range

Measuring Axis

Measuring Direction

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Lower cost gyro sensor featuring resolution 0.1°/ s, bandwidth> 2000Hz, short starting time 5 ms. The angular rate sensor has advantages of high performance, waterproof, light weight and long service life.

Specification

Model	RDDLZ-TL610D-050	RDDLZ-TL610D-150	RDDLZ-TL610D-300	RDDLZ-TL618D-050	RDDLZ-TL618D-150	RDDLZ-TL618D-300
Output signal	Voltage output (0-5V)			Current output (4-20A)
Measuring range	±50°	±150°	±300°	±50°	±150°	±300°
Ratio factor	50mV °/S	16.66 mV °/S	8.333 mV °/S	-	-	-
Measuring axis	X, Y, Z (optional)
Bandwidth	>2000Hz
Resolution	0.1°/ s
Temperature drift	<±1°/s/℃
Nonlinear	0.1% of FS
Zero degree bias voltage	2.5V (±0.01V)
Starting time	<5s
Input voltage	9-36V
Output voltage	0-5V
Consumption current	6mA
Working temperature	-40℃-85℃
Storage temperature	-55℃-100℃
Capacitive load	1000 Pf
Shock	5g-10g
Impact	200g pk, 2ms, 1/2 sine
Connector	5 pins aviation socket, standard 1m cable
Working life	10 years
Output rate	5Hz/ 15Hz/ 25Hz/ 50Hz/ 100Hz can be set
MTBF	≥50000 hours/ times
Iusulation resistance	≥100M
Anti-vibration	10grms, 10-1000Hz
Protection grade	IP67
Certificate	CE, FCC, RoHS
Warranty	12 months

Dimension (unit=mm)

Voltage Output

Current Output

Tips: Feature of Gyroscope Sensor

The most important characteristic of a gyroscope sensor is its stability and precession.
We can find from children’s ground tops that the high-speed spinning tops can stay vertical without falling over and remain vertical to the ground, which reflects the stability of the tops when they move. The theory of studying the motion characteristics of a gyroscope is a branch of the dynamics of a rigid body moving around a fixed point. It studies the dynamic characteristics of a rotating object based on the inertia of the object. It can be said that the gyroscope sensor is a simple and easy-to-use positioning and control system based on free space movement and gestures.
