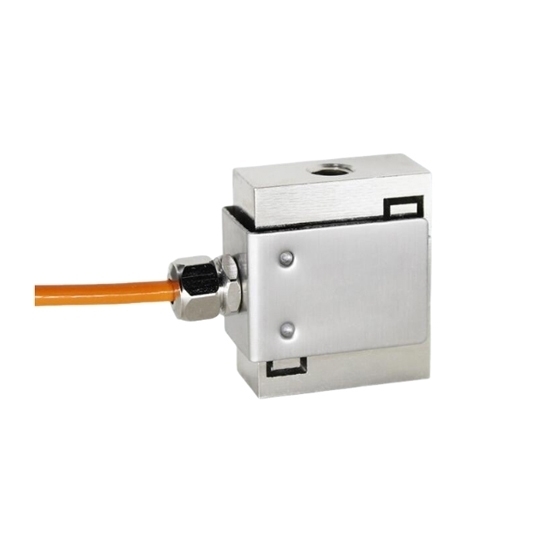

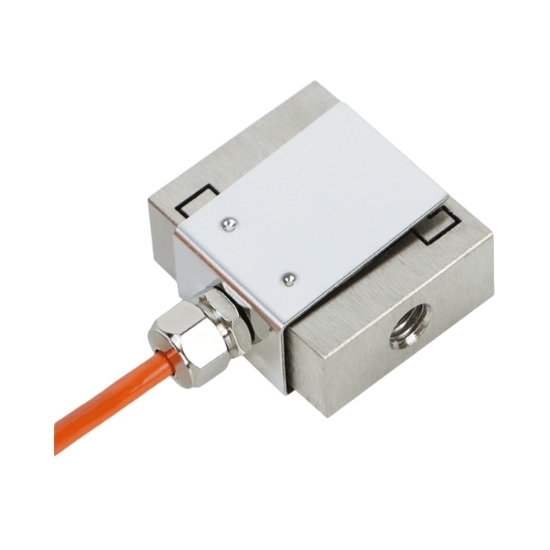

Micro Load Cell, S Type, 1kg/2kg/3kg/10kg To 50kg

0 reviews • Write a review

from

$142.38

Ex Tax: $142.38

Stock: In Stock
Model: RDDLZ-LC-S03
Weight: 1.00
SKU: RDDLZ-LC-S03

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

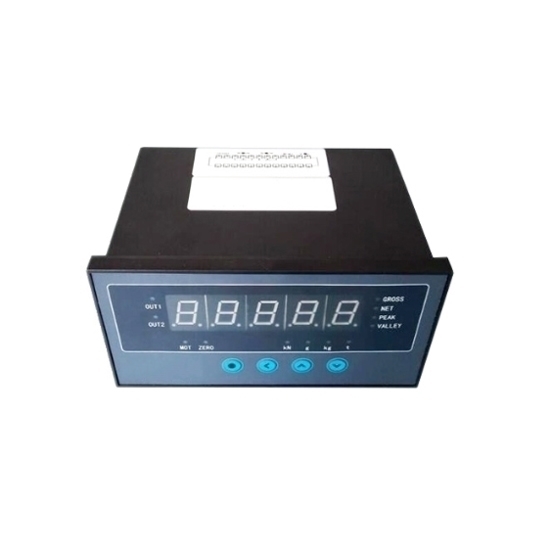

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Tension and compression load cells have capacity range from 1kg, 2kg, 3kg, 10kg to 50kg. Load cell capacity can be customized according to customer requirements. It is able to measure both tensile and compressive forces, and it offers good hardenability and strong resistance to mechanical fatigue, quite durable for heavy-duty use.

Specification

Model	RDDLZ-LCS-DYLY-106
Weight	0.06kg
Capacity Range *	0kg~50kg
Matched Display Controller	RDDLZ-DDC5-CHB (Click it to the controller page)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Accuracy	0.05%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.05mV/V (Low range variations may differ)
Frequency Response	8 kHz
Creep	±0.03%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.03%F.S/10℃
Temperature Effect on Output	±0.03%F.S/10℃
Operating Temperature	-20℃~+80℃
Input Impedance	350±20Ω
Output Impedance	350±5Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 5-15V, suggest DC 10V
Material	Alloy steel
Protection Class	IP67
Cable Length	2m
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

Durable Alloy Construction: Made of high-quality 42CrMo alloy steel with rounded edges and sandblasted finish for longevity.
Compact & High Precision: Micro load cell small size with high accuracy, suitable for various weighing applications.
Industrial-Grade Strain Gauge: Ensures high measurement precision and operates in extreme environments like high/low temperatures and high pressure.
Bidirectional Force Measurement: S type load cell supports both tension and compression testing for versatile applications.
Threaded Hole Design: Top and bottom threaded holes for easy installation in belt scales, hopper scales, and batching systems.
Stable Signal Transmission: 3mm diameter shielded signal cable with strong anti-interference capability.

Dimension (unit: mm)

Note: Length of M6 screw is 6mm.

Wiring Method

Tips: How to judge lead wire of load cell?
The output resistance of the load cell is generally 350Ω, 480Ω, 700Ω, 1000Ω. The input terminal will be conducted with temperature and sensitivity compensations. Therefore, the resistance of the input terminal will be 20~100Ω higher than that of the output terminal. Therefore, if the multimeter is used to measure the resistance value, the input and output terminals can be judged. Normally, the colors of the input and output terminals are red, black, green and white. They are respectively marked as EXC+, EXC-, SIG+ and SIG-.
