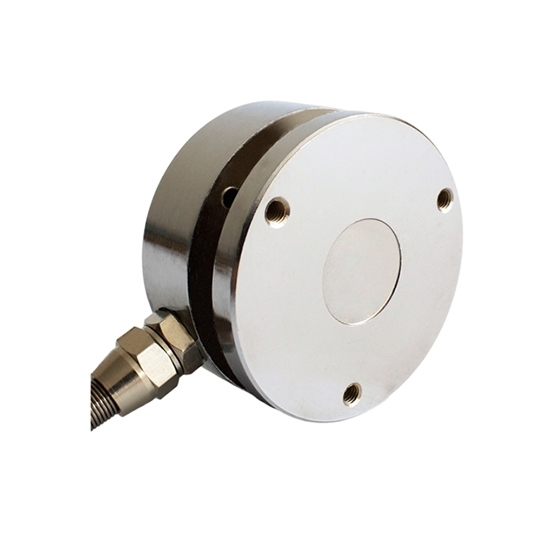

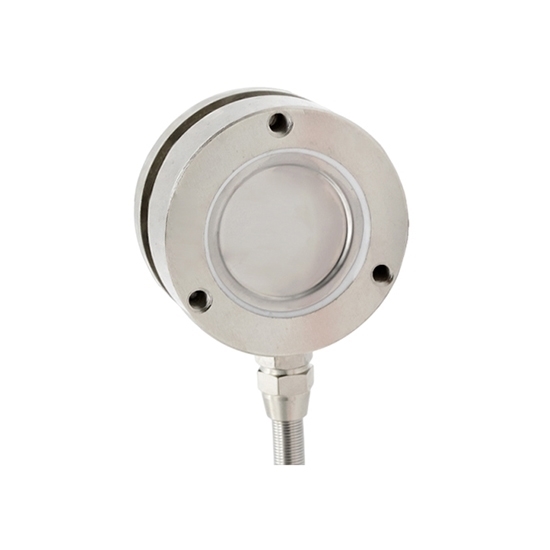

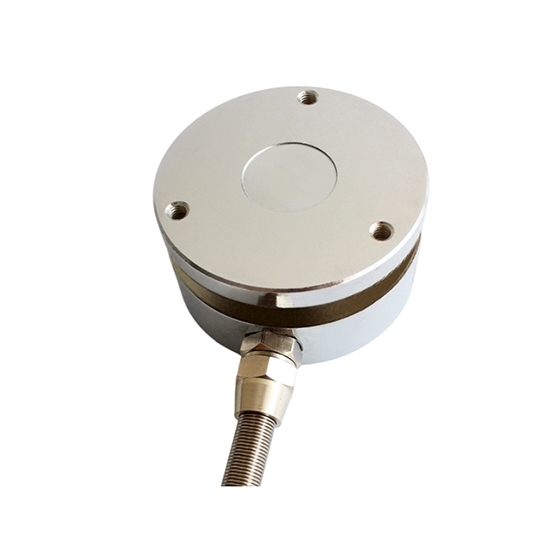

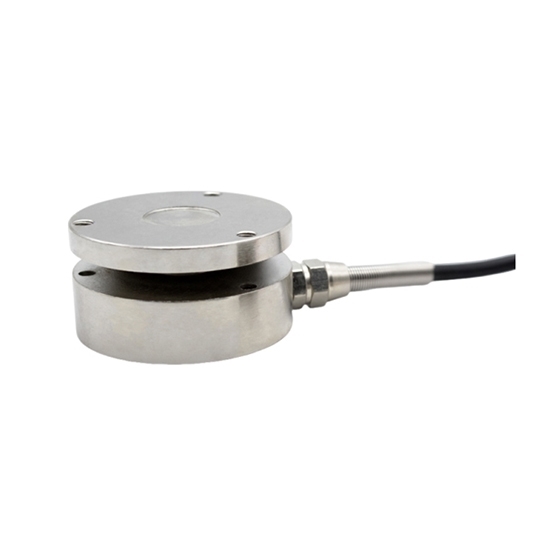

Flat Load Cell, Diaphragm Type, 50kg/300kg/1 Ton To 10 Ton

0 reviews • Write a review

from

$142.69

Ex Tax: $142.69

Stock: In Stock
Model: RDDLZ-LC-102
Weight: 1.00
SKU: RDDLZ-LC-102

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Designed for high performance weighing systems, the flat load cells are offered in ranges from 50kg/100kg/200kg/300kg/500kg/1ton/2ton to 10 tons. The unique design of the load cell has a zero drift and creep error of only 0.1% F.S.. The load cell material is made of high quality alloy steel, together with Φ5*2m tensile cable design, to ensure the long term durability and easy installation of the load cell.

Specification

Model	RDDLZ-DYMH-102
Capacity Rang	0-50kg/100kg/200kg/300kg/500kg/1 ton/2 ton/3 ton/5 ton/10 ton (optional)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Matched Display Controller	RDDLZ-DPM-DY800 (Click it to the controller page)
Rated Output	1.0-2.0±0.05mV/V
Zero Balance	±2%F.S.
Non-Linearity	0.5%F.S.
Hysteresis	0.1%F.S.
Repeatability	0.1%F.S.
Creep	0.1%F.S. (30min)
Temp Effect on Output	0.05%F.S./10°C
Temp Effect on Zero	0.05%F.S./10°C
Response frequency	10kHz
Material	Alloy steel
Impedance	700Ω
Insulation	≥5000MΩ/100VDC
Working Voltage	5-15V
Operating Temp Range	-20°C~80°C
Safe Overload	1.5
Maximum Overload	2
Cable Specifications	Φ5*2m
Cable Ultimate Pull	10kg

Dimension (unit: mm)

Details

High-quality Alloy Steel: 42CrMo high-strength alloy steel with good hardenability and strong resistance to mechanical fatigue.
Precision Waterproof Connector: 6 angle waterproof connector with spring buffer to prevent wire pulling and breaking.
Industrial High Precision Strain Gauge: Small thermal hysteresis, good heat resistance, small creep, good stability in long-term use.
Planar Structure: The load cell provides a variety of sizes and ranges for selection, with a wide range of applications and high measuring accuracy and good shock resistance.

Load Cell Force Diagram

Wiring Drawing

Note: This is the pressure wiring of the load cell, such as the measurement of tensile force need to be the definition of the green wire and white wire wiring alignment.

Tips: What is a flat load cell?

Flat load cells are compact force measuring devices designed to measure compressive forces or weights. Its flat shape is suitable for installation in places where space is limited. Due to their high accuracy and sensitivity, flat load cells are often used in industrial equipment, automated production lines, test instruments and medical devices.

When installing a flat load cell, make sure its bottom and contact surface are flat and clean to avoid measurement error. The load cell needs to be fixed to the mounting surface by means of screws or adhesives, depending on the application environment. When connecting, use the special signal cable provided by the manufacturer and wire correctly according to the equipment instructions. In addition, avoid applying excessive lateral forces or impacts on the sensor housing to prolong the service life.
