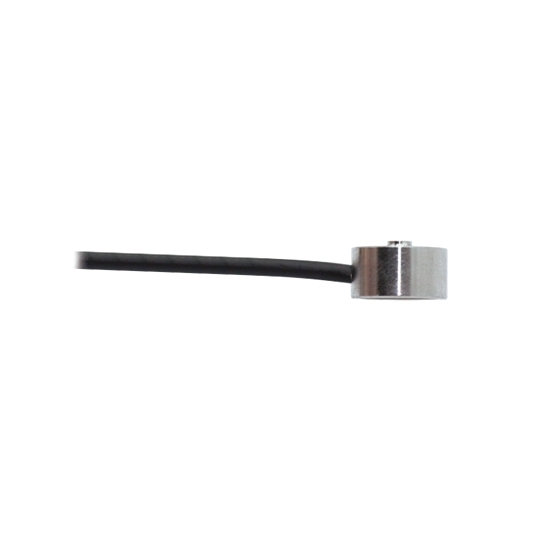

Compression Button Load Cell 5kg/10kg/20kg/30kg/50kg/100kg

0 reviews • Write a review

from

$131.75

Ex Tax: $131.75

Stock: In Stock
Model: RDDLZ-LC-BU02
Weight: 1.00
SKU: RDDLZ-LC-BU02

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

A compression button load cell is a precision measuring device primarily used to measure small changes in weight or pressure. When an external force acts on the sensor, the metal structure will undergo slight deformation, which will cause the strain gauge to output a weak electrical signal. This electrical signal is then amplified, filtered and analyzed by a data acquisition system, and ultimately converted into a readable numerical or graphical display.

Button load cells have capacity range from 5kg, 10kg, 20kg, 30kg, 50kg to 100kg. Load cell capacity can be customized according to customer requirements.

Specification

Model	RDDLZ-LCBU-DYHW-110
Shipping Weight	1kg
Capacity Range *	0~100kg
Matched Display Controller	RDDLZ-DPM-DY800 (Click it to the controller page)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Accuracy	0.5%F.S (linearity + hysteresis + repeatability)
Sensitivity	1.0m±20%mV/V (Low range variations may differ)
Creep	±0.1%F.S/30min
Zero Output	±2%F.S
Temperature Effect on Zero	±0.2%F.S/10℃
Temperature Effect on Output	±0.2%F.S/10℃
Operating Temperature	-20℃~+80℃
Input Impedance	350Ω
Output Impedance	500Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 5-15V
Material	Stainless steel
Protection Class	IP66
Cable Length	2m
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

Compact & Versatile: Small size, easy integration, and multiple size options for diverse needs.
High Accuracy: Delivers precise and consistent measurements.
Reliable & Stable: Ensures dependable performance for long-term use.
Effortless Installation: Quick and simple setup, saving time.
Durable Build: Made with robust 17-4 PH stainless steel for strength and longevity.
Resistant to Harsh Conditions: Withstands heat and wear, maintaining stable performance.
Long-lasting: Provides durable, stable, and accurate measurements over time.
Superior Wiring: 2.0mm diameter wires designed to resist pulling and weathering.
Precision Sensing: High-accuracy sensing chip for reliable measurements in various environments.

Dimension (unit: mm)

Wiring Method

Application

Tips: How do I select the right compression button load cell?

The following factors should be considered when making a selection:

Load capacity: Ensure that the load cell selected is suitable for measuring the maximum load required.
Accuracy requirements: Different applications require different accuracy levels.
Operating environment: such as temperature, humidity and chemical exposure, select a load cell that is corrosion, vibration or high temperature resistant.
Output type: Select the appropriate type of signal output (e.g. analog or digital) for the needs of the device or system.
