- Stock: In Stock
- Model: RDDLZ-BP-2HP
- Weight: 1.00
- SKU: RDDLZ-BP-2HP

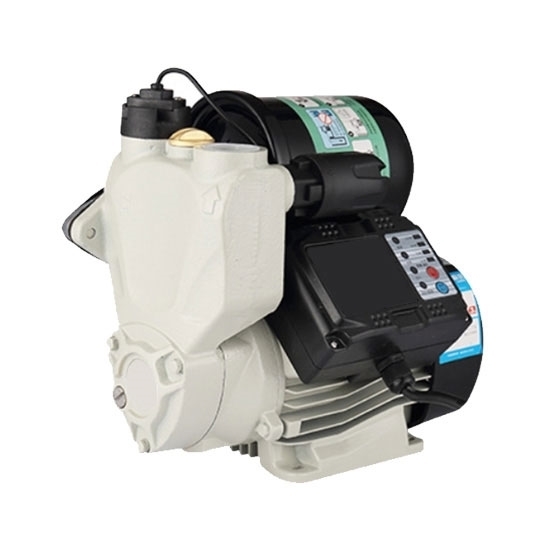

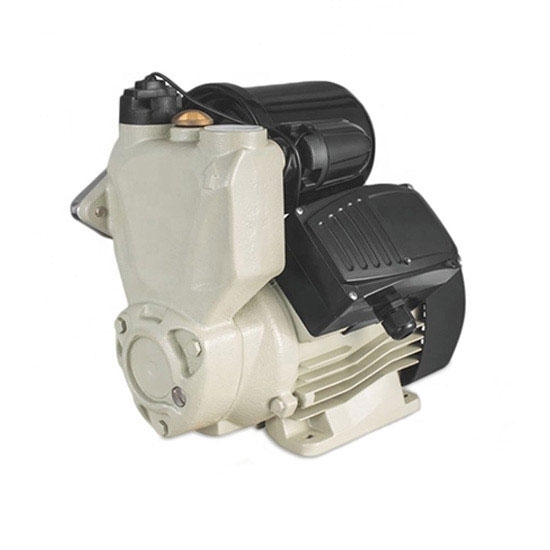

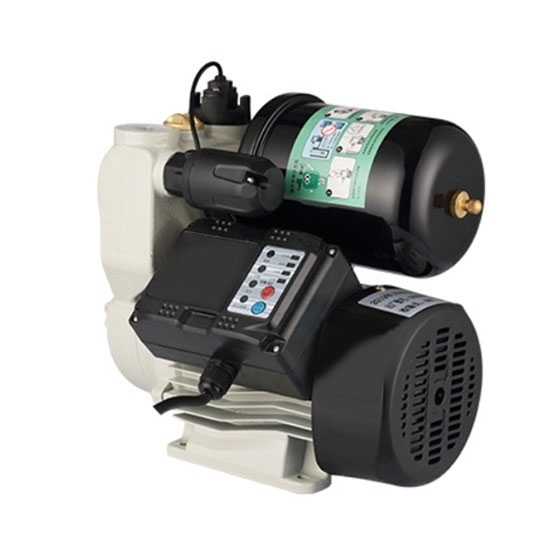

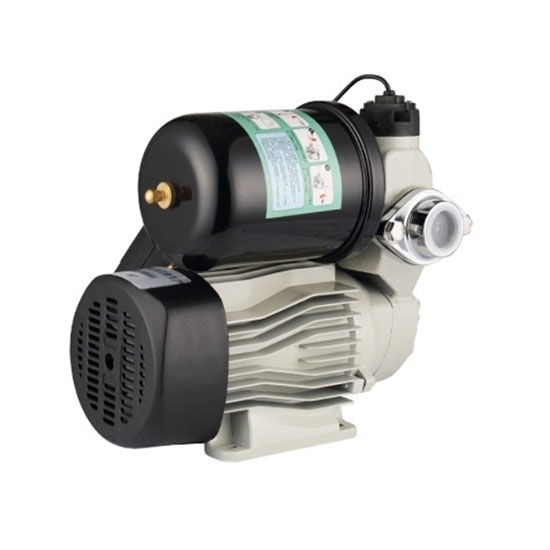

2 HP (1.5 kW) water pressure booster pump is a combination of motor, pump, pressure tank, pressure switch, flow sensor switch and electronic controller for the integration of automatic water supply system. It widely used in house, bathroom, washing machine, sprinkler system, irrigation system and reverse osmosis (RO) system.
Specification
| Model | RDDLZ-40WZB-1500A | |
| Power | 2 HP (1.5 kW) | |
| Voltage (AC) | 220V-240V | |
| Frequency | 50Hz | |
| Phase | Single Phase | |
| Max. Flow | 100 L/min | |
| QMax | 4.8 - 5.0 m3/h | |
| Max. Head | 60m | |
| Max. Suction | 9m | |
| Inlet Diameter | 1-1/2 inch | |
| Outlet Diameter | 1-1/2 inch | |
| Pump | Max. Liquid Temperature | +0 ~ +80℃ |
| Liquid PH Valve | 6.5 - 8.5 | |
| Material | Cast Iron Body and Support | |
| Motor | Max. Ambient Temperature | +40℃ |
| Insulation Class | B or F | |
| Protection | IP x 4 | |
| Cooling | External Ventilation | |
| Shaft | Stainless Steel Welded Shaft / 45# Steel Shaft | |
| Packing Dimension | 365mm * 270mm * 365mm | |
| Weight | 21kg | |

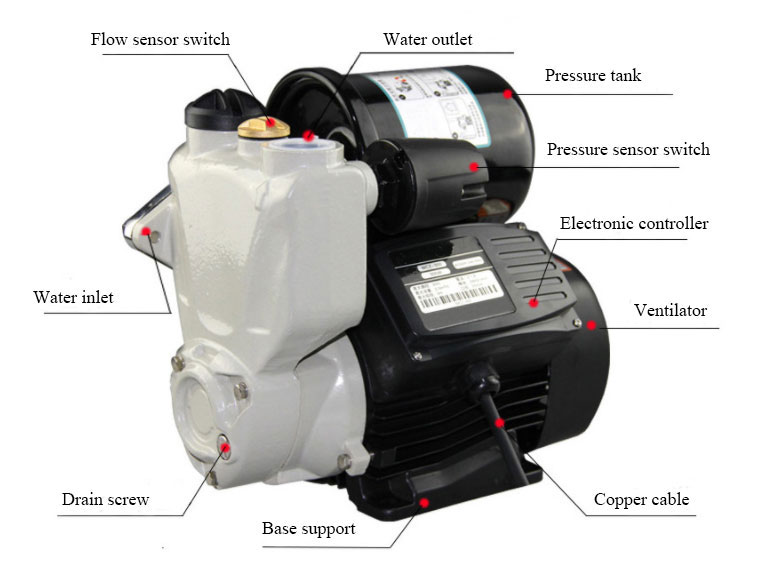

Details
Applications
Tips: How to select an automatic water booster pump?
There are a number of factors causing water pressure problems, if the water tank water pressure is insufficient in the old house, you can solve the problem by installing a booster pump. But how to choose a suitable water booster pump Now we recommend you to choose it according to its technical parameters.
- Motor power
In the case of the same flow head, the low power of the motor equipment is good. - Rated flow
The rated flow is the maximum amount of water that can be used in a given water service If the flow is not sufficient, the water pressure may be low or no water at peak times. Peak water pressure can be guaranteed only when the rated flow is greater than or equal to the maximum possible water consumption for our water use. - Rated head or pressure
The rated pressure is the maximum pressure that the booster pump can reach when operating at the rated flow. The max. pressure here must be at the rated flow, rather than the max. pressure when the outlet is closed.
In short, you must know about the actual parameters of water booster pump in detail from retailers and manufactures, and then choose according to your actual production needs.
