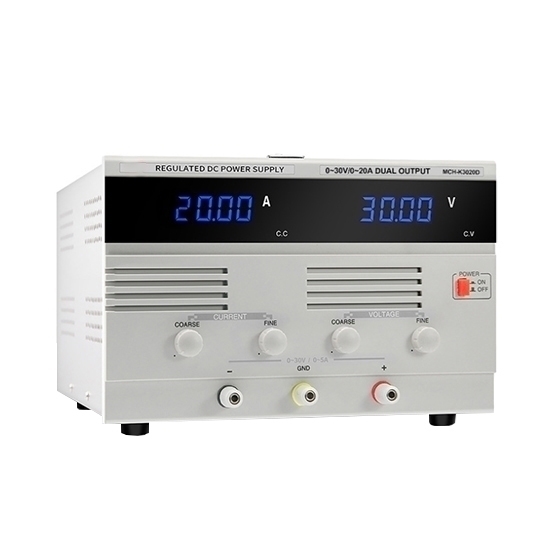

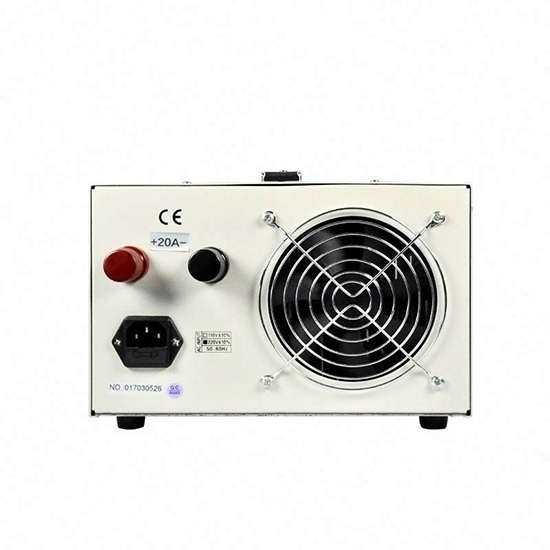

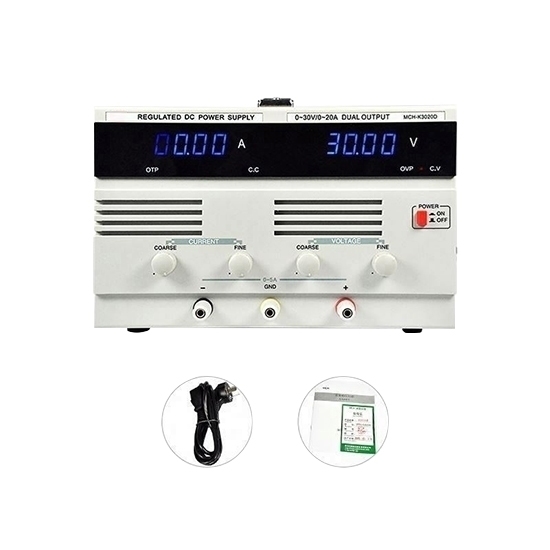

This adjustable DC power supply has 4 digital readouts, 600W output power, 0-30 volt, 0-20 variable, which can more precisely to control the current and voltage. You can not expect more for safe since the power supply comes with grounding terminal and multiple protection of over current, over heat, and over voltage.

Specifications

Tips

DC regulated power supply is a device that converts 220V power frequency alternating current into regulated output DC voltage. It needs to go through four links: Voltage transformation, rectification, filtering and voltage stabilization The working principle of the four links is as follows:

1. Power transformer: It is a step-down transformer, which transforms the grid 220 V AC voltage into the required AC voltage and sends it to the rectifier circuit. The transformation ratio of the transformer is determined by the secondary side voltage of the transformer.

2. Rectifier filter circuit: The rectifier circuit transforms the AC voltage UI into the pulsating DC voltage. After filtering the larger ripple components, the output voltage U1 is smaller. The common rectifying and filtering circuits are full wave rectifying and filtering, bridge rectifying and filtering, etc.

3. Filter circuit: Most of the AC components in the output voltage of the rectifier circuit can be filtered out, so as to obtain a relatively smooth DC voltage, each filter capacitance C meets RL-C=(3 ~ 5) t / 2, or the middle T is the input AC signal period, and the RL is the equivalent load resistance of the rectifier filter circuit.

4. Voltage stabilizing circuit: The function of voltage stabilizing circuit is to make the output DC voltage stable and not change with the change of AC grid voltage and load. The commonly used integrated regulators are fixed three terminal regulators and adjustable three terminal regulators.
