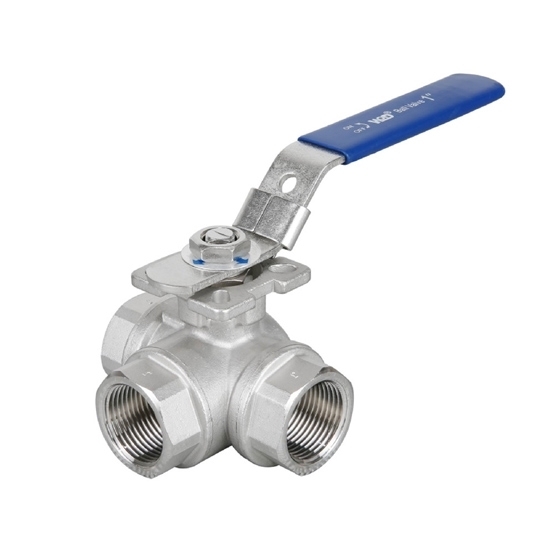

3/4 Inch Stainless Steel 3 Way Ball Valve, T Port/L Port

0 reviews • Write a review

from

$69.75

Ex Tax: $69.75

Stock: In Stock
Model: RDDLZ-3WBV-20
Weight: 1.00
SKU: RDDLZ-3WBV-20

Available Options

Short Description

Material

Thread

Port

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

The provided 3/4 inch (DN20) ball valve is a stainless steel 3 way ball valve, with an optional L port and T port, BSP, BSPT and NPT thread standard and SS 304/316 material. Low maintenance three way ball valve can provide an efficient way to control fluid flow in chemical and industrial applications.

Specifications

Model: RDDLZ-Q14/15F-63/1000WOG(C/P/R)
Size: 3/4 inch (20mm)
Connection Method: Thread
Threaded Ends: BSP, BSPT, NPT
Port: T Port/L Port
Mounting Pad: ISO5211
Working Pressure: 1.6MPa
Temperature Range: -20℃～180℃
Weight: About 0.74kg (T), 0.79kg (L)
Material: 304/316 Stainless Steel

Dimension (Unit: mm)

DN	D	L±1.5	L1	H	T	C	NM	ISO5211
20	15	82	63	73	131	9	3.1	F03/F04

Main Part Materials

NO.	PART NAME	MATERIAL	QTY
1	CAP	CF8/CF8M	3
2	SEAT	PTFE/RPTFE	4
3	JOINT GASKET	PTFE/RPTFE	3
4	THRUST WASHER	PTFE/RPTFE	1
5	PACKING	PTFE/RPTFE	1
6	STEM	S304/S316	1
7	GLAND	SS304	1
8	NUT	SS304	2
9	BALL	S304/S316	1
10	BODY	CF8/CF8M	1
11	HANDLE	S304	1
12	HANDLE COVER	PVC	1
13	LOCK	SS304	1

Applications

3-way ball valves are used in a wide range of industries, including oil and gas, chemical processing, HVAC, and water treatment. They are suitable for applications where precise control of fluid or gas flow is required, and where the ability to divert or mix the flow is important.

Tips: Why choose a stainless steel ball valve?

Corrosion resistance: Stainless steel is highly resistant to corrosion, making it ideal for use in environments where the valve may be exposed to corrosive materials or liquids.
Durability: Stainless steel is a strong and durable material that can withstand high temperatures, pressure, and wear and tear, making it suitable for use in harsh industrial environments.
Easy to clean: Stainless steel surfaces are easy to clean and maintain, making them ideal for applications in the food and beverage industry where cleanliness is important.
Chemical resistance: Stainless steel is highly resistant to chemicals, acids, and solvents, making it ideal for use in chemical processing applications.
Hygienic: Stainless steel is non-porous and does not harbor bacteria, making it ideal for use in applications where cleanliness and hygiene are critical, such as in the pharmaceutical industry.
Aesthetics: Stainless steel has an attractive, modern look that can enhance the appearance of a valve and add to the overall design of the system.
