Heavy Duty Connector, 4 Pin, 250VAC / 10A

0 reviews • Write a review

from

$77.46

Ex Tax: $77.46

Stock: In Stock
Model: RDDLZ-HDCN-4P
Weight: 1.00
SKU: RDDLZ-HDCN-4P

Available Options

Model

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

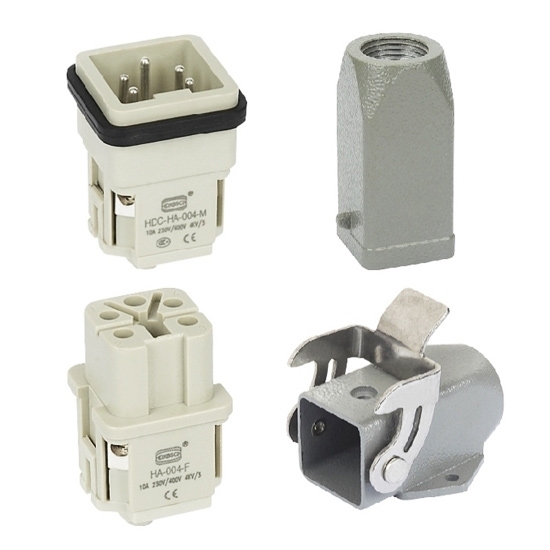

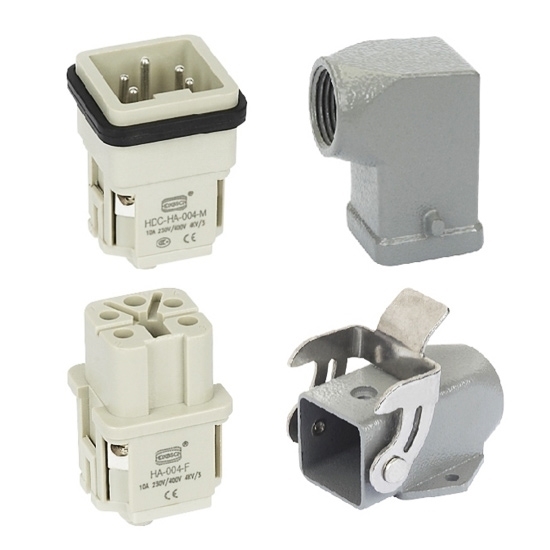

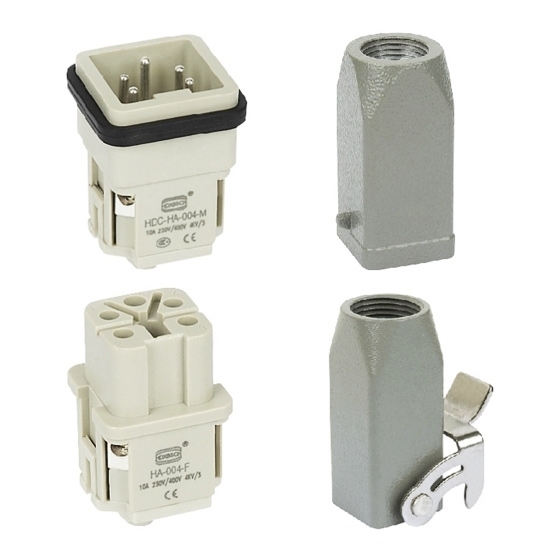

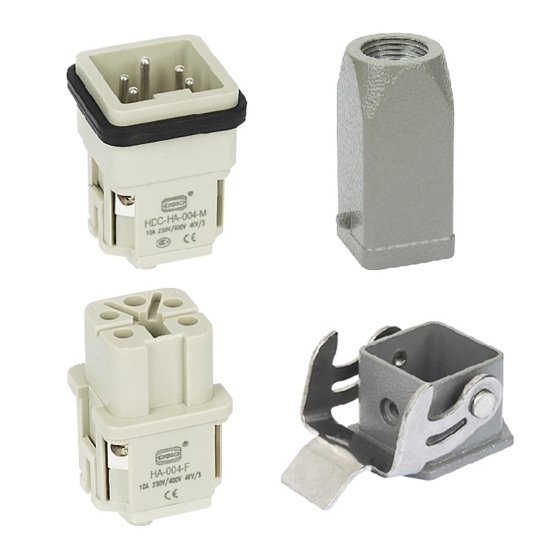

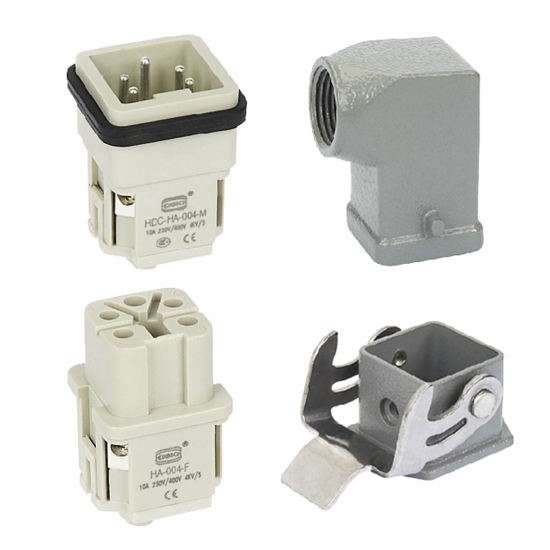

4 pin heavy duty connector with working voltage 250VAC and current 10A.

Specification:

Basic	Model	RDDLZ-HDCN-HA-004-1	RDDLZ-HDCN-HA-004-2	RDDLZ-HDCN-HA-004-3	RDDLZ-HDCN-HA-004-4	RDDLZ-HDCN-HA-004-5
	Shipping weight	1kg
	Standard	DIN EN 60 664-1, DIN EN 61 984
	Number of pins	4 pin + PE
	Certificate	CCC, CE, ROHS, RU, CSA, TUV
Inserts	Item	HA-004-M	HA-004-M	HA-004-M	HA-004-M	HA-004-M
	Working current	10A
	Working voltage	250V
	Rated pulse voltage urms	4kV
	Pollution degree	3 (C)
	Insulation resistance	≥10¹⁰Ω
	Material	Polycarbonate
	Working temperature Range	-40℃~+125℃ (-40℉~+257℉)
	Flammability according to UL94	V0
	Working voltage according to UL / CSA	600V
	Insertion / withdrawal cycles	≥500
Contacts	Item	HA-004-F	HA-004-F	HA-004-F	HA-004-F	HA-004-F
	Material	Copper alloy
	Surface treatment	Silver/ Gold plating
	Contact resistance	≤1mΩ
	Wiring form	Screw connection
	Wire specification	0.75-1.5mm² AWG 18-16
	Tightening torque	0.25N·m
Shell	Hood item	H3A-MTS-M20	H3A-MTG-M20	H3A-MTS-M20	H3A-MTG-M20	H3A-MTG-M20
	Hood thread	M20	M20	M20	M20	M20
	Housing item	H3A-MAG	H3A-MAG	H3A-MAGSV-M20	H3A-MAGSV-M20	H3A-MTGVB-M20
	Housing thread	-	-	M20	M20	M20
	Material	Cast zinc
	Surface treatment	Powder-coated, gray
	Interlocking element	Interlocking method: metal elastic pressing, material: stainless steel/galvanized iron
	Sealing element	NBR
	Applicable temperature range	-40℃~+125℃ (-40℉~+257℉)
	Flammability class	V0
	Protection class	IP65

Dimension (unit: mm):

Tips: Heavy duty connectors apply in the automotive assembly line
The automobile assembly line is an operation line for automotive production. Its operation line processes include welding, stamping, painting, powertrain and so on. It can improve the automation level of car manufacturers.
At present, almost all international assembly lines encounter problems such as security protection issues, maintenance issues, and model selection issues. Based on this, heavy-duty connectors perfectly solve such problems. At present, in terms of security protection, the connector protection class can reach IP65 / IP68, etc., which effectively prevents dust and pollution. In terms of maintenance, the heavy duty connector supports plug-and-play for maintenance, supports the production and assembly of components in advance and assembles outer and inner wires for convenient separately. Fast installation and maintenance will reduce installation errors. Not only that, for the cable size and length of the automotive wiring harness, but the connectors can also be pre-customized to meet customers' high-efficiency needs.
Heavy duty connectors are mainly used in the following devices of the automobile assembly lines: automobile body forming systems, welding robots, control cabinets, intelligent control systems, assembly line conveying systems, hoists, I-beam blank workshops, transmission beam adjustment systems, metal beams Combination system, etc.
