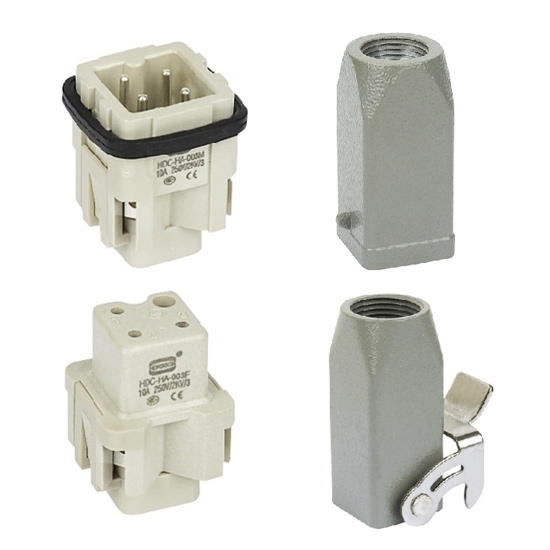

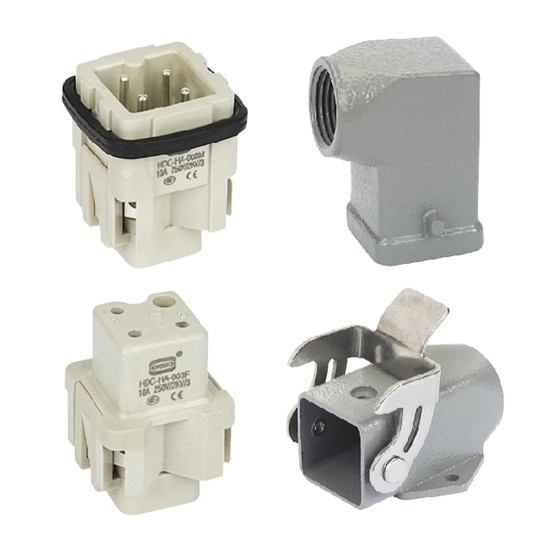

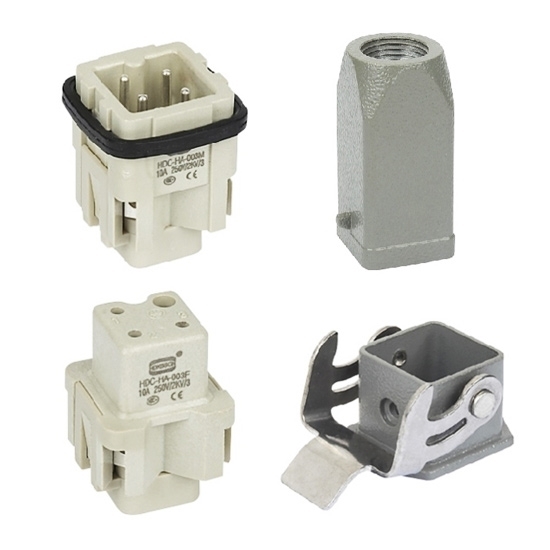

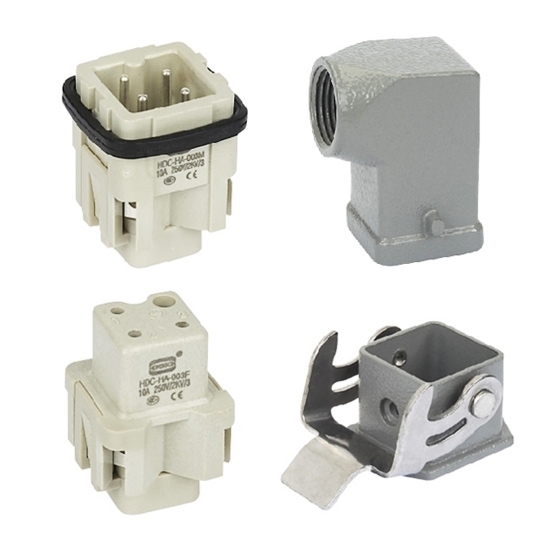

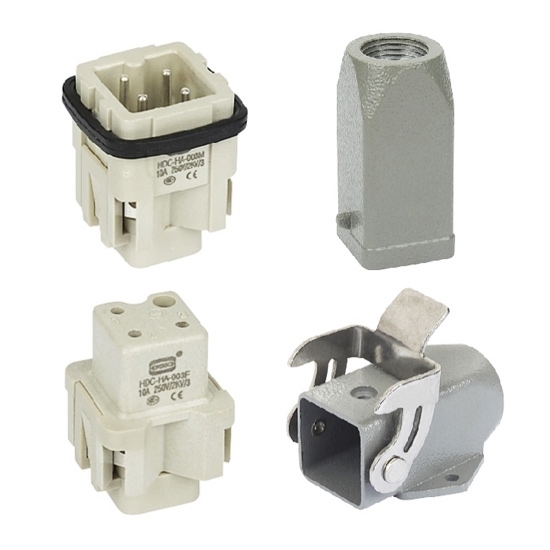

3 pin heavy duty connector with working voltage AC 250V and current 10A.

Specification:

Basic	Model	RDDLZ-HDCN-HA-003-1	RDDLZ-HDCN-HA-003-2	RDDLZ-HDCN-HA-003-3	RDDLZ-HDCN-HA-003-4	RDDLZ-HDCN-HA-003-5
	Shipping weight	1kg
	Standard	DIN EN 60 664-1, DIN EN 61 984
	Number of pins	3 pin + PE
	Certificate	CCC, CE, ROHS, RU, CSA, TUV
Inserts	Item	HA-003-M	HA-003-M	HA-003-M	HA-003-M	HA-003-M
	Working current	10A
	Working voltage	250V
	Rated pulse voltage urms	4kV
	Pollution degree	3 (C)
	Insulation resistance	≥10¹⁰Ω
	Material	Polycarbonate
	Working temperature Range	-40℃~+125℃ (-40℉~+257℉)
	Flammability according to UL94	V0
	Working voltage according to UL / CSA	600V
	Insertion / withdrawal cycles	≥500
Contacts	Item	HA-003-F	HA-003-F	HA-003-F	HA-003-F	HA-003-F
	Material	Copper alloy
	Surface treatment	Silver/ Gold plating
	Contact resistance	≤1mΩ
	Wiring form	Screw connection
	Wire specification	0.75-1.5mm² AWG 18-16
	Tightening torque	0.25N·m
Shell	Hood item	H3A-MTS-M20	H3A-MTG-M20	H3A-MTS-M20	H3A-MTG-M20	H3A-MTG-M20
	Hood thread	M20	M20	M20	M20	M20
	Housing item	H3A-MAG	H3A-MAG	H3A-MAGSV-M20	H3A-MAGSV-M20	H3A-MTGVB-M20
	Housing thread	-	-	M20	M20	M20
	Material	Cast zinc
	Surface treatment	Powder-coated, gray
	Interlocking element	Interlocking method: metal elastic pressing, material: stainless steel/galvanized iron
	Sealing element	NBR
	Applicable temperature range	-40℃~+125℃ (-40℉~+257℉)
	Flammability class	V0
	Protection class	IP65

Dimension (unit: mm):

Tips: What are the features of heavy duty connector?
Heavy duty connector has great advantages in structural design and material that makes the heavy duty connector stand out in terms of electrical performance. Its reliability in the electrical connection system cannot be achieved by traditional connection methods.

Achieve pre-installation: Pre-installation for large and complex circuits can greatly improve the efficiency of equipment installation and reduce the rate of wiring errors.
Heavy duty connector provides highly integrated connections, and the rich combination methods maximize the effective utilization of equipment space.
The heavy duty connector conveniently and efficiently implements the modular structure of each functional template block of the device, making the device convenient and safe for transportation, installation, maintenance and repair. Connectors are widely used in the field of power transmission and distribution.
The high protection class provided by heavy duty connectors (IP65, IP68) has unparalleled advantages for equipment connection systems in harsh environments. It provides effective protection in harsh environments such as sand, rain, cold, snow, oil, etc.
