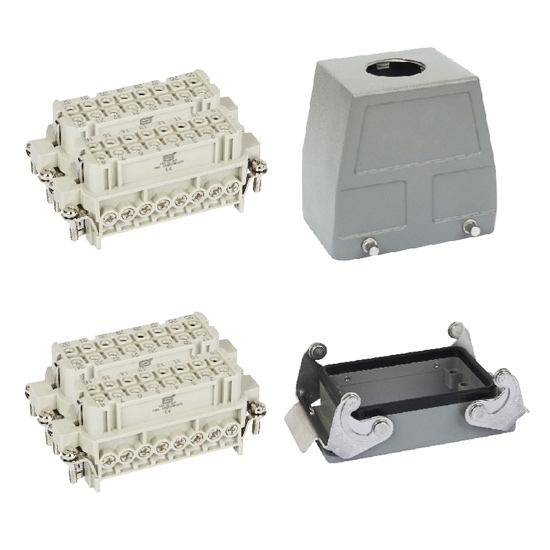

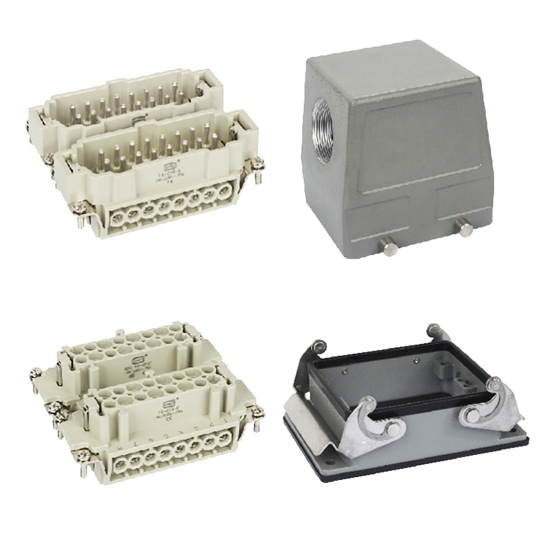

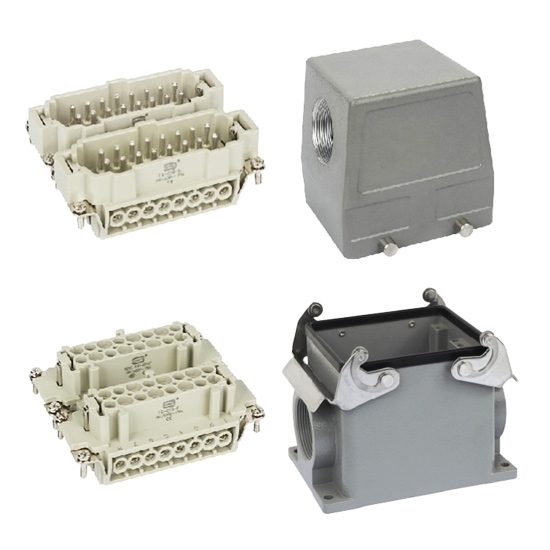

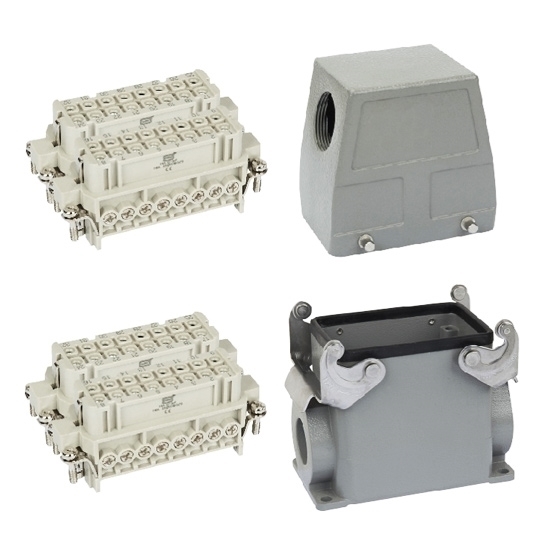

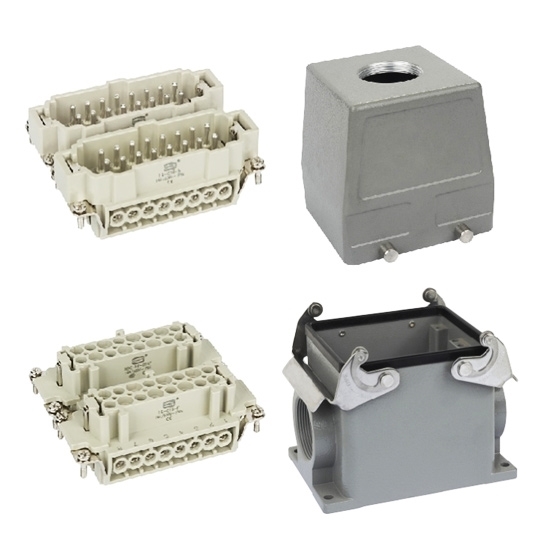

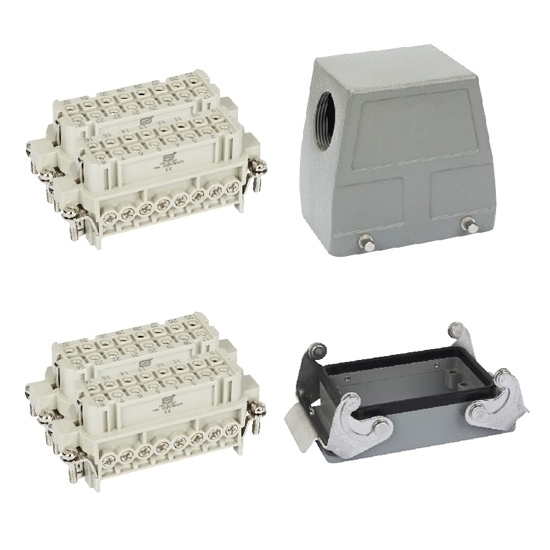

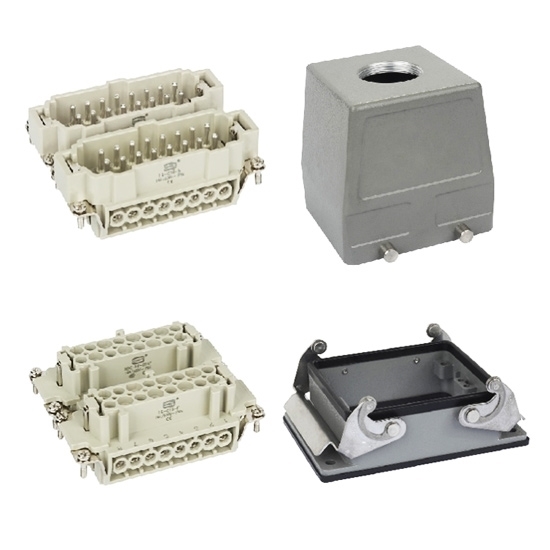

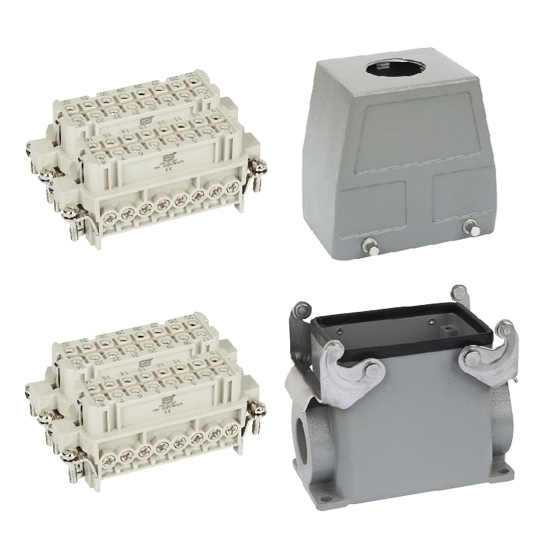

Heavy Duty Connector, 32 Pin, AC 250 Volt / AC 500 Volt, 16A

0 reviews • Write a review

from

$109.96

Ex Tax: $109.96

Stock: In Stock
Model: RDDLZ-HDCN-32P
Weight: 1.00
SKU: RDDLZ-HDCN-32P

Available Options

Model

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

32 pin heavy duty connector with working voltage AC 250 Volt / AC 500 Volt and current 16A.

Specification:

Basic	Model	RDDLZ-HDCN-HA-032-1	RDDLZ-HDCN-HA-032-2	RDDLZ-HDCN-HA-032-3	RDDLZ-HDCN-HA-032-4	RDDLZ-HDCN-HE-032-1	RDDLZ-HDCN-HE-032-2	RDDLZ-HDCN-HE-032-3	RDDLZ-HDCN-HE-032-4
	Shipping weight	1kg
	Standard	DIN EN 60 664-1, DIN EN 61 984
	Number of pins	2*(16 pin + PE)
	Certificate	CCC, CE, ROHS, RU, CSA, TUV
Inserts	Item	HA-016-M (1-16) HA-016-M (17-32)	HA-016-M (1-16) HA-016-M (17-32)	HA-016-M (1-16) HA-016-M (17-32)	HA-016-M (1-16) HA-016-M (17-32)	HE-016-M (1-16) HE-016-M (17-32)	HE-016-M (1-16) HE-016-M (17-32)	HE-016-M (1-16) HE-016-M (17-32)	HE-016-M (1-16) HE-016-M (17-32)
	Working current	16A
	Working voltage	250V	250V	250V	250V	500V	500V	500V	500V
	Rated pulse voltage urms	4kV	4kV	4kV	4kV	6kV	6kV	6kV	6kV
	Pollution degree	3 (C)
	Insulation resistance	≥10¹⁰Ω
	Material	Polycarbonate
	Working temperature Range	-40℃~+125℃ (-40℉~+257℉)
	Flammability according to UL94	V0
	Working voltage according to UL / CSA	600V
	Insertion / withdrawal cycles	≥500
Contacts	Item	HA-016-F (1-16) HA-016-F (17-32)	HA-016-F (1-16) HA-016-F (17-32)	HA-016-F (1-16) HA-016-F (17-32)	HA-016-F (1-16) HA-016-F (17-32)	HE-016-F (1-16) HE-016-F (17-32)	HE-016-F (1-16) HE-016-F (17-32)	HE-016-F (1-16) HE-016-F (17-32)	HE-016-F (1-16) HE-016-F (17-32)
	Material	Copper alloy
	Surface treatment	Silver/ Gold plating
	Contact resistance	≤1mΩ
	Wiring form	Screw connection
	Wire specification	0.75-2.5mm² AWG 18-14
	Tightening torque	0.5N·m
Shell	Hood item	H32A-TS-M25	H32A-TG-M25	H32A-TS-M25	H32A-TG-M25	H32B-TS-M32	H32B-TG-M32	H32B-TS-M32	H32B-TG-M32
	Hood thread	M25	M25	M25	M25	M32	M32	M32	M32
	Housing item	H32A-AG	H32A-AG	H32A-SGR-2M25	H32A-SGR-2M25	H32B-AG	H32B-AG	H32B-SGR-2M32	H32B-SGR-2M32
	Housing thread	-	-	2*M25	2*M25	-	-	2*M32	2*M32
	Material	Cast zinc	Cast zinc	Cast zinc	Cast zinc	Cast aluminum	Cast aluminum	Cast aluminum	Cast aluminum
	Surface treatment	Powder-coated, gray
	Interlocking element	Interlocking method: metal elastic pressing, material: galvanized iron/ stainless steel				Interlocking method: metal elastic pressing, material: galvanized iron
	Sealing element	NBR
	Applicable temperature range	-40℃~+125℃ (-40℉~+257℉)
	Flammability class	V0
	Protection class	IP65

Dimension for 32 pin 250 volt heavy duty connector (unit: mm):

Dimension for 32 pin 500 volt heavy duty connector (unit: mm):

Tips: Application of heavy duty connector in gearbox production line
The gearbox assembly production line is a non-synchronous flexible conveying line, which uses aluminium alloy profiles and has a beautiful overall appearance. It adopts a combination of standard sections and non-standard sections and has strong adaptability, stable operation, low noise, safety and reliability, easy operation and maintenance management. Most types of presses and assembly machines are on-line type, with accurate positioning and accurate press-fitting. By changing the tooling, they can be compatible with different types of products. Adopt advanced electrical control system, collect pallet data through code carrier and reader. Form information network through industrial Ethernet and PLC, store real-time collected production information in database, and automatically generate various reports to realize product Quality traceability, monitoring and management. Large LED display, real-time display of production information, equipment status, notifications, clock, etc.
The entire line construction of the customer is completed by the integrator, and after tedious assembly and debugging, it is transported to the gearbox manufacturer.
So the following points are necessary:

It needs to be separated during transportation. Wiring requirements are convenient for plugging.
Improve connection reliability.
Simplified equipment wiring.

The traditional solution uses a junction box to transfer signals and power supply. However, it is difficult to debug after the wires are unconnected and transported. By using the heavy-duty connector, not only the connection problem is solved, but also the convenient plugging enables customers to do more with less.
The common types of heavy duty connectors are 3 pin, 16 pin, 24 pin and 32 pin.
