2 KW High Torque AC Servo Motor, 7.7 Nm/22 Nm, 2500 Rpm

0 reviews • Write a review

from

$854.78

Ex Tax: $854.78

Stock: In Stock
Model: ATO130ST-M07725
Weight: 1.00
SKU: ATO130ST-M07725

Available Options

Short Description

With Matched Controller

Absolute Encoder

Motor Cable & Encoder Cable

Motor Encoder Type

With Brake

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

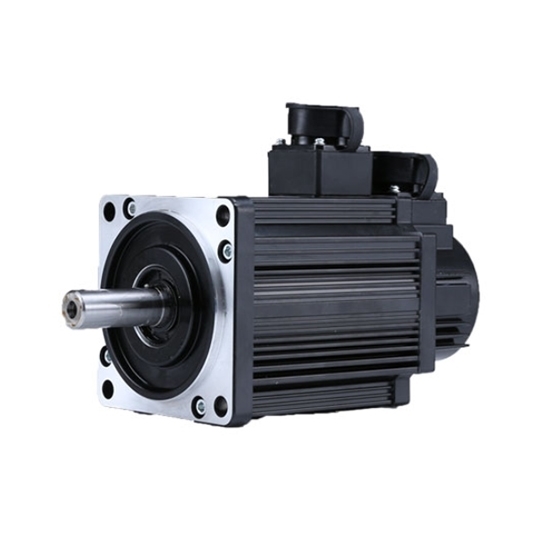

2 kW high torque servo motor, brushless design, 3-phase 220V AC voltage, 2500 rpm, max speed up to 2800 rpm. Heavy duty electric servo motor is 130mm square flange size, suitable for industrial automation, embroidery machines, printing machinery, CNC machine, wood carving and other fields.

Note: For 2 kW High Torque AC Servo Motor, RDDLZ Provides upgraded models with more powerful features. Please go to the page https://www.ato.com/2-kw-ac-servo-motor.

Specification

Basics	Model	RDDLZ130ST-M07725
	Matched Drive Model	RDDLZMG-1000 (Click it to the product page)
	Square Flange Size	130 mm
	Rated Power	2 kW
	Rated Voltage	three phase 220V AC
	Rated Current	7.5 A
	Rated Speed	2500 rpm
	Rated Torque	7.7 Nm
	Peak Torque	22 Nm
	Weight	8.5 Kg
	Length	192 mm
Technical Parameters	Voltage Constant	68 V/ 1000r/ min
	Torque Coefficient	1.03 N.m/ A
	Torque Inertia	1.53 x 10^-3 Kg.M²
	Line-Line Resistance	1.01 Ω
	Line-Line Inductance	2.94 mH
	Electrical Time-Constant	2.91 ms
	Encoder Line Number	2500 PPR
	Absolute Encoder	17 bit, 23 bit (Tamagawa brand)
	Insulation Class	Class B
	Safety Class	IP65
Environment	Temperature	-20℃ ~ +40℃
Environment	Humidity	<90%RH, (no dewing)

Dimension (unit: mm)

L (without brake): 192mm, L (with brake): 262mm

Details

Winding and Encoder Connection

1. For servo motor winding

Motor Winding Plug	Winding Lead	U	V	W	PE
Motor Winding Plug	Socket Number	2	3	4	1

2. For incremental encoder

Incremental Encoder Socket (15 Pin)	Signal Definition	5V	0V	B	Z-	U	Z	U-	A	V	W	V-	A-	B-	W-	PE
Incremental Encoder Socket (15 Pin)	Socket Number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1

3. For absolute encoder

Absolute Encoder Socket (7 Pin)	Signal Definition	E-	E+	SD-	0V	SD+	5V	PE
Absolute Encoder Socket (7 Pin)	Socket Number	2	3	4	5	6	7	1
