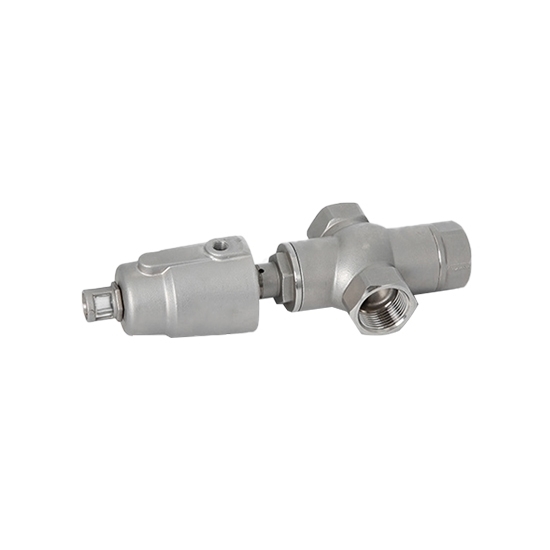

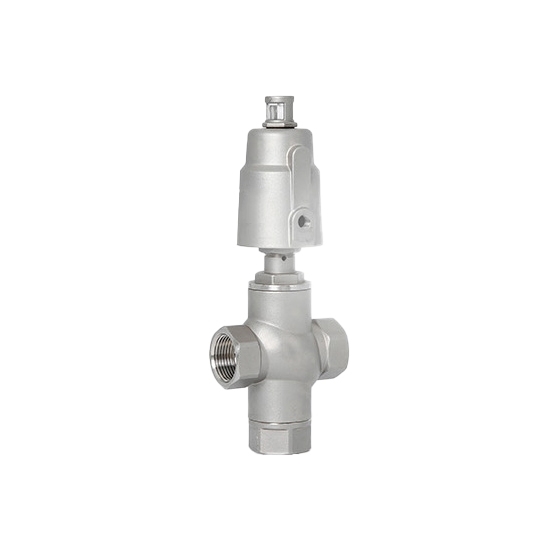

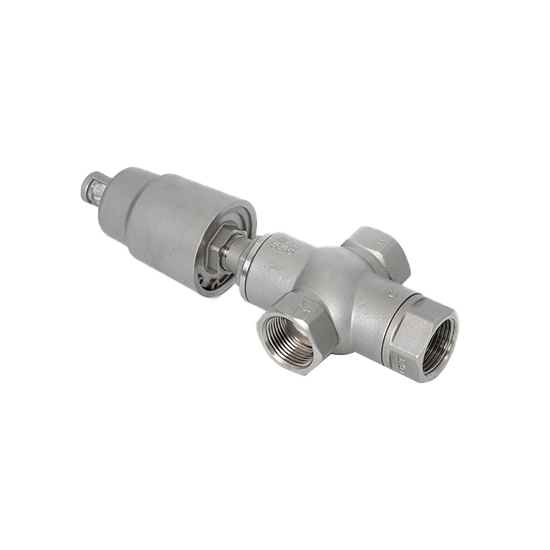

1/2" Pneumatic Angle Seat Valve, 3 Way

0 reviews • Write a review

from

$159.92

Ex Tax: $159.92

Stock: In Stock
Model: RDDLZ-S3-DN15
Weight: 1.00
SKU: RDDLZ-S3-DN15

Available Options

Valve Body Material

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This angle seat valve cannot be used for drinking water.

The seal material, PTFE, guarantees a secure and leak-free operation, while the 1/2" Pneumatic angle seat valve remains versatile in managing temperatures from -10℃ to +180℃ for the medium and -10℃ to +80℃ for ambient conditions.

Specification

Model	RDDLZ-S3-DN15
Work pressure	Max1.6MPa
Control pressure	0.3-0.8MPa
Control medium	Neutral gas or air
Body material	CF8M
Actuator material	CF8
Material	304 stainless steel
Seal material	PTFE
Medium temperature	-10℃~+180 ℃
Ambient temperature	-10℃~+80℃
Control type	Normally closed, Double acting with spring, Doubleacting with compressed air.
Connection	Thread
Applicable medium	Water, steam, oil, neutral gas or liquid, organic solvent, acid base solution, etc
Weight	3kg

Function

Pressure Date

Size	Actuator	lnterface	lnner hole (mm)	Flow rate A⟶B	KV (m2/h) A⟶C	Differential pressure range ∆P (MPa) A⟶B / A⟶C	Differential pressure range ∆P (MPa) C⟶A	Control pressure (MPa)
DN15	40	1/2"	14	4.1	4.9	0-1.6	1.2	0.4-0.6

Dimension (Unit:mm)

Size	Actuator	Q	C	R	G	A	K	L	SW	Weight(kg)
DN15	40	G1/8	50.5	27	1/2"	195	50	68	27	3

Tips: What are the key features of pneumatic angle seat valves?

Angled body design for a straight flow path.
Pneumatic actuation for fast and precise control.
Suitable for on/off and modulating control applications.
Versatile installation options.
Commonly used in industries like pharmaceuticals, food and beverage, water treatment, and chemical processing.
