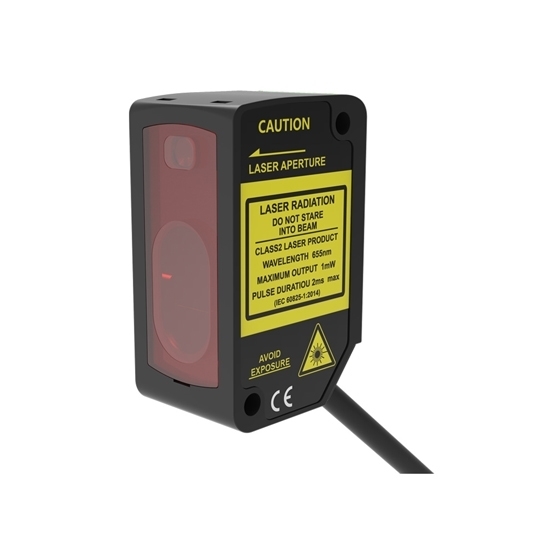

Laser Displacement Sensor, 50m-400m, 4-20mA/0-5V

0 reviews • Write a review

from

$456.01

Ex Tax: $456.01

Stock: In Stock
Model: RDDLZ-LASES-PDE
Weight: 1.00
SKU: RDDLZ-LASES-PDE

Available Options

Short Description

Output Signal

Measuring Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This micro laser displacement sensor uses a laser beam to measure the distance between the object and the sensor. 12...24V DC supply voltage, repeat accuracy up to 800μm, 50m/100m/400m measurement center distance, and 4-20mA or 0-5V output signal are available.

Specifications

Model	RDDLZ-PDE-CR50TGIU	RDDLZ-PDE-CR100TGIU	RDDLZ-PDE-CR400TGIU
Type	Analog Quantity + Switch Quantity
Measurement Center Distance	50mm	100mm	400mm
Measurement Range	±15mm	±35mm	±200mm
Full Scale (F.S.)	35-65mm	65-135mm	200-600mm
Power Supply Voltage	12...24V DC
Power Consumption	≤960mW
Load Current	100mA
Voltage Drop	<2V
Light Source Type	Red Laser (658±8nm); Laser Class: Class 2; Maximum Average Power: 1mW; Pulse Width: 450μs; Beam Angle: 0.06°; Frequency: 1.67kHz
Beam Diameter	About Φ70μm (at 50mm)	About Φ120μm (at 100mm)	About Φ500μm (at 400mm)
Resolution	10μm		100μm
Linear Accuracy②	±0.1%F.S.		±0.2%F.S. (Measurement Distance 200mm-400mm); ±0.3%F.S. (Measurement Distance 400mm-600mm)
Repeat Accuracy②	30μm	70μm	300μm@200mm-400mm; 800μm@400mm (Inclusive)-600mm
Output	Analog Quantity: 4-20mA (Load Resistance<300Ω)/0-5V (Load Resistance>5kΩ); Switch Quantity: NPN/PNP and NO/NC can be set.
Distance Setting	Button Setting
Response Time	<10ms
Dimensions	45mmx27mmx21mm
Display	OLED Display (Size: 18x10mm)
Temperature Drift	<0.03%F.S./℃		<0.04%F.S./℃
Indicator Light	Laser Working Indication: Green Light; Switch Output Indication: Yellow Light
Protection Circuit	Short Circuit Protection, Reverse Polarity Protection, Overload Protection
Built-In Function	Teaching Mode, Reference Value Fine-Tuning; Peak And Valley Value Retention; Zero Setting; Key Lock; Factory Reset; Chinese and English Switching; Energy Saving Mode, etc.
Use Environment	Working Temperature: -10...+45℃; Storage Temperature: -20...+60℃; Ambient Humidity: 35...85%RH (No Condensation)
Ambient Light Resistance	Incandescent Lamp: ≤3,000 lux; Sunlight Interference: ≤10,000 lux
Protection Level	IP65
Material	Casing: Zinc Alloy; Lens: Glass; Display: Glass
Vibration Resistance	10. ..55Hz, Double Amplitude 1.5mm, 0.5 Hours in Each of the Three Directions of X, Y, and Z
Impact Resistance	500m/s2 (about 50G), 3 Times in each of the Three Directions of X, Y, and Z
Connection Method	2m Composite Cable (0.2mm²)

Dimensions (Unit: mm)

Wiring

Tips for Using Laser Displacement Sensor

The maximum allowable power supply voltage of this laser displacement sensor is 10% of the rated voltage. Please confirm that the power supply voltage is less than the maximum allowable value before powering on.
It takes a certain amount of time for the sensor to be initialized from power on to normal detection. Please make sure that it is used for more than the initialization time after powering on.
When the sensor and the load use different power supplies, please make sure to turn on the power supply of the sensor first.
When the sensor is not in use, it is recommended to cut off the power supply to the load first, and then cut off the power supply to the sensor.
When installing the laser displacement sensor, do not subject the sensor to severe external force (such as hammering, etc.), which may damage the sensor's performance.
Avoid using thinners, alcohol, or other organic solvents when cleaning.
