5 KVA 100 KV AC DC Hipot Tester

Free Shipping

5 KVA 100 KV AC DC Hipot Tester

0 reviews • Write a review

from

$6,292.28

Ex Tax: $6,292.28

Stock: In Stock
Model: RDDLZ-HTGTB-5100
Weight: 1.00
SKU: RDDLZ-HTGTB-5100

Available Options

Input Voltage

Control Box

DC Meter

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

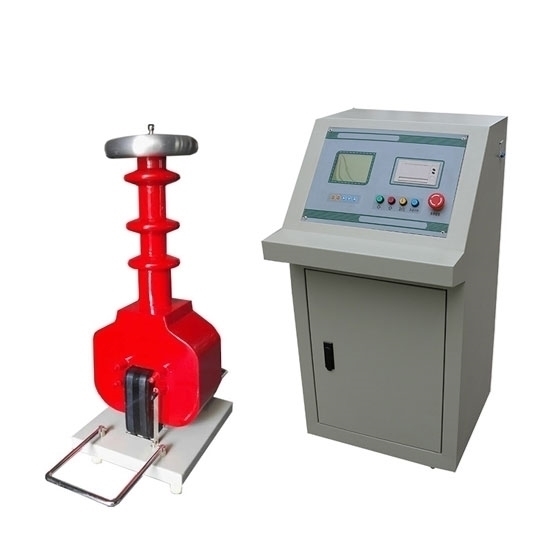

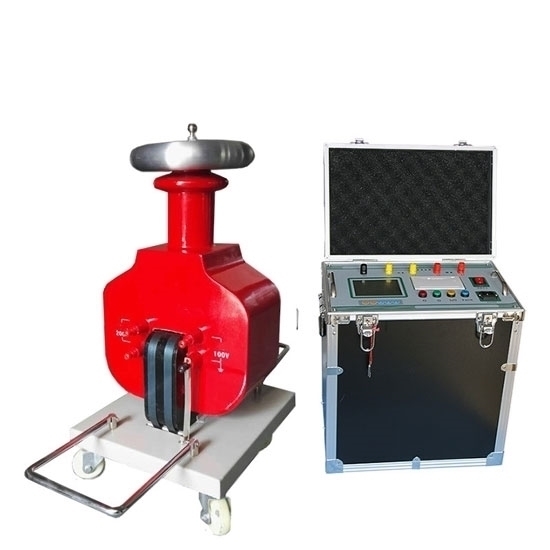

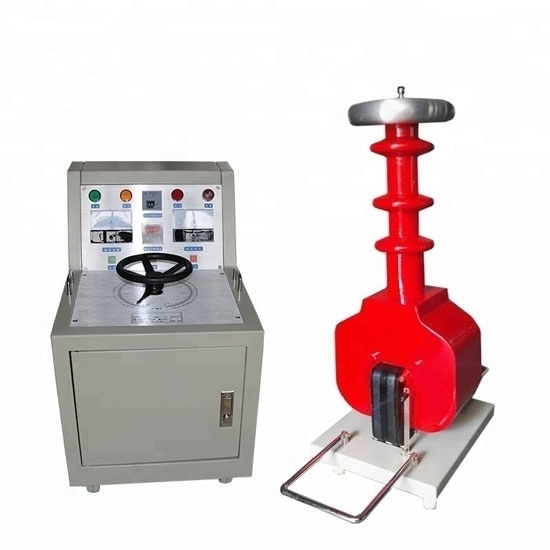

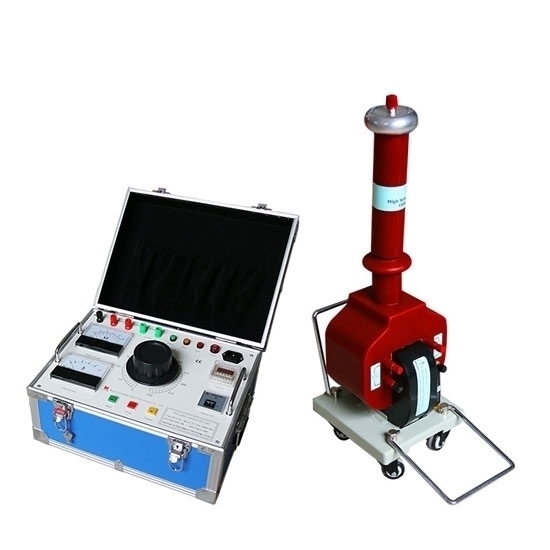

Low price AC DC hipot tester with superior quality, 5 kVA, 5 kV, it is mainly used for the voltage withstand test of polyethylene insulated power cable, digital display control, flexible and easy to use.

Note: AC leakage current meter is not provided.

Specifications

Model	RDDLZ-HTGTB-5100
Capacity	5 kVA
Input Voltage	110V/ 120V/ 220V
Frequency	50Hz/ 60Hz
Output Voltage	100 kV
Current	50 mA
DC Output	140 kV
Phase	1 Phase
Weight (Transformer+Control Box)	90 kg
Cooling Method	Dry
Effeciency	90%
Impedance Voltage	<12%
Surface Temperature Raising	< 55°C
No Load Current	< 4%
Output Voltage Waveform	Sine Wave
Usage	AC DC Hipot Tester
Warranty	12 Months
Temperature environment	0~40°C
Altitude	<2000m
Relative Humidity	<85%

Packing List

NO.	Description	Quantity
1	Hipot Test Set (1 Control Box + 5 kVA Dry Transformer)	1
2	Power Supply Cable	1
3	Earth Cable	1
4	Connecting Line	1
5	Fuse	3
6	Rectifying Diode	1
7	User Manual	1

Wiring Diagram

Tips: What is The Difference Between Hipot Test and Megger Test?

The hipot test and the megger test is substantially the same wiring. The withstand voltage test or the high voltage hipot test is a 100% line test used to verify the quality and electrical safety characteristics of the product. This type of test is carried out by subjecting the input line of the electrical product to a high voltage for a specified period of time, and the safety mechanism specifies the amount of high pressure for each product type.
The megger test is mainly to measure the equivalent resistance value formed by the related networks between the two end points and the periphery thereof. The megger test refers to the insulation resistance between the two parts of the conductor separated by an insulating material. In order to ensure the safety of electrical equipment operation, a minimum requirement is imposed on the insulation resistance between the conductors of different polarity (different phases) or between the conductor and the casing.
The megger test is measured by an insulation resistance tester (below 10000V) or an insulated shaker (below 2500V). Since the test voltage is relatively low, many insulation defects are not easily found, and the hipot test voltage is high, and it is easy to find high-voltage equipment.
