600 MHz Digital Oscilloscope, 2/4 Channels, 5 GSa/s

Free Shipping

600 MHz Digital Oscilloscope, 2/4 Channels, 5 GSa/s

0 reviews • Write a review

from

$8,369.58

Ex Tax: $8,369.58

Stock: In Stock
Model: RDDLZ-SCOPE-600M
Weight: 1.00
SKU: RDDLZ-SCOPE-600M

Available Options

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

600 MHz bandwidth digital oscilloscope with 2 (4) channels
Max. real-time sample rate up to 5 GSa/s
Standard 140 Mpts deep memory
Up to 180,000 waveforms per second capture rate
Up to 200,000 frames for waveform record and replay
A variety of trigger functions and automatic measurements with statistics
10.1 inch WVGA (800X480) display

Models and Key Specifications

Brand Name	RIGOL
Model	DS6062	DS6064
Number of Analog Channels	2	4
Bandwidth	600 MHz
Max. Real-time Sample Rate	Up to 5 GSa/s
Max. Memory Depth	Up to 140 Mpts
Max. Waveform Capture Rate	Up to 180,000 wfms/s per sencond
Real-time, Hardware Waveform Recording, Playback, and Analysis Functions	Analog channel up to 200,000 frames
Standard probes	600 MHz Bandwidth Passive Probes, 2 sets for 2 channel model, 4 sets for 4 channel model
Dimension	Width x Height x Depth = 399 mm x 255.3 mm x 123.8 mm
Weight	7 Kg (Package Included)
Packing Included	1 x Digital Oscilloscope; 2 (4) x Probes; 1 x USB Cable; 1 x Power Cord; 1 x Quick Guide

RIGOl DS6000 Series Digital Oscilloscope Specs PDF

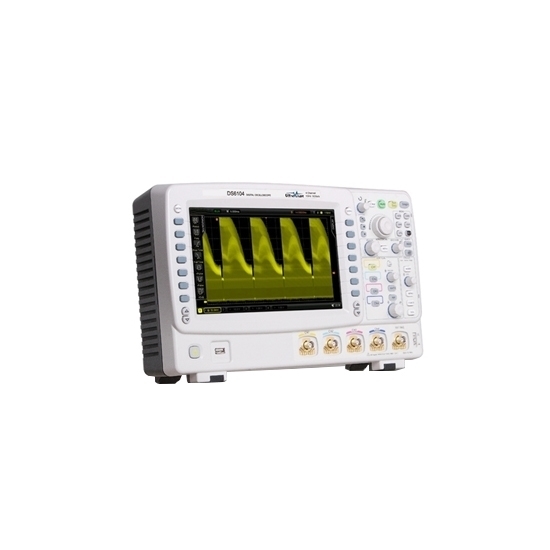

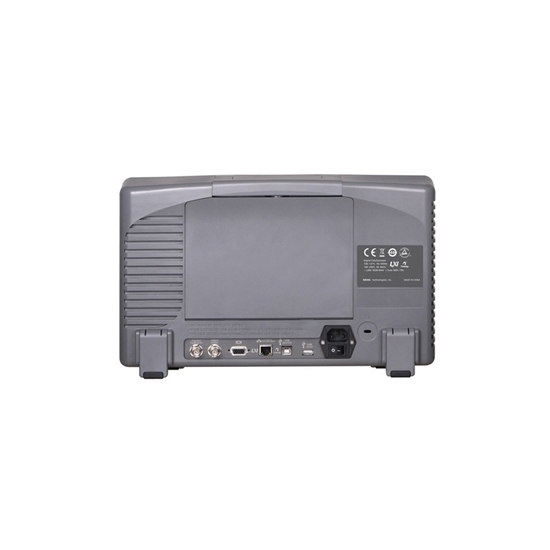

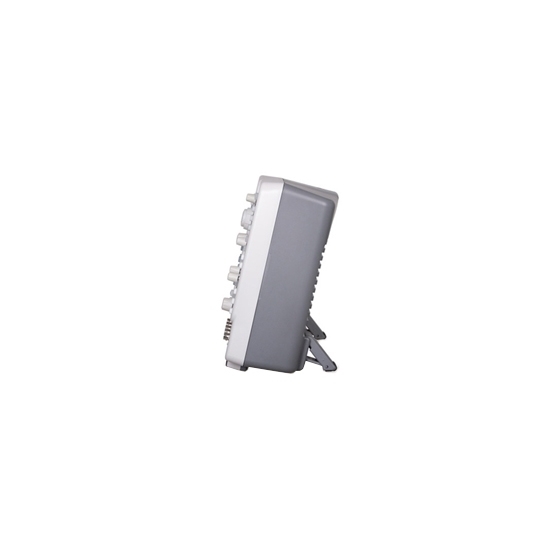

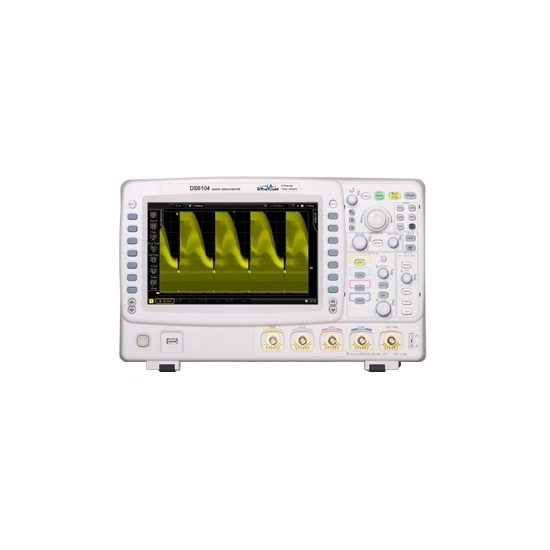

Digital Oscilloscope Detail

Tips: How does an oscilloscope measure voltage?
The oscilloscope can measure the voltage amplitude of various waveforms. It can measure both DC voltage and sinusoidal voltage as well as the amplitude of pulsed or non-sinusoidal voltages. What is more useful is that it can measure the voltage amplitude of each part of a pulse voltage waveform, such as the amount of impulse or the decrease in the top.

The comparative measurement method uses a known standard voltage waveform to compare with the measured voltage waveform to obtain the measured voltage value.

The measured voltage Vx is input to the oscilloscope's Y-axis channel, adjust the sensitivity of the Y axis, select the switch "V/div" and its fine adjustment knob, so that the screen displays a convenient measurement height Hx and make records, and “V/div” switch and the fine adjustment knob position remains unchanged. Remove the voltage under test, input a known adjustable standard voltage Vs into the Y-axis, and adjust the output amplitude of the standard voltage so that it shows the same amplitude as the measured voltage. At this point, the standard voltage output amplitude is equal to the measured voltage amplitude. The comparison method measures the voltage to avoid vertical system errors and errors, thereby improving the measurement accuracy.
