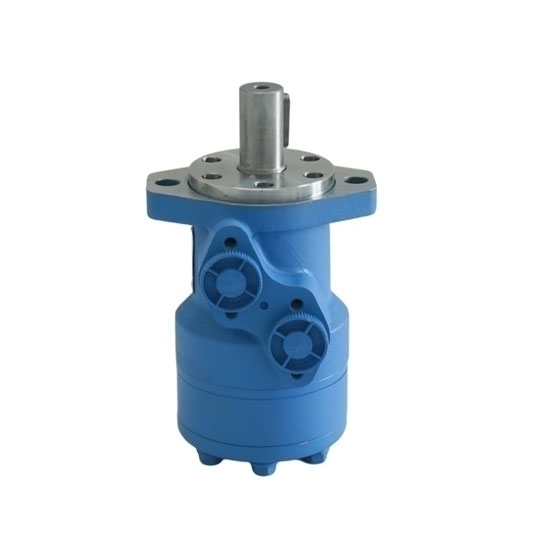

Hydraulic Orbital Motor, 370cc/rev

0 reviews • Write a review

from

$328.49

Ex Tax: $328.49

Stock: In Stock
Model: RDDLZ-HOM-370
Weight: 1.00
SKU: RDDLZ-HOM-370

Available Options

Short Description

Shaft Type

Flange Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Economical price hydraulic orbital motor is designed for disc distribution flow, which can provide improved performance at low speed and higher volumetric for the automatic compensate wear. It can be used on heavy vehicles and machinery in traction drive applications.

Specification

Model		RDDLZ-OMP-370
Shaft Type (Optional)		Flat Key, Splined
Flange Type (Optional)		2 Bolts, 4 Bolts
Displacement		370 cc/rev (370 cm³/rev)
Working Pressure		15 MPa
Flow	Continuous	57 LPM
	Intermittent	68 LPM
Max.Speed	Continuous	167 rpm
	Intermittent	199 rpm
Pressure	Continuous	90 ∆Bar
	Intermittent	100 ∆Bar
Torque	Continuous	450 Nm
	Intermittent	500 Nm
Weight		8.5kg

Note:

A simultaneous maximum torque and maximum speed are not recommended.
∆Bar refers to true pressure difference between inlet port and outlet port.
Continuous Rating means that the motor may be run continuously at these ratings.
Intermittent operation refers to that the motor running time must not exceed 10% per minute under this condition.

*To assure the best orbital motor life, run it for approximately one hour at 30% of rated pressure before application to full load. Be sure this motor is filled with fluid before any load applications.

Dimensions (Unit: mm)

L1=195mm

Hydraulic Orbital Motor Shaft (Unit: mm)

Flange Types (Unit: mm)

L=200mm

Details

Tips: How to improve the hydraulic orbital motor speed?

Increasing the flow rate can increase the speed of the hydraulic orbital motor, but it will more or less affect its service life. As long as it is within its rated power range, there is no problem. If the oil pressure reaches the rated pressure, increasing the speed will exceed the power range it can withstand. But it will damage the life of the cycloid hydraulic motor.

Increasing the flow rate can only increase the speed limit, like 500 rpm to 900 rpm. It is recommended to change the model of the motor, the cycloid motor flow is increased to a certain extent, the speed will not increase uncontrollably, the internal oil pressure increases, the internal leakage increases, the efficiency drops directly, or the motor is damaged.
