Factory price semi-rotary hand pump is a manually operated pump used to transfer fluids such as oil, diesel, and other liquids. This manual rotary pump consists of a rotating handle attached to a gear mechanism inside a pump housing.

Specification

• Model: RDDLZ-SRHP-YL5
• Dive Mode: Manual Semi Rotary
• Port Size: G1-1/2 inch Thread
• Suction Capacity: 6.5m
• Lift Capacity: 18m
• Flow Rate: 65 L/min
• Material: Cast Iron

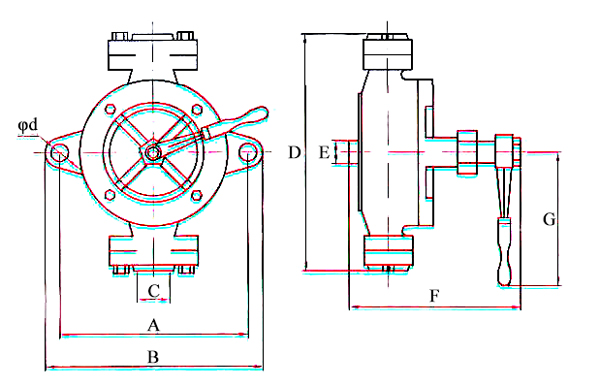

Dimension (Unit: mm)

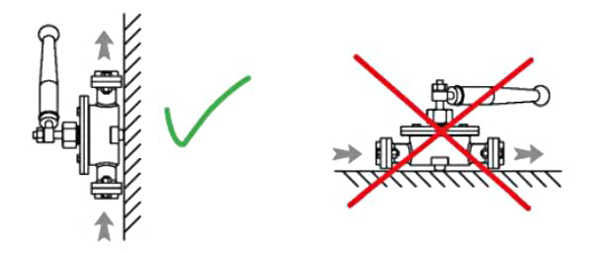

Installation

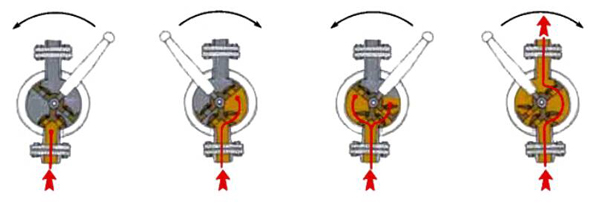

How to Use

Tips: Semi rotary hand pump applications

Semi-rotary hand pumps are versatile and reliable devices used across various industries for manual fluid transfer. These pumps are particularly effective in environments where power sources are unavailable or impractical. Common applications include transferring fuels, such as diesel and kerosene, lubricating oils, and other non-corrosive liquids from drums, tanks, and barrels.

In agricultural settings, semi-rotary hand pumps are used to dispense fertilizers, pesticides, and water, ensuring precise and controlled delivery. In the marine industry, they are vital for bilge pumping, fuel transfer, and general maintenance tasks. The construction industry benefits from these pumps for dispensing construction chemicals, solvents, and adhesives. Additionally, semi-rotary hand pumps are employed in remote or emergency situations where reliable, manual fluid transfer is essential.

Their simple design, ease of use, and robust construction make semi-rotary hand pumps a valuable tool in diverse applications, providing an efficient solution for fluid transfer needs in various settings.
