G2" Semi Rotary Hand Pump, 105 LPM

0 reviews • Write a review

from

$1,120.52

Ex Tax: $1,120.52

Stock: In Stock
Model: RDDLZ-SRHP-YL7
Weight: 1.00
SKU: RDDLZ-SRHP-YL7

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

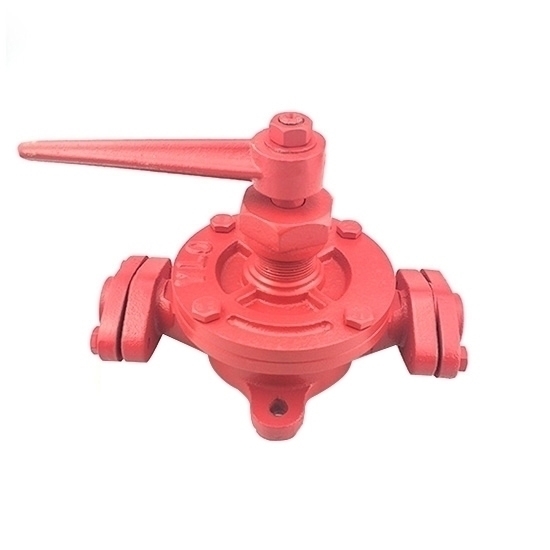

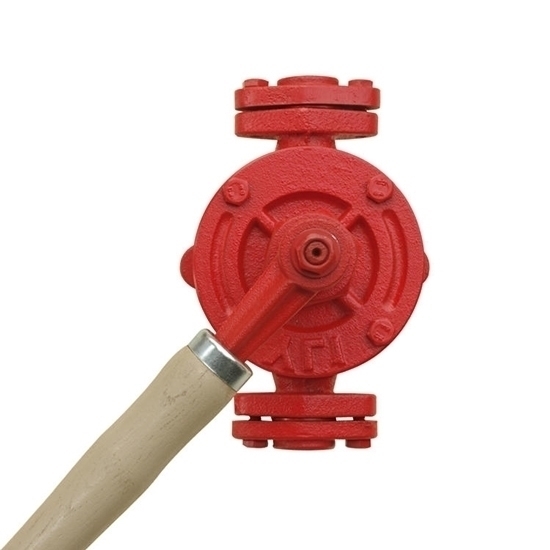

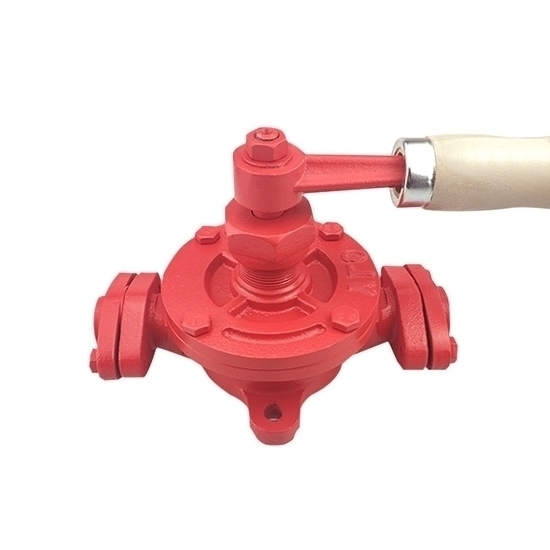

Semi rotary hand pump is a manual pump used for transferring fluids, typically in situations where electric pumps are not feasible or available. This hand operated rotary pump operates by manually rotating a handle, which creates suction and pressure to move oil, diesel, gasoline, and other fluids.

Specification

Model: RDDLZ-SRHP-YL7
Dive Mode: Manual Semi Rotary
Port Size: G2 inch Thread
Suction Capacity: 6.5m
Lift Capacity: 18m
Flow Rate: 105 L/min
Material: Cast Iron

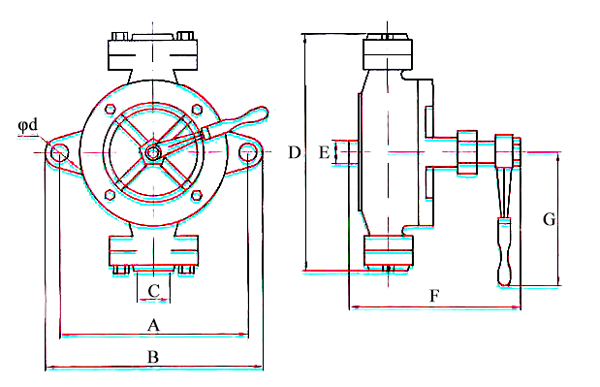

Dimension (Unit: mm)

A	B	C	D	E	F	G	φd
310	350	G2 inch	450	φ45	310	710	φ14

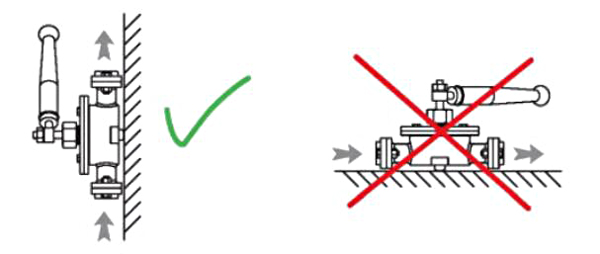

Installation

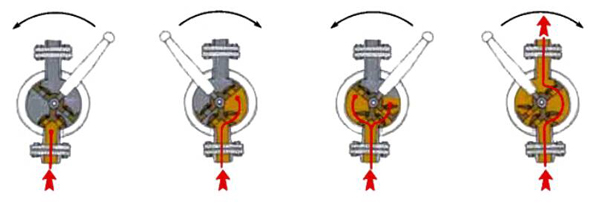

How to Use

Tips: What types of liquids can semi rotary hand pump be used to transfer?

A semi-rotary hand pump is typically designed for transferring a variety of liquids, including oils (such as motor oil, and hydraulic oil), diesel, kerosene, gasoline, alcohol-based fuels, and non-corrosive chemicals like mild acids and bases. These pumps are often made from materials like cast iron, aluminum, or stainless steel, which are compatible with these liquids. They are commonly used in agricultural, automotive, construction, and industrial settings where manual transfer of liquids is necessary. It's important to verify compatibility with specific liquids and ensure the pump's construction materials can withstand the chemical properties and viscosity of the substance being transferred.
