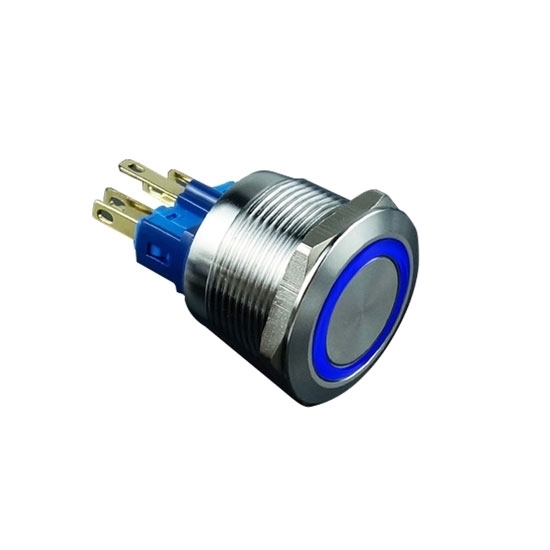

12V Momentary Push Button Switch, 1 NO + 1 NC

0 reviews • Write a review

from

$19.98

Ex Tax: $19.98

Stock: In Stock
Model: RDDLZ-PBS-12V
Weight: 1.00
SKU: RDDLZ-PBS-12V

Available Options

Short Description

Color

Action Form

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Momentary push button switch for sale, installation aperture size 22mm, normally open and normally closed, LED luminous color can be red, yellow, blue, green and white.

Specification:

Modle	RDDLZ-PBS-12V
LED Lamp Voltage	12V
Installation Size	22mm
Action Form	Reset/Self-lock
Contact Combination	1 NO + 1 NC, 2 NO + 2 NC (Can be customized)
Wiring	Insert
Rated Capacity	250V/3A, 12V/5A, 24V/3A
Lamp Bead Color	Red, yellow, blue, green, white
Explosion Proof Grade	IK08
Protection Level	IP65
Temperature Range	-25℃~80℃
Operating Pressure	3N~5N
Shell Material	Stainless Steel
Button Material	PC Plastic
Internal Moving Contact	Silver Alloy
Base Material	Nylon PA66
Nut Material	Copper Nickel Plated
Mechanical Life	1 Million Times
Electrical Life	200,000 Times
Weight	22.8g
Warranty	12 Months

12V Momentary Push Button Switch Dimension (unit: mm)

Momentary Push Button Pin Circuit Arrangement Diagram

Tips: What is a momentary push button switch?

The momentary button switch pushes the transmission mechanism according to the button to switch the circuit. The shell of the momentary button switch is made of metal material, which is not available in other types of button switches. The metal button switch realizes the function of turning on and off the current of electrical coils such as contactors in the control circuit through start and stop instructions.
