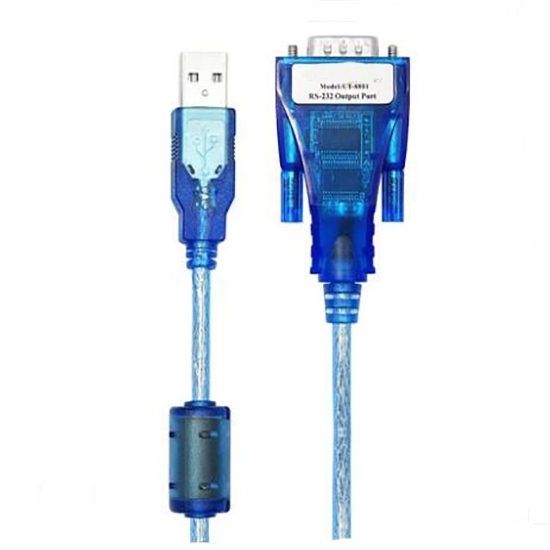

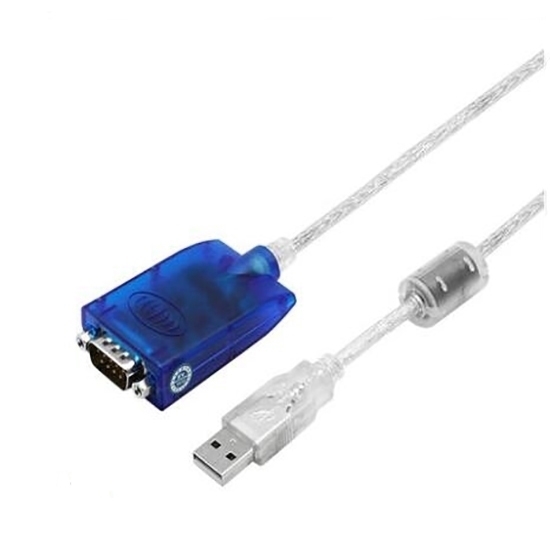

USB To RS232 Converter, 0.5m/ 1.5m/ 3m

0 reviews • Write a review

from

$58.57

Ex Tax: $58.57

Stock: In Stock
Model: RDDLZ-UT-880
Weight: 1.00
SKU: RDDLZ-UT-880

Available Options

Short Description

Length

Fix Way

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price USB to RS232 converter cable with VCC, DATA-, DATA+, GND, FG USB signal, DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI RS-232 signa, transmission distance 5m for RS-232 port, no more than 5m for USB port.

Specification

Model	RDDLZ-UT-880
USB signal	VCC, DATA-, DATA+, GND, FG
RS-232 signal	DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI
Length	0.5m/ 1.5m/ 3m
Working mode	Asynchronous, point to point
Direction control	Adopts traffic direction auto-control technology
Baud rate	300-460,800bps auto-detect serial signal
Load capacity	Support point-to-point communication
Transmission distance	5m for RS-232 port, no more than 5m for USB port
Port protection	±15KV ESD protection
Port	USB-A male, DB9 male
Signal indication	LEDs for indicating PWR TXD, and RXD activity
Transmission media	Twisted-pair or shielded cable
Operating temperature	-25℃ to 70℃
Relative humidity	5% to 95%
Supports	Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux
Outer size (LWH)	1500mm36mm16mm
Weight	1kg
Certificate	RoHS, CE, FC
Warranty	12 months

Dimension (mm)

Tips: What is USB Converter?

USB to Rs232 serial port is to realize the conversion between the computer's USB interface to the universal serial port. It provides a fast channel for computers without a serial port, and the use of a USB-to-serial device is equivalent to turning a traditional serial device into a plug-and-play USB device. As the most widely used USB interface, one of the indispensable communication interfaces for every computer, its biggest feature is to support hot plugging, plug and play. The transmission speed is fast. In order to simplify the complicated problem, you can use the USB to serial port module. This module can be regarded as a USB2.0 protocol converter, which converts the computer's USB2.0 interface into a transparent parallel bus, just like a microcontroller bus.
