Nema 6 Micro Stepper Motor, 3V/ 5V, 2 Phase, Bipolar

0 reviews • Write a review

from

$35.69

Ex Tax: $35.69

Stock: In Stock
Model: RDDLZ-MGSTEP-6352
Weight: 1.00
SKU: RDDLZ-MGSTEP-6352

Available Options

Rated Current

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

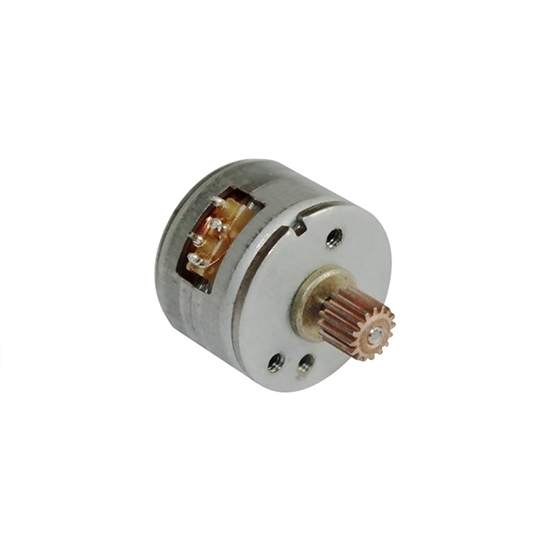

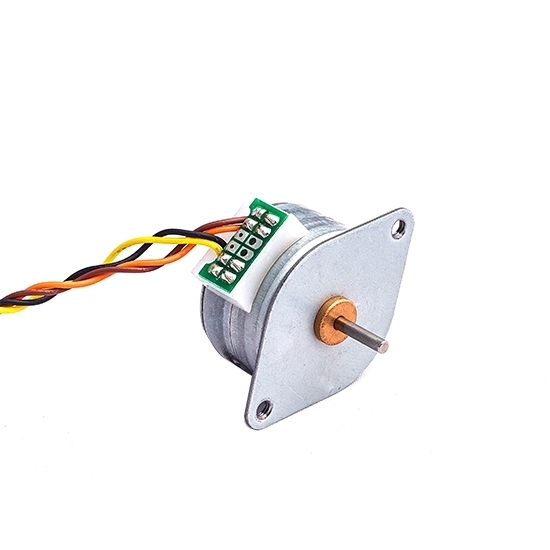

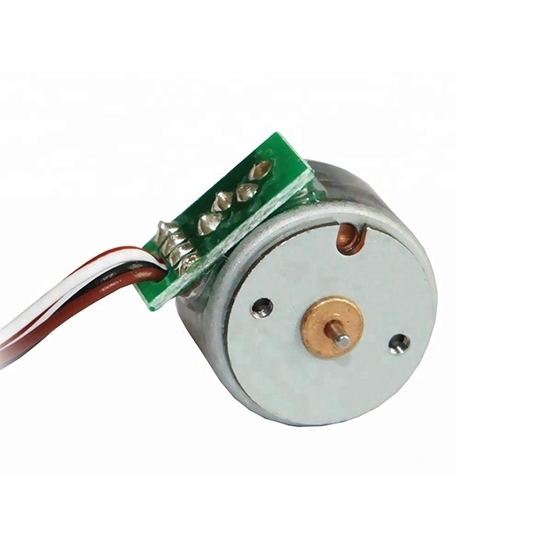

Micro stepper motor has size of Nema 6 (Ф15mm). Optional voltage DC 3V/5V, current 0.16~0.5Amp, resistance 10/15Ω, stepping angle 18°. 2 phase miniature bipolar stepper motor with metal gear, suitable for medical equipment, printer, scanner, automotive meter, gas range, sewing machine, security systems, optical fiber welding equipment, etc.

Specification Datasheet

Model	RDDLZ-SM1519	RDDLZ-SM1566	RDDLZ-SM1568
Rated Voltage	3V	5V	5V
Rated Current	0.2A	0.16A	0.5A
Resistance	15Ω	15Ω	10Ω
Phase	2 Phase	2 Phase	2 Phase
Stepping Angle	18°	18°	18
Excitation Method	2	2	2
Pull-in Torque	0.5 mN-m (200 pps)	1.0 mN-m (500 pps)	1.3 mN-m (300 pps)
Pull-out Torque	0.6 mN-m (200 pps)	1.4 mN-m (500 pps)	1.6 mN-m (300 pps)
Holding Torque	1.4 mN-m (0 pps)	2.3 mN-m (0 pps)	2.6 mN-m (0 pps)
Max. Continuous Response Frequency	560 pps	1100 pps	1500 pps
Max. Starting Frequency	500 pps	900 pps	1000 pps
Drive Mode	Bipolar Drive
Ambient Temperature	0℃~55℃
Insulation Resistance	500VDC 100MΩ min
Insulation Grade	E

Phase Sequence Excitation & Dimensions Diagram (Unit: mm)

3V 0.2A Micro Stepper Motor (RDDLZ-SM1519)

Connector PIN Location
PIN No.	Color	CCW←→CW (Seen from flange side)				Phase
1	Red	ON	-	-	ON	A
2	Blue	-	-	ON	ON	B
3	Yellow	-	ON	ON	-	A
4	Black	ON	ON	-	-	B

5V 0.16A Micro Stepper Motor (RDDLZ-SM1566)

Connector PIN Location
PIN No.	Color	CCW←→CW (Seen from flange side)				Phase
1	Brown	-	ON	ON	-	A
2	Black	ON	-	-	ON	A
3	White	-	-	ON	ON	B
4	Red	ON	ON	-	-	B

5V 0.5A Micro Stepper Motor (RDDLZ-SM1568)

Connector PIN Location
PIN No.	Color	CCW←→CW (Seen from flange side)				Phase
1	-	ON	-	-	ON	A
2	-	-	-	ON	ON	B
3	-	-	ON	ON	-	A
4	-	ON	ON	-	-	B

Details

Tips: How to install Nema 6 micro stepper correctly?

Wire distribution of the Nema 6 micro stepper needs to be straightened and not bent, otherwise it will cause problems such as poor electrical conductivity inside the motor.
In the process of installing Nema 6 micro stepper, pay attention to protect the DC motor from impact. When installing structural parts on the output shaft of DC motor, it is not allowed to directly hit or press on the output shaft.
Do not forcefully rotate the gear from the shaft end of Nema 6 micro stepper, otherwise the gear will be damaged. When fixing the transmission structure with adhesive on the reducer output shaft, the bearing of reducer cannot be adhered.
