Nema 10 Micro Stepper Motor, 6V/ 24V, 15 Degree, Bipolar

0 reviews • Write a review

from

$49.85

Ex Tax: $49.85

Stock: In Stock
Model: RDDLZ-MGSTEP-10624
Weight: 1.00
SKU: RDDLZ-MGSTEP-10624

Available Options

Short Description

Rated Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

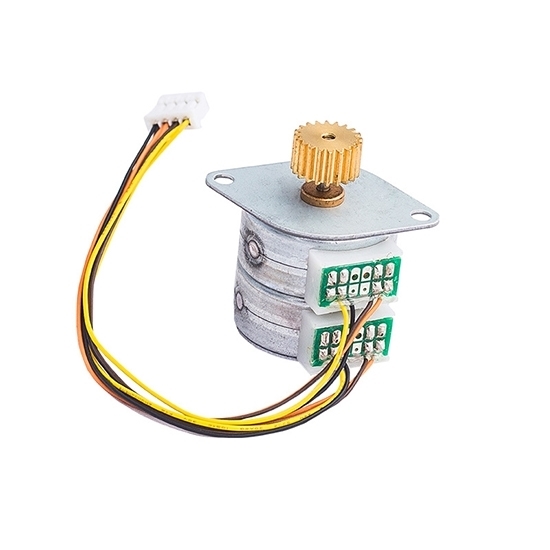

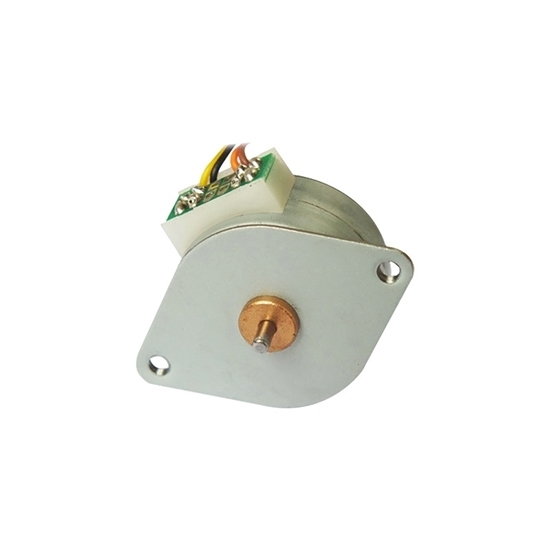

Nema 10 micro stepper motor works at 2-phase DC 6V/ 24V. Rated current 0.2Amp/0.35Amp, resistance 10~18Ω, optional stepping angle 7.5°/15°. Miniature stepper motor for sale, with metal gear and bipolar drive, factory price.

Specification Datasheet

Model	RDDLZ-SM2501	RDDLZ-SM2502
Rated Voltage	6V	24V
Rated Current	0.2A	0.35A
Resistance	10Ω	16Ω
Phase	2 Phase	2 Phase
Stepping Angle	7.5°	15°
Excitation Method	2	2
Pull-in Torque	6.0 mN-m (200 pps)	12.5 mN-m (500 pps)
Pull-out Torque	6.5 mN-m (700 pps)	16 mN-m (500 pps)
Holding Torque	13.0 mN-m (0 pps)	26.0 mN-m (0 pps)
Max. Continuous Response Frequency	650 pps	1300 pps
Max. Starting Frequency	600 pps	650 pps
Drive Mode	Bipolar Drive
Ambient Temperature	0℃~55℃
Insulation Resistance	500VDC 100MΩ min
Insulation Grade	E

Phase Sequence Excitation & Dimensions Diagram (Unit: mm)

6V 0.2A Micro Stepper Motor (RDDLZ-SM2501)

Connector PIN Location
PIN No.	Color	CCW←→CW (Seen from flange side)				Phase
1	Orange	ON	ON	-	-	B
2	Yellow	-	-	ON	ON	B
3	Brown	-	ON	ON	-	A
4	Black	ON	-	-	ON	A

24V 0.35A Micro Stepper Motor (RDDLZ-SM2502)

Connector PIN Location
PIN No.	Color	CCW←→CW (Seen from flange side)				Phase
1	Orange	ON	ON	-	-	B
2	Yellow	-	-	ON	ON	B
3	Brown	-	ON	ON	-	A
4	Black	ON	-	-	ON	A

Details

Tips: The noise source of Nema 10 micro stepper motor.

The noise caused by the internal electromagnetic of Nema 10 micro stepper motor. Tooth harmonic noise is caused by improper cooperation between stator, rotor eccentricity and slot, as well as rotor imbalance.
Mechanical noise is a kind of frictional sound produced by mechanical parts of Nema 10 micro stepper motor such as bearings and bores.
The noise and whistle noise caused by the air duct. Fan rotation causes the gas to pulsate periodically. The air current hits the solid object and makes a monotonous sound. When the fan blades roll, the surrounding air emits a kind of vortex sound, and its frequency spectrum is relatively wide.
