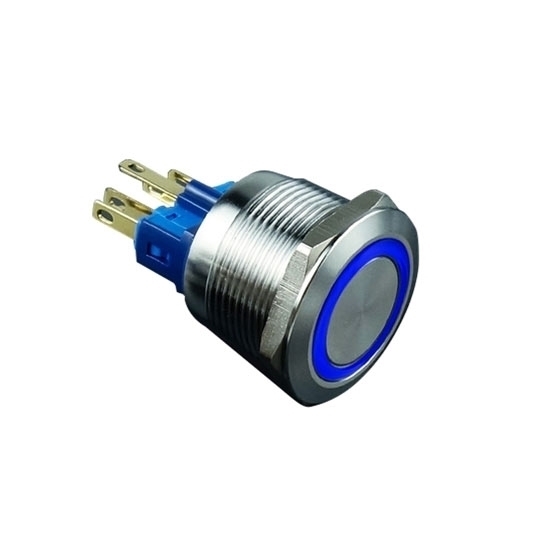

220V Momentary Push Button Switch, 1 NO + 1 NC

0 reviews • Write a review

from

$19.98

Ex Tax: $19.98

Stock: In Stock
Model: RDDLZ-PBS-220V
Weight: 1.00
SKU: RDDLZ-PBS-220V

Available Options

Short Description

Color

Action Form

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low cost waterproof momentary push botton switch, 220 volt, installation hole size 22mm, 1 NO + 1NC, electrical life 200 thousand times, mechanical life 1,000,000 cycles.

Specification:

Modle	RDDLZ-PBS-220V
LED Lamp Voltage	220V
Installation Size	22mm
Action Form	Reset/Self-lock
Contact Combination	1 NO + 1 NC, 2 NO + 2 NC (Can be customized)
Wiring	Insert
Rated Capacity	250V/3A, 12V/5A, 24V/3A
Lamp Bead Color	Red, yellow, blue, green, white
Explosion Proof Grade	IK08
Protection Level	IP65
Temperature Range	-25℃~80℃
Operating Pressure	3N~5N
Shell Material	Stainless Steel
Button Material	PC Plastic
Internal Moving Contact	Silver Alloy
Base Material	Nylon PA66
Nut Material	Copper Nickel Plated
Mechanical Life	1 Million Times
Electrical Life	200,000 Times
Weight	22.8g
Warranty	12 Months

12V Waterproof Momentary Push Button Switch Dimension (unit: mm)

Momentary Push Button Pin Circuit Arrangement Diagram

Types of button switches

1. Protective button: A button with a protective shell that can prevent the internal button parts from being mechanically damaged or people touching the live part. Its code is H.
2. Movable break button: Under normal conditions, the switch contact is a kind of button that is connected.
3. Moving and closing button: Under normal conditions, the switch contact is a kind of button that is disconnected.
4. Movable on/off button: Under normal conditions, the switch contacts have both on and off buttons.
5. Illuminated button: The button is equipped with a signal light, in addition to issuing operation commands + also doubles as a signal indicator, its code is D.
6. Action click button: that is, mouse click button.
7. Explosion-proof button: a button that can be used in places containing explosive gas and dust without causing explosion, its code name is B.
8. Anticorrosive button: It can prevent the intrusion of chemical corrosive gas, and its code is F.
9. Waterproof button: with a sealed shell to prevent rainwater from intruding, its code name is S.
10. Emergency button: There is a large red mushroom button head protruding outside, which can be used as a button to cut off the power in an emergency, and its code is J or M.
11. Open button: a button that can be used to be embedded and fixed on the panel of a switch board, control cabinet or console, and its code is K.
12. Interlocking button: A button with multiple contacts interlocking with each other, and its code is C.
13. Knob button: the rotary operation contact with the handle. There are two positions on and off, generally a type of panel-mounted button, and its code name is X.
14. Key-type button: A button that can be operated by inserting and rotating the key to prevent misoperation or for special personnel to operate. Its code is Y.
15. Self-holding button: A button with a self-holding electromagnetic mechanism inside the button, and its code name is z.
16. Combined button: a button with multiple button combinations, its code name is E.
