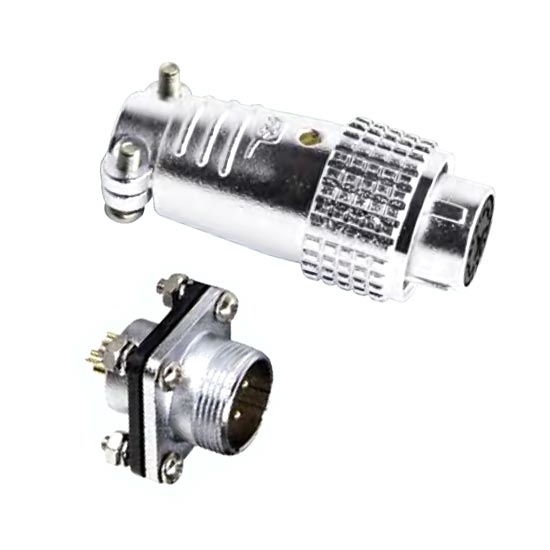

Circular Connector, 2/3/4/5/6/7/8/9 Pin, M18

0 reviews • Write a review

from

$50.63

Ex Tax: $50.63

Stock: In Stock
Model: RDDLZ-CIRCN-P16
Weight: 1.00
SKU: RDDLZ-CIRCN-P16

Available Options

Short Description

Item

Number of Pins

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Circular connector has 2/3/4/5/6/7/8/9 pin to select.

Specification:

Model	RDDLZ-CIRC-P16
Weight	0.5kg
Coupling mode	Threaded coupling
Shell material	Zinc base alloys with chromeplate
Insert material	Bakelite
Contact material	Copper (silver plating or gold plating)
Termination	Solder
Mating cycle	500 times
Temperature range	-20~+85℃
Cable diameter	≤Φ10mm
Protection class	IP55

Technology parameter:

Number of pins	2	3	4	5	6	7	8	9
Rated current/voltage	10A-150V	10A-150V	5A-125V	5A-125V	5A-125V	5A-125V	3A-125V	3A-125V
Operating voltage	AC 250V	AC 250V	AC 200V	AC 200V	AC 200V	AC 200V	AC 200V	AC 200V
Withstanding voltage (in 1 minute)	AC 1500V	AC 1500V	AC 1500V	AC 1500V	AC 1500V	AC 1500V	AC 1500V	AC 1500V
Insulation resistance at DC 500V (MΩ)	2000	2000	2000	2000	1500	1500	1500	1500
Contact resistance at 1A (MΩ)	10	10	10	10	10	10	10	10
Solder cup diameter Ф (mm)	1.7	1.7	1	1	1	1	1	1
Pin diameter Ф (mm)	1.6	1.6	1	1	1	1	1	1

Pin assignments:

Dimensional drawing (unit: mm):

Note: Dust cap is not in the packing list.
Tips: Coupling mode of circular connector
Circular connector has four coupling modes, such as threaded coupling, bayonet coupling, push-pull coupling and card locked coupling.

Threaded coupling is the most common coupling mode and has the advantages of simple process, low manufacturing cost and wide range of application.
Features: not suitable for rapid plugging and pulling, no in-place warning sound.
Bayonet connection has a rapid connection speed owing to its long screw lead of three bayonet groove. So it can achieve rapid connection and separation.
Features: small operation space, rapid plugging and pulling, in-place warning sound.
Push-pull coupling is the most rapid speed among the four coupling mode. It only need to rectilinear move to achieve connection, separation and locking. It is only suitable for the connectors with a small separating force.
Features: small operation space, can achieve rapid plugging and pulling, and achieve the high-density installation of multiple connectors.
Card locked coupling has good electromagnetic interference resistant performance and blind-mate function. But its range of application is limited by its complex process, high manufacturing cost and big shape.
Features: rapid plugging and pulling, in-place warning sound.
