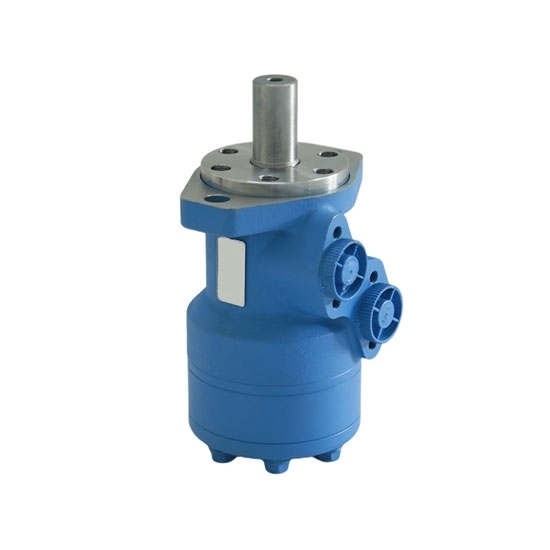

Hydraulic Orbital Motor, 100cc/rev

0 reviews • Write a review

from

$319.39

Ex Tax: $319.39

Stock: In Stock
Model: RDDLZ-HOM-100
Weight: 1.00
SKU: RDDLZ-HOM-100

Available Options

Short Description

Shaft Type

Flange Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price hydraulic orbital motor with high performance shaft, can bear high pressure, high speed and high radial force. Mounting flanges of 2 bolts and 4 bolts, easy to install.

Specification

Model		RDDLZ-OMP-100
Shaft Type (Optional)		Flat Key, Splined
Flange Type (Optional)		2 Bolts, 4 Bolts
Displacement		100 cc/rev (100 cm³/rev)
Working Pressure		15 MPa
Flow	Continuous	57 LPM
	Intermittent	68 LPM
Max.Speed	Continuous	558 rpm
	Intermittent	669 rpm
Pressure	Continuous	124 ∆Bar
	Intermittent	138 ∆Bar
Torque	Continuous	154 Nm
	Intermittent	173 Nm
Weight		7kg

Note:

A simultaneous maximum torque and maximum speed are not recommended.
∆Bar refers to true pressure difference between inlet port and outlet port.
Continuous Rating means that the motor may be run continuously at these ratings.
Intermittent operation refers to that the motor running time must not exceed 10% per minute under this condition.

*To assure the best orbital motor life, run it for approximately one hour at 30% of rated pressure before application to full load. Be sure this motor is filled with fluid before any load applications.

Dimensions (Unit: mm)

L1=149mm

Hydraulic Orbital Motor Shaft (Unit: mm)

Flange Types (Unit: mm)

L=156mm

Details

Tips: Advantages of hydraulic orbital motors

The hydraulic orbital motor is a small, low-speed, high-torque hydraulic motor with a stator and rotor pair with one-shaft distribution and inserts. The advantages are as follows:

The orbit motor is small in size and light in weight, and its dimensions are much smaller than other types of hydraulic motors with the same torque.
Wide speed range, stepless speed regulation, minimum stable speed up to 15 rpm, convenient installation and arrangement, low investment cost.
It can be used in series or parallel in the hydraulic system.
The rotation inertia is small, and easy to start under load, both forward and reverse rotation can be used, and there is no need to stop when commutation.
