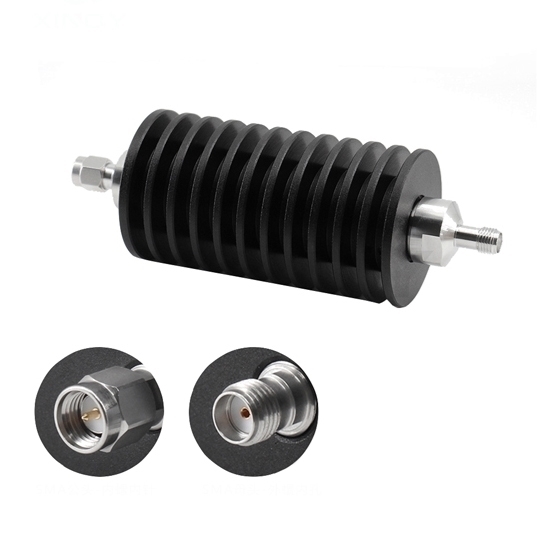

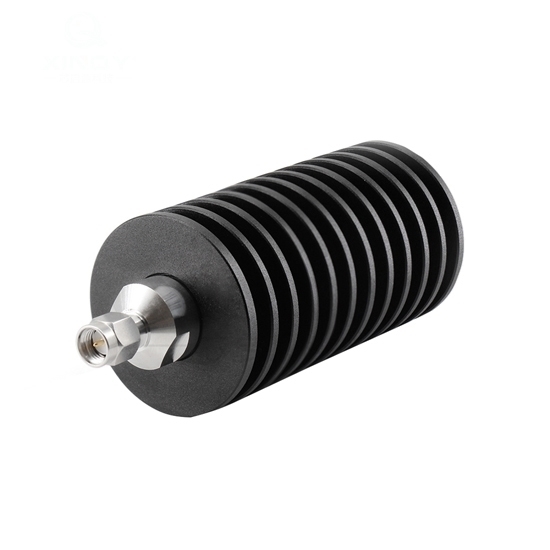

30dB 50W RF Fixed Attenuator, 50 Ohm

0 reviews • Write a review

from

$197.79

Ex Tax: $197.79

Stock: In Stock
Model: RDDLZ-RFFA-30DB50W
Weight: 1.00
SKU: RDDLZ-RFFA-30DB50W

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

30dB 50 watt fixed RF coaxial attenuators find applications in high-power scenarios, particularly in GPS systems where precise frequency control is crucial. By employing advanced electronic circuitry, they ensure accurate attenuation across a broad frequency range. Whether integrated into coaxial lines and microstrip circuits, fixed RF coax attenuators contribute to stable signal transmission, enabling efficient communication in diverse electronic environments.

Specification

Model: RDDLZ-SMAJKP-04-50W-30dB
Frequency Range (Optional): DC~4GHz
Standing Wave Ratio (VSWR): 1.20:1 (Max)
Attenuation Value: 30dB
Impedance: 50 Ohm
Average Input Power: 50W@25℃
Pick Power: 1kW (5μsce Pulse Width, 2% Duty Cycle)
A connector Type: SMA-Male
B connector type: SMA-Female
Directionality: SMA Male Input, SMA Female Output
Temperature Coefficient: ＜0.0004dB/℃
Working Temperature: -55℃~+100℃
Inner Conductor Material: Beryllium Bronze with Gold Plating
Outer Conductor Material: Brass Plated with Ternary Alloy
Heat Sink: Aluminum Alloy Black
Insulator: PTFE

Dimension (Unit: mm)

Tips: Are fixed RF attenuators specifically designed for high-frequency applications?

Yes, fixed RF attenuators are designed for high-frequency applications. These attenuators are passive devices used to reduce the power level of radio frequency (RF) signals while maintaining a consistent impedance. High-frequency applications, such as those in radio communication, radar systems, and wireless networks, demand precise control over signal strength. Fixed RF attenuators provide a predetermined level of attenuation, allowing engineers to tailor signal power without introducing unwanted reflections or impedance variations. They are crucial in optimizing signal integrity, preventing signal distortion, and ensuring proper functioning of high-frequency circuits. These attenuators come in various designs, including fixed resistor networks, pi-pad configurations, and T-attenuators, catering to the specific requirements of different high-frequency applications.
