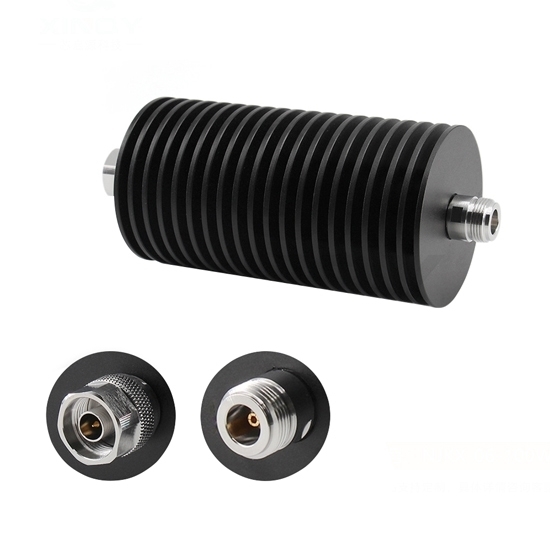

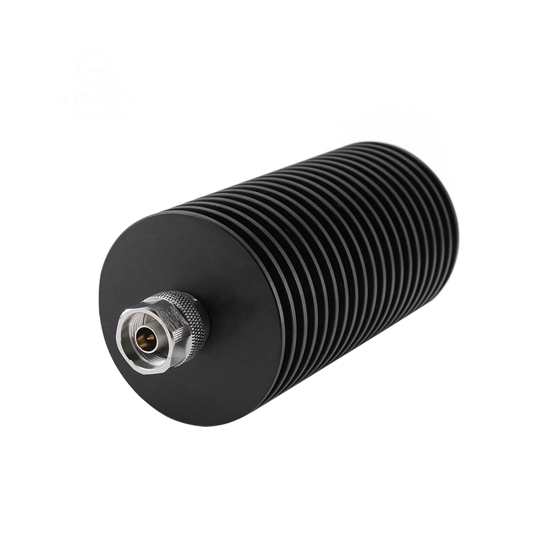

Typically designed as a coaxial device, the 100W fixed RF coaxial attenuator operates passively, minimizing signal power without introducing additional electronic components. The SMA attenuator, utilizing subminiature version A connectors, is a common choice for in-line applications due to its compact size and reliable performance.

Specification

• Model: RDDLZ-NJKP-06-100W-10dB
• Frequency Range (Optional): DC~6GHz
• Standing Wave Ratio (VSWR): 1.25:1 (Max)
• Attenuation Value: 10dB
• Impedance: 50 Ohm
• Average Input Power: 100W@25℃
• Pick Power: 5kW (5μsce Pulse Width, 0.5% Duty Cycle)
• A connector Type: N-Male
• B connector type: N-Female
• Directionality: N Male Input, N Female Output
• Temperature Coefficient: ＜0.0004dB/℃
• Working Temperature: -55℃~+100℃
• Inner Conductor Material: Beryllium Bronze with Gold Plating
• Outer Conductor Material: Brass Plated with Ternary Alloy
• Heat Sink: Aluminum Alloy Black
• Insulator: PTFE
• Net Weight: 561g

Dimension (Unit: mm)

Tips: What is an RF attenuator?

An RF attenuator is an electronic device designed to reduce the power level of radio frequency (RF) signals without significantly affecting their waveform. It plays a crucial role in controlling signal strength in various applications, such as communication systems, test and measurement setups, and radio equipment. Attenuators can be fixed or variable, allowing for precise adjustment of signal levels. They typically employ resistive components to dissipate energy and lower signal amplitudes. Variable attenuators often use variable resistors or electronic components to dynamically control attenuation levels. RF attenuators are essential for maintaining signal integrity, preventing distortion, and ensuring optimal performance within a specific operating range. They find use in scenarios where RF signals need fine-tuning or protection against excessive power, contributing to the overall stability and reliability of electronic systems.
